55A1121 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CABLE 2COND 22AWG WHITE SHLD 50'

Part	Length	Length [x]	Length [x]	Conductor Insulation	Spool Size	Spool Size	Conductor Strand [custom]	Conductor Strand	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Operating Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Voltage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Strand [custom]	Conductor Strand [diameter]	Conductor Strand [x]	Conductor Strand [y]	Conductor Strand [custom]	Conductor Strand [custom]
TE Connectivity Aerospace, Defense and Marine 55A1121-22-0/9-9	Enter Number of Feet in Order Quantity	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	Ethylene Tetrafluoroethylene (ETFE)	609.6 m	2000 '	19 Strands	34 AWG	Multi-Conductor	0.203 mm	0.008 in	1.52 m 15.24 m 300 mm	1 ft 5 '	150 °C	-65 ░C	150 °C	Copper Tinned	22 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	3.02 mm	0.119 in	85 %

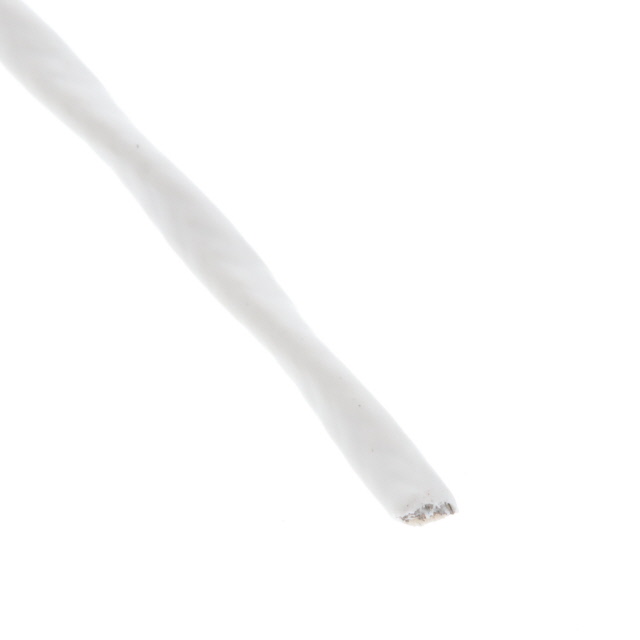

TE Connectivity Aerospace, Defense and Marine 55A1121-24-9/96-9CS2275	Enter Number of Feet in Order Quantity	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	Ethylene Tetrafluoroethylene (ETFE)	609.6 m	2000 '			Multi-Conductor	0.203 mm	0.008 in	1.52 m 15.24 m 300 mm	1 ft 5 '		-65 ░C	150 °C	Copper Tinned	24 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	2.72 mm	0.107 "	85 %
TE Connectivity Aerospace, Defense and Marine 55A1121-22-9/96-9CS2275		30.5 m 152.4 m	50 ft 100 ft 500 '	Ethylene Tetrafluoroethylene (ETFE)			19 Strands	34 AWG	Multi-Conductor	0.203 mm	0.008 in	1.52 m 15.24 m 300 mm	1 ft 5 '		-65 ░C	150 °C	Copper Tinned	22 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	3.02 mm	0.119 in	85 %
TE Connectivity Aerospace, Defense and Marine 55A1121-26-0/2-9		609.6 m	2000 ft	Ethylene Tetrafluoroethylene (ETFE)				19 38	Multi-Conductor	0.203 mm	0.008 in			150 °C			Copper Tinned	26 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	2.46 mm	0.097 in	85 %

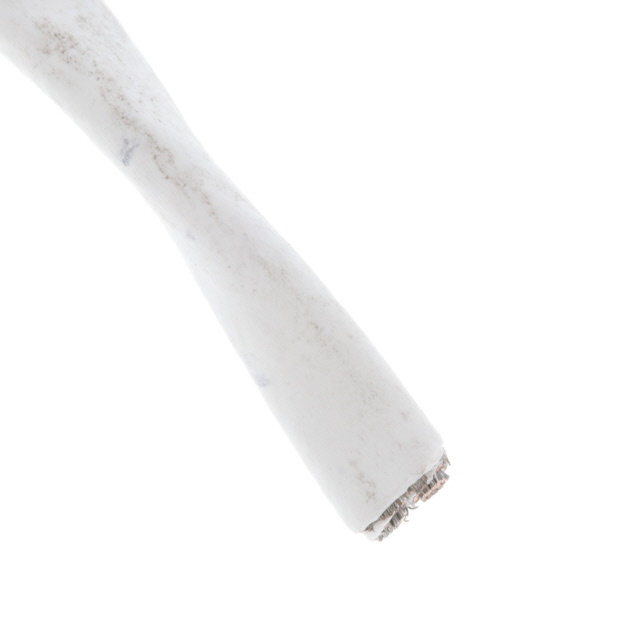

TE Connectivity Aerospace, Defense and Marine 55A1121-12-9/96-9CS2275		7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	Ethylene Tetrafluoroethylene (ETFE)			37		Multi-Conductor	0.229 mm	0.009 in	15.24 m 300 mm	1 ft	150 °C			Copper Tinned	12 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	6.17 mm	0.243 "	85 %	28 AWG
TE Connectivity Aerospace, Defense and Marine 55A1121-12-0/2-9							37		Multi-Conductor	0.229 mm	0.009 in				-65 ░C	150 °C	Copper Tinned	12 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	6.17 mm	0.243 "			0.0126 in
TE Connectivity Aerospace, Defense and Marine 55A1121-20-0/40-9									Multi-Conductor	0.203 mm	0.008 in				-65 ░C	150 °C	Copper Tinned	20 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	3.43 mm	0.135 in				19	0.008 "

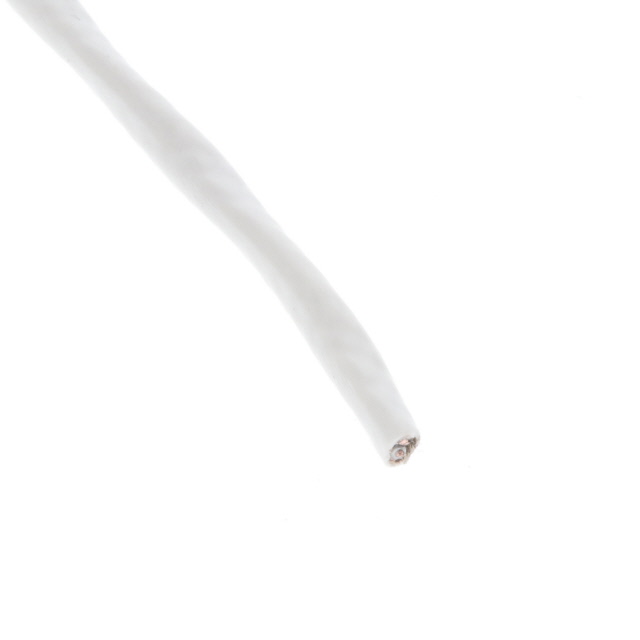

TE Connectivity Aerospace, Defense and Marine 55A1121-26-0/9-9		7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	Ethylene Tetrafluoroethylene (ETFE)				19 38	Multi-Conductor	0.203 mm	0.008 in	15.24 m 300 mm	1 ft		-65 ░C	150 °C	Copper Tinned	26 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	2.46 mm	0.097 in	85 %
TE Connectivity Aerospace, Defense and Marine 55A1121-16-9/96-9CS2826									Multi-Conductor	0.203 mm	0.008 in				-65 ░C	150 °C	Copper Tinned	16 AWG	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	2	600 V	Braid	4.34 mm	0.171 in						0.0113 in	19
