SSB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH SLIDE SPDT 0.4VA 20V

Part	Operating Force	Switch Travel	Actuator Material	Mechanical Life	Contact Finish	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mounting Type	Features	Voltage Rating - DC	Contact Material	Contact Timing	Current Rating (Amps)	Termination Style	Circuit	Actuator Length [x]	Actuator Type	Type	Small Diameter Recovered	Small Diameter Recovered	Color	Total Length Recovered [x]	Total Length Recovered [x]	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Supplied	Large Diameter Supplied	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Material	Total Length Supplied	Total Length Supplied
TE Connectivity AMP Connectors SSB12G	0.25 kgf	2 mm	Polyoxymethylene (Acetal) (POM)	10000 Steps	Gold	On-On	85 °C	-20 ░C	20 V	Through Hole	Epoxy Sealed Terminals	20 V	Copper Alloy	Shorting (MBB)	0.4 VA	PC Pin	SPDT	1.09 mm	Standard
TE Connectivity AMP Connectors SSB12RG	0.25 kgf	2 mm	Polyoxymethylene (Acetal) (POM)	10000 Steps	Gold	On-On	85 °C	-20 ░C	20 V	Right Angle Through Hole	Epoxy Sealed Terminals	20 V	Copper Alloy	Shorting (MBB)	0.4 VA	PC Pin	SPDT	4.29 mm	Standard
TE Connectivity AMP Connectors SSB22G	0.25 kgf	2 mm	Polyoxymethylene (Acetal) (POM)	10000 Steps	Gold	On-On	85 °C	-20 ░C	20 V	Through Hole	Epoxy Sealed Terminals	20 V	Copper Alloy	Shorting (MBB)	0.4 VA	PC Pin	DPDT		Standard
TE Connectivity AMP Connectors SSB-1202FR-CS-2065																				Boot Transition - Breakout 2:1
TE Connectivity AMP Connectors SSB-1202FR/ROUND-BASE/NS											Abrasion Resistant Corrosion Resistant Flame Retardant Round Base Weather Resistant									Boot Transition - Breakout 2:1	3.81 mm	0.15 in	Black	103.89 mm	4.09 in	50.8 mm	2 in	12.7 mm	0.5 in	40.64 mm	1.6 in	12.7 mm	0.5 in	Polyolefin (PO) Semi-Rigid	79.76 mm	3.14 in

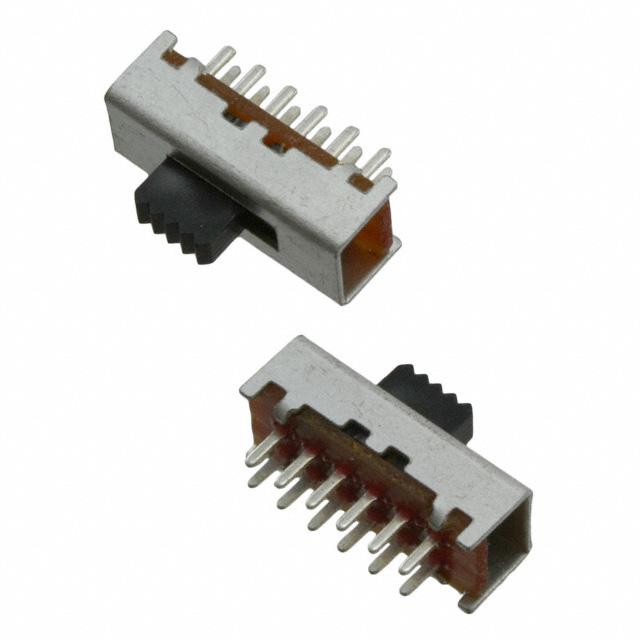

TE Connectivity AMP Connectors SSB42	0.25 kgf	2 mm	Polyoxymethylene (Acetal) (POM)	10000 Steps	Silver	On-On	85 °C	-20 ░C		Through Hole	Epoxy Sealed Terminals	30 V	Copper Alloy	Shorting (MBB)	100 mA	PC Pin	4PDT	3 mm	Standard

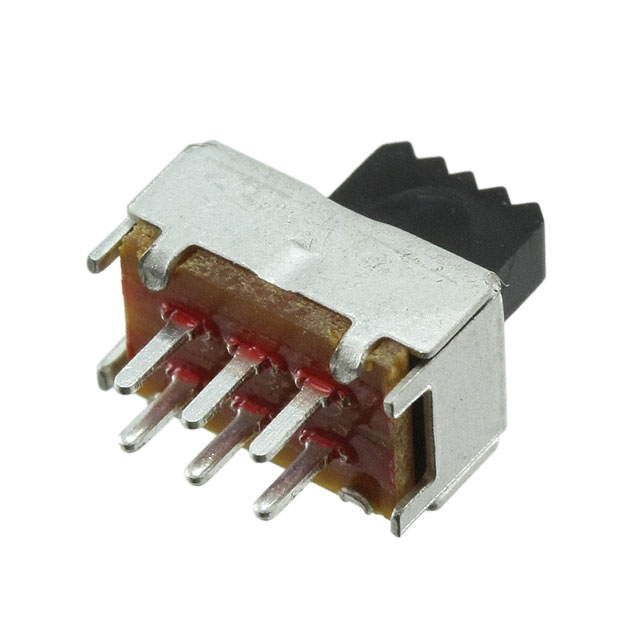

TE Connectivity AMP Connectors SSB22	0.25 kgf	2 mm	Polyoxymethylene (Acetal) (POM)	10000 Steps	Silver	On-On	85 °C	-20 ░C		Through Hole	Epoxy Sealed Terminals	30 V	Copper Alloy	Shorting (MBB)	100 mA	PC Pin	DPDT		Standard
TE Connectivity AMP Connectors SSB-1202FR/NM											Abrasion Resistant Adhesive Coating Corrosion Resistant Flame Retardant No Markings Weather Resistant									Boot Transition - Breakout 2:1	3.81 mm	0.15 in	Black	103.89 mm	4.09 in	50.8 mm	2 in	12.7 mm	0.5 in	40.64 mm	1.6 in	12.7 mm	0.5 in	Polyolefin (PO) Semi-Rigid	79.76 mm	3.14 in
TE Connectivity AMP Connectors SSB12	0.25 kgf	2 mm	Polyoxymethylene (Acetal) (POM)	10000 Steps	Silver	On-On	85 °C	-20 ░C		Through Hole	Epoxy Sealed Terminals	30 V	Copper Alloy	Shorting (MBB)	100 mA	PC Pin	SPDT	1.09 mm	Standard
TE Connectivity AMP Connectors SSB-1202FR											Abrasion Resistant Adhesive Coating Corrosion Resistant Flame Retardant Weather Resistant									Boot Transition - Breakout 2:1	3.81 mm	0.15 in	Black	103.89 mm	4.09 in	65.28 mm	2.57 in	12.7 mm	0.5 in	40.64 mm	1.6 in	12.7 mm	0.5 in	Polyolefin (PO) Semi-Rigid	79.76 mm	3.14 in
