725-012 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 12POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows [custom]	Pitch	Pitch	Color	Number of Positions/Bay/Row	Contact Finish	Contact Material	Gender	Read Out	Card Type	Card Thickness [Max]	Card Thickness [Min]	Termination	Termination Rows	Number of Rows

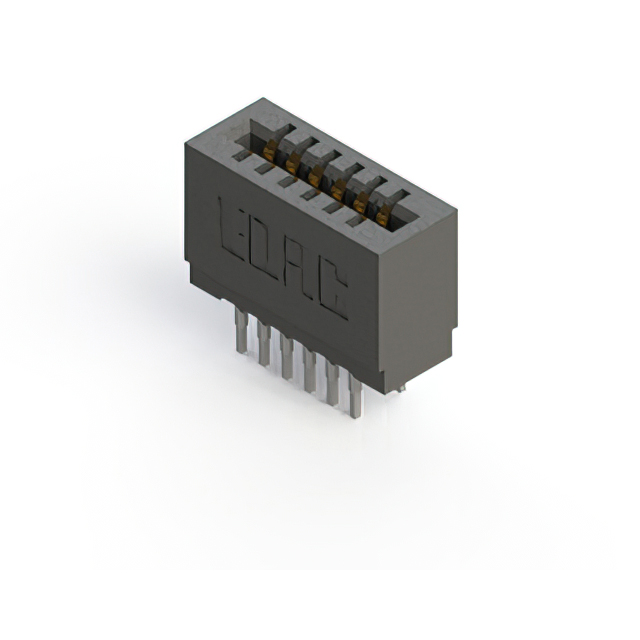

EDAC Inc. 725-012-545-201	Polyester Thermoplastic	2	Through Hole	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	12	2	0.1 "	2.54 mm	Black	6	Gold	Copper Alloy	Female	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap

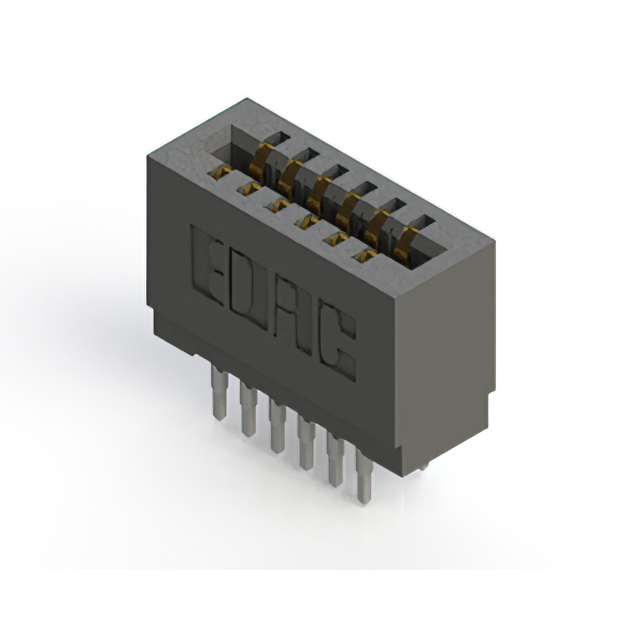

EDAC Inc. 725-012-560-201	Polyester Thermoplastic	2	Through Hole	Cantilever Make Before Break	-40 C	105 ░C	30 Áin	0.76 Ám	12	2	0.1 "	2.54 mm	Black	6	Gold	Copper Alloy	Female	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit

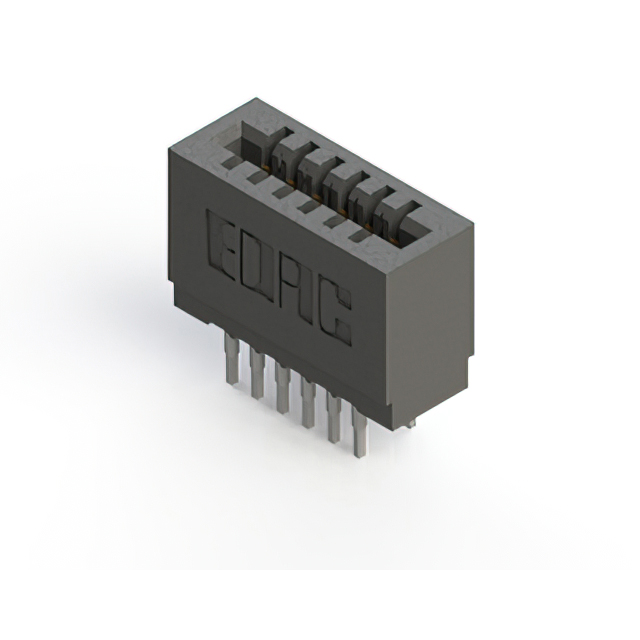

EDAC Inc. 725-012-522-201	Polyester Thermoplastic	2	Through Hole	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	12	2	0.1 "	2.54 mm	Black	6	Gold	Copper Alloy	Female	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit

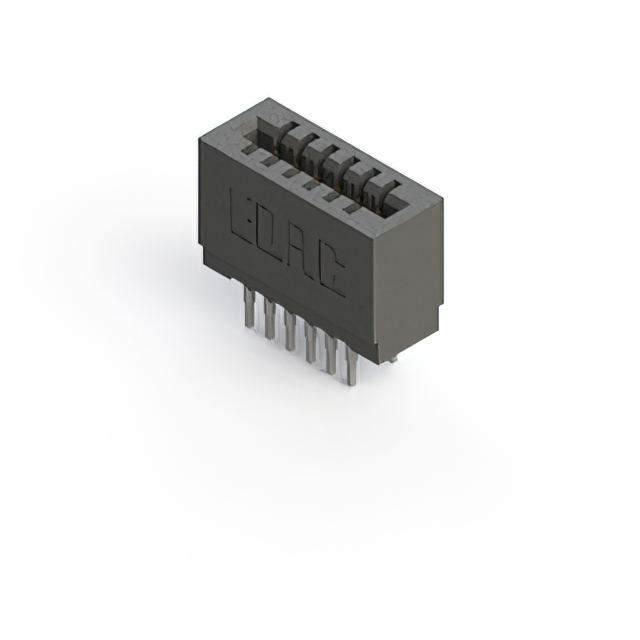

EDAC Inc. 725-012-541-201	Polyester Thermoplastic	2	Through Hole	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	12	2	0.1 "	2.54 mm	Black	6	Gold	Copper Alloy	Female	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap
EDAC Inc. 725-012-525-201	Polyester Thermoplastic	2	Through Hole	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	12	2	0.1 "	2.54 mm	Black	6	Gold	Copper Alloy	Female	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit

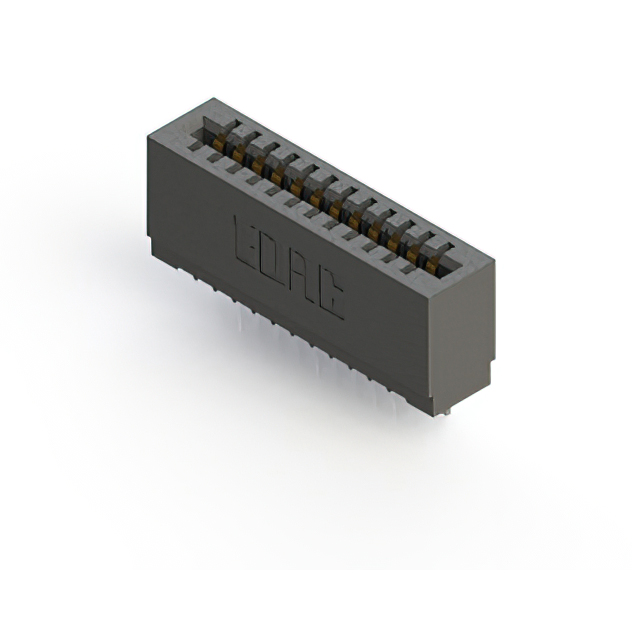

EDAC Inc. 725-012-545-101	Polyester Thermoplastic		Through Hole	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám	12		0.1 "	2.54 mm	Black	12	Gold	Copper Alloy	Female	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	1	1
