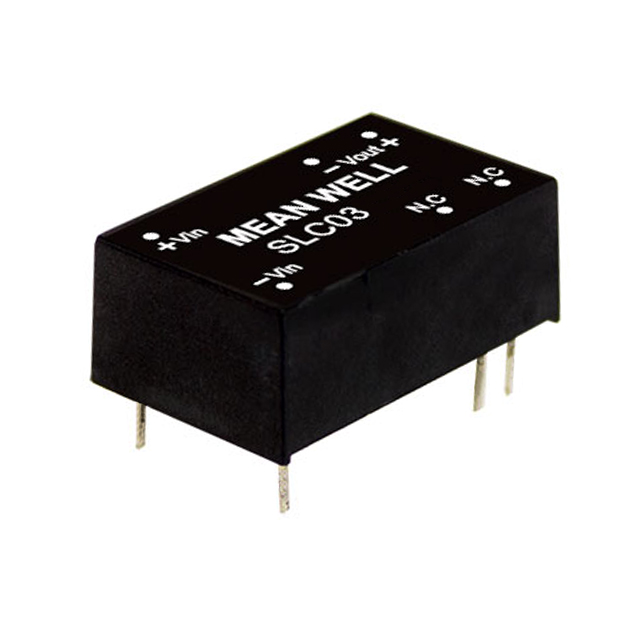

SLC03 Series

Catalog

DC DC CONVERTER 12V 3W

Part	Voltage - Output 1	Power (Watts)	Current - Output (Max) [Max]	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Isolation	Type	Mounting Type	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Efficiency
MEAN WELL USA Inc. SLC03B-12	12 V	3 W	250 mA	16-DIP Module 6 Leads	1	36 V	1.5 kV	Isolated Module	Through Hole	ITE (Commercial)	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	OCP SCP UVLO	-40 °C	85 °C	18 V
MEAN WELL USA Inc. SLC03A-05	5 V	3 W	600 mA	16-DIP Module 6 Leads	1	18 V	1.5 kV	Isolated Module	Through Hole	ITE (Commercial)	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	OCP SCP UVLO	-40 °C	85 °C	9 V	79 %
MEAN WELL USA Inc. SLC03B-05	5 V	3 W	600 mA	16-DIP Module 6 Leads	1	36 V	1.5 kV	Isolated Module	Through Hole	ITE (Commercial)	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	OCP SCP UVLO	-40 °C	85 °C	18 V	81 %
MEAN WELL USA Inc. SLC03B-15	15 V	3 W	200 mA	16-DIP Module 6 Leads	1	36 V	1.5 kV	Isolated Module	Through Hole	ITE (Commercial)	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	OCP SCP UVLO	-40 °C	85 °C	18 V
MEAN WELL USA Inc. SLC03A-15	15 V	3 W	200 mA	16-DIP Module 6 Leads	1	18 V	1.5 kV	Isolated Module	Through Hole	ITE (Commercial)	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	OCP SCP UVLO	-40 °C	85 °C	9 V	81 %
