NCP4306 Series

Secondary Side Synchronous Rectification Driver for High Efficiency SMPS Topologies

Catalog

Secondary Side Synchronous Rectification Driver for High Efficiency SMPS Topologies

Part	Supplier Device Package	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Current - Supply	Mounting Type	Supplied Contents	Utilized IC / Part	Type	Function	Contents	Package / Case [y]	Package / Case [x]
ON Semiconductor NCP4306AADZZZAMN1TBG	8-DFN (2x2.2)	Secondary-Side Controller Synchronous Rectifier	8-VFDFN Exposed Pad	-40 °C	125 ¯C	35 V	1.4 mA	Surface Mount

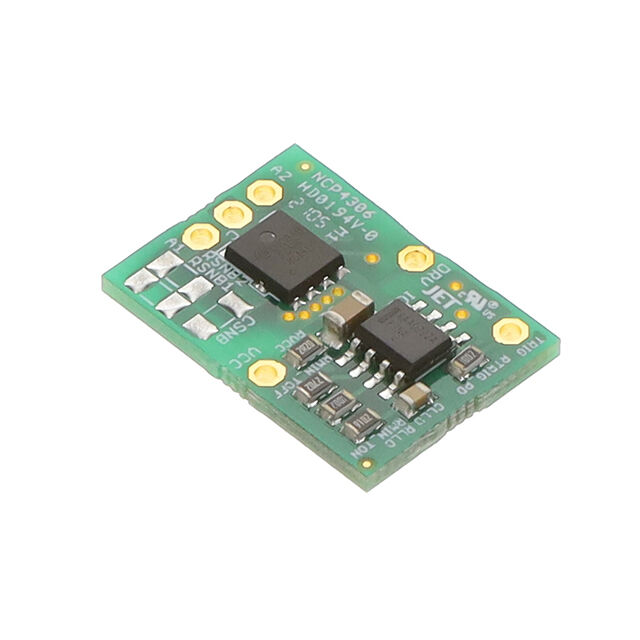

ON Semiconductor NCP4306FLY100GEVB									Board(s)	NCP4306	Power Management	Power Distribution Switch (Load Switch)	Board(s)
ON Semiconductor NCP4306AADZZZADR2G	8-SOIC	Secondary-Side Controller Synchronous Rectifier	8-SOIC	-40 °C	125 ¯C	35 V	1.4 mA	Surface Mount						3.9 mm	0.154 in
ON Semiconductor NCP4306FLY150GEVB									Board(s)	NCP4306	Power Management	Power Distribution Switch (Load Switch)	Board(s)
ON Semiconductor NCP4306AADZZZAMNTWG	8-DFN (4x4)	Secondary-Side Controller Synchronous Rectifier	8-VDFN Exposed Pad	-40 °C	125 ¯C	35 V	1.4 mA	Surface Mount
ON Semiconductor NCP4306AAAZZZADR2G	8-SOIC	Secondary-Side Controller Synchronous Rectifier	8-SOIC	-40 °C	125 ¯C	35 V	1.4 mA	Surface Mount						3.9 mm	0.154 in
ON Semiconductor NCP4306LLC60GEVB									Board(s)	NCP4306	Power Management	Power Distribution Switch (Load Switch)	Board(s)
ON Semiconductor NCP4306DADZZBASNT1G	6-TSOP	Secondary-Side Controller Synchronous Rectifier	SOT-23-6 Thin TSOT-23-6	-40 °C	125 ¯C	35 V	1.4 mA	Surface Mount
ON Semiconductor NCP4306AAHZZZADR2G	8-SOIC	Secondary-Side Controller Synchronous Rectifier	8-SOIC	-40 °C	125 ¯C	35 V	1.4 mA	Surface Mount						3.9 mm	0.154 in
ON Semiconductor NCP4306AAAZZZAMN1TBG	8-DFN (2x2.2)	Secondary-Side Controller Synchronous Rectifier	8-VFDFN Exposed Pad	-40 °C	125 ¯C	35 V	1.4 mA	Surface Mount
