PN12 Series

Catalog

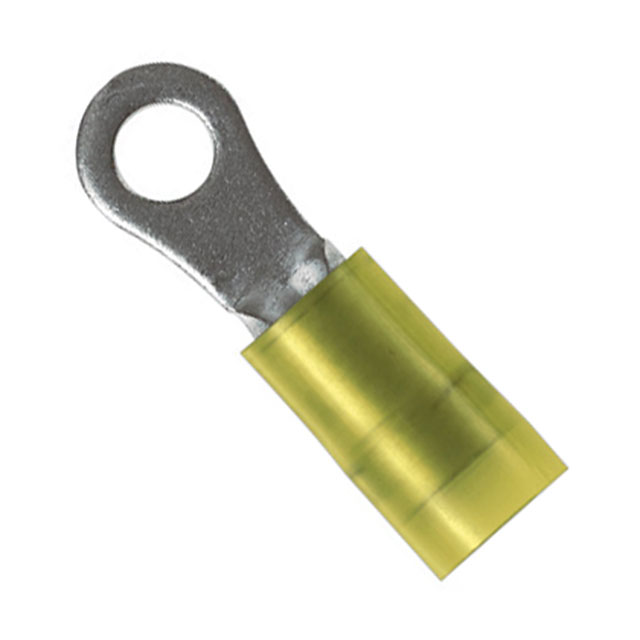

RING TONGUE TERMINAL, M4, #8, 12 AWG, 4 MM², PN-HDR SERIES, YELLOW

Part	Material - Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Features	Thickness	Thickness	Insulation	Contact Finish	Width - Outer Edges	Width - Outer Edges	Terminal Type	Termination	Mounting Type	Length - Overall	Length - Overall	Color	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]
Panduit Corp PN12-8HDR-D	Nylon Polyamide (PA)	5.84 mm	0.23 in	Copper	Heavy Duty Serrated Termination	50 mils	0.05 in	Insulated	Tin	7.87 mm	0.31 in	Circular	Crimp	Free Hanging (In-Line)	1.06 in	26.92 mm	Yellow	16 AWG	12 AWG	8 Stud
Panduit Corp PN12-14HDR-L	Nylon Polyamide (PA)	5.84 mm	0.23 in	Copper	Heavy Duty Serrated Termination	50 mils	0.05 in	Insulated	Tin	13.21 mm	0.52 in	Circular	Crimp	Free Hanging (In-Line)			Yellow	16 AWG	12 AWG	0.25 Stud	31.5 mm	1.24 in
Panduit Corp PN12-38HDR-D	Nylon Polyamide (PA)			Copper	Heavy Duty Serrated Termination	50 mils	0.05 in	Insulated	Tin			Circular	Crimp	Free Hanging (In-Line)			Yellow	16 AWG	12 AWG	0.375 Stud	33.02 mm	1.3 "	3.05 mm	0.225 in	0.12 "	5.72 mm	14.73 mm	0.58 in
Panduit Corp PN12-56HDR-L	Nylon Polyamide (PA)			Copper	Heavy Duty Serrated Termination	50 mils	0.05 in	Insulated	Tin	13.21 mm	0.52 in	Circular	Crimp	Free Hanging (In-Line)			Yellow	16 AWG	12 AWG	0.3125 Stud	31.5 mm	1.24 in	3.05 mm	0.225 in	0.12 "	5.72 mm
Panduit Corp PN12-10HDR-2K	Nylon Polyamide (PA)	5.84 mm	0.23 in	Copper	Heavy Duty Serrated Termination	50 mils	0.05 in	Insulated	Tin			Circular	Crimp	Free Hanging (In-Line)			Yellow	16 AWG	12 AWG	10 Stud	26.67 mm	1.05 in					9.65 mm	0.38 in
