7405-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

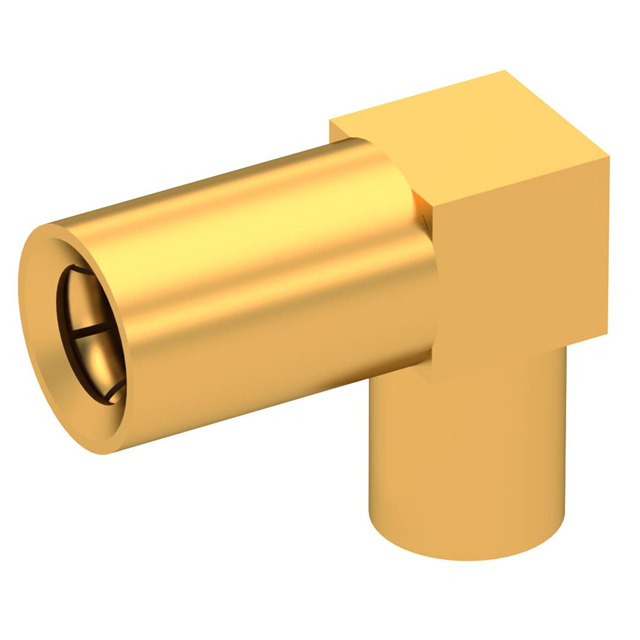

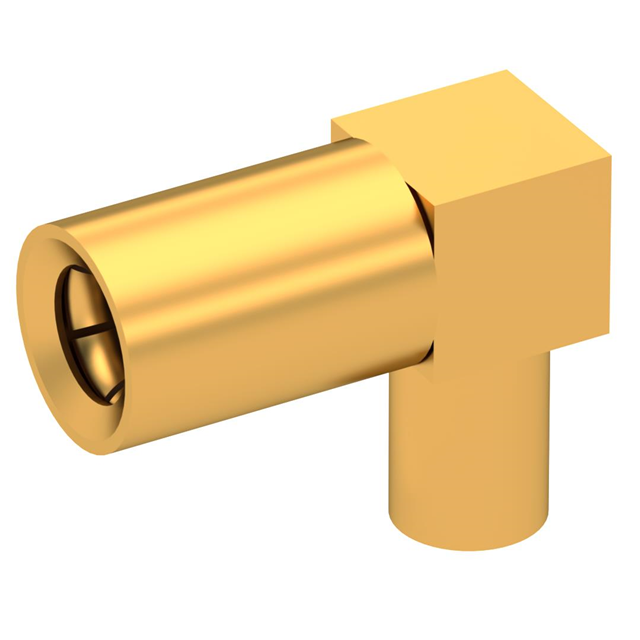

SSMB F RA NA CR 2.6/50S
| Part | Body Finish | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Dielectric Material | Center Contact Plating | Number of Ports | Mounting Type | Contact Termination | Housing Color | Cable Group | Cable Group | Connector Type | Connector Style | Frequency - Max [Max] | Fastening Type | Shield Termination | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 250 V | -65 ░C | 165 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Gold | 1 | Free Hanging (In-Line) Right Angle | Crimp | Gold | RG-174 | 316 | Female Socket Plug | SSMB | 12.4 GHz | Snap-On | Crimp | 50 Ohms | Beryllium Copper |
 Radiall USA, Inc. | Gold | 250 V | -65 ░C | 165 °C | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Gold | 1 | Free Hanging (In-Line) Right Angle | Crimp | Gold | RD-316 | Female Socket Plug | SSMB | 12.4 GHz | Snap-On | Crimp | 50 Ohms | Beryllium Copper | |
Radiall USA, Inc. | Gold | 250 V | -65 ░C | 165 °C | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Gold | 1 | Free Hanging (In-Line) Right Angle | Crimp | Gold | RG-178 | 196 | Female Socket Plug | SSMB | 12.4 GHz | Snap-On | Crimp | 50 Ohms | Beryllium Copper |
