MPG-22 Series

Catalog

CABLE GLAND 9.91-13.97MM PG16

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Material	Ingress Protection	Thread Size	Includes	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size

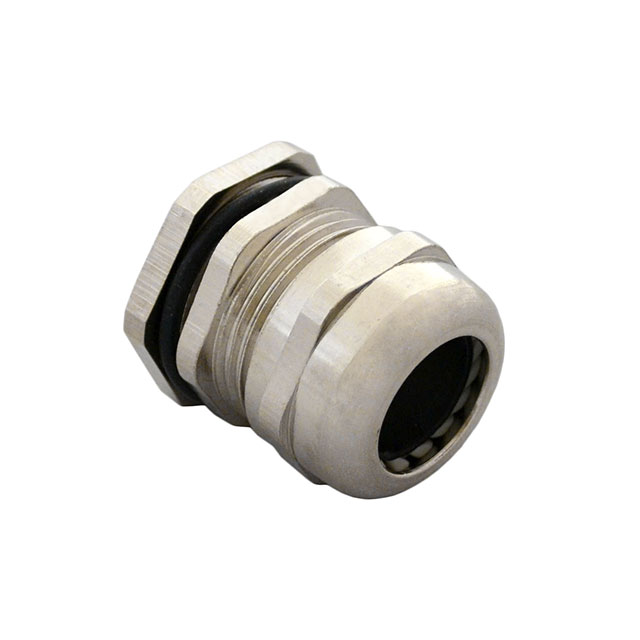

BUD INDUSTRIES MPG-22316	13.97 mm	0.55 in	Silver	-20 ░C	100 °C	0.39 in	9.91 mm	Brass Nickel Plated	IP68 - Dust Tight Waterproof	PG16	Gasket	Cable Gland

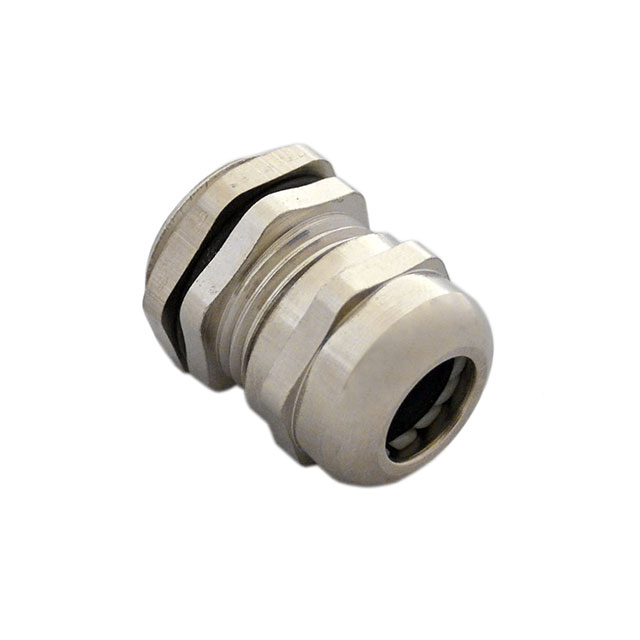

BUD INDUSTRIES MPG-22311			Silver	-20 ░C	100 °C	0.2 in	5.08 mm	Brass Nickel Plated	IP68 - Dust Tight Waterproof	PG11	Gasket	Cable Gland	0.39 in	9.91 mm	6.1 mm	0.24 in	0.73 in	18.5 mm
