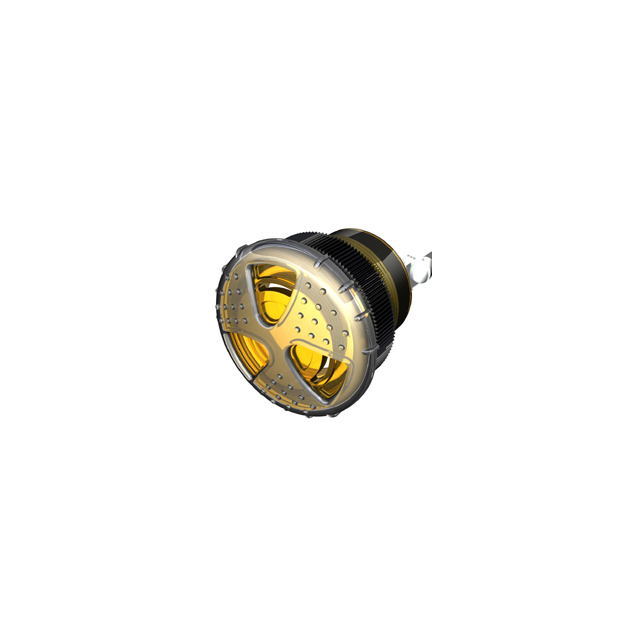

TLHT-V88Y Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 35.81MM PNL MNT
| Part | Termination | Termination | Termination | Port Location | Input Type | Ingress Protection | Frequency | Driver Circuitry | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Sound Pressure Level (SPL) | Operating Mode | Voltage Range [Max] | Voltage Range [Min] | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Quick Connect Tab | 0.25 " | 6.35 mm | Top | DC | IP68 - Dust Tight Waterproof | 2.9 kHz | Indicator Internally Driven | 50 mA | 110 mA | 103 dB | Staccato Tone | 30 V | 9 V | Panel Mount | 1.41 in | 35.81 mm | 1.25 " | 31.75 mm | UL UR |
 Floyd Bell Inc | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | Top | DC | IP68 - Dust Tight Waterproof | 2.9 kHz | Indicator Internally Driven | 50 mA | 110 mA | 103 dB | Staccato Tone | 30 V | 9 V | Panel Mount | 1.41 in | 35.81 mm | 1.25 " | 31.75 mm | UL UR |
