87264 Series

2.00mm Pitch Milli-Grid Receptacle, Side Entry, Through Hole, 0.76µm Gold (Au) Selective, 42 Circuits, Lead-Free

Manufacturer: Molex

Catalog

2.00mm Pitch Milli-Grid Receptacle, Side Entry, Through Hole, 0.76µm Gold (Au) Selective, 42 Circuits, Lead-Free

Part	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Applications	Connector Type	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Rows	Insulation Color	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Post	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Termination	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]
Molex 872642452

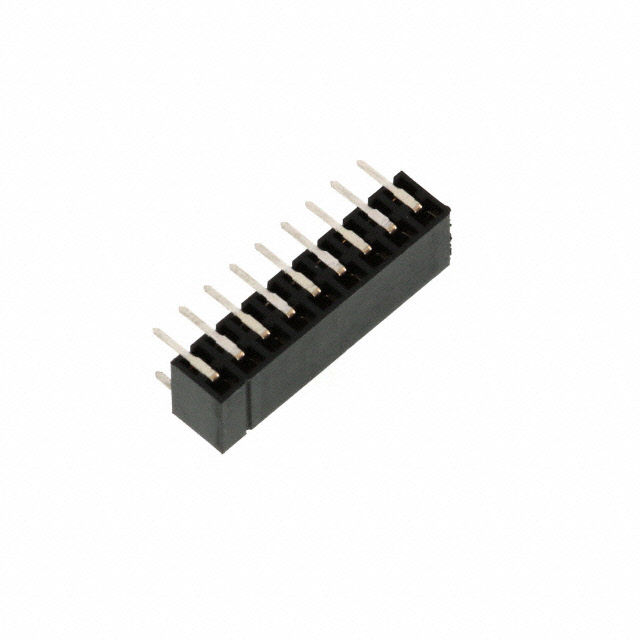

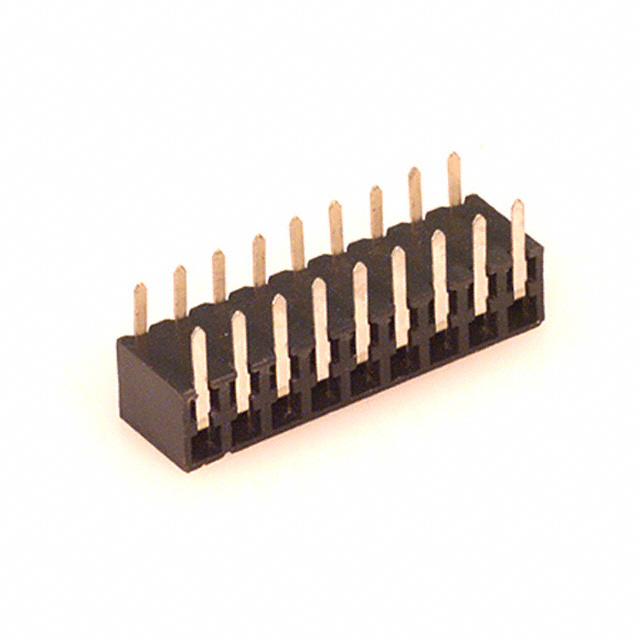

Molex 0872641852	Female Socket	15 µin	0.38 µm	Board to Board Cable	Automotive General Purpose Telecommunications	Receptacle	125 VAC	0.079 in	2 mm	105 ░C	-55 °C	18	2	Black	Square	2.54 µm	100 µin	Push-Pull	Tin	0.157 in	4 mm	All	Gold	2.54 mm	0.1 in	Solder	Through Hole Right Angle	0.079 in	2 mm

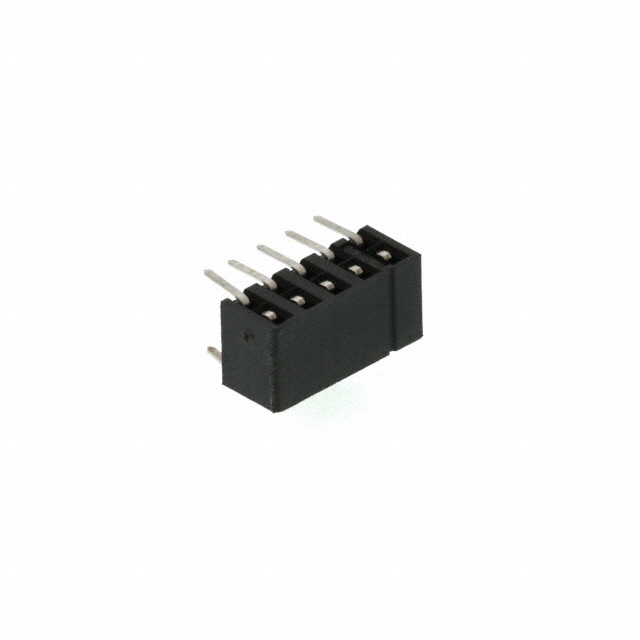

Molex 0872641052	Female Socket	15 µin	0.38 µm	Board to Board Cable	Automotive General Purpose Telecommunications	Receptacle	125 VAC	0.079 in	2 mm	105 ░C	-55 °C	10	2	Black	Square	2.54 µm	100 µin	Push-Pull	Tin	0.157 in	4 mm	All	Gold	2.54 mm	0.1 in	Solder	Through Hole Right Angle	0.079 in	2 mm

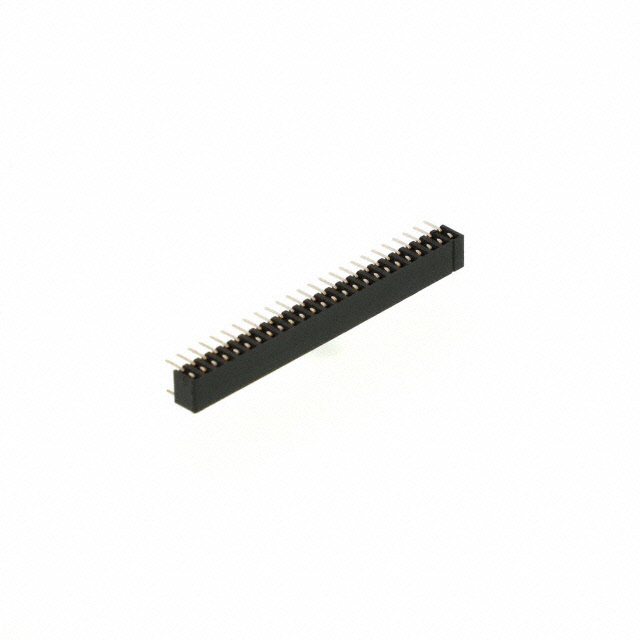

Molex 0872645052	Female Socket	15 µin	0.38 µm	Board to Board Cable	Automotive General Purpose Telecommunications	Receptacle	125 VAC	0.079 in	2 mm	105 ░C	-55 °C	50	2	Black	Square	2.54 µm	100 µin	Push-Pull	Tin	0.157 in	4 mm	All	Gold	2.54 mm	0.1 in	Solder	Through Hole Right Angle	0.079 in	2 mm

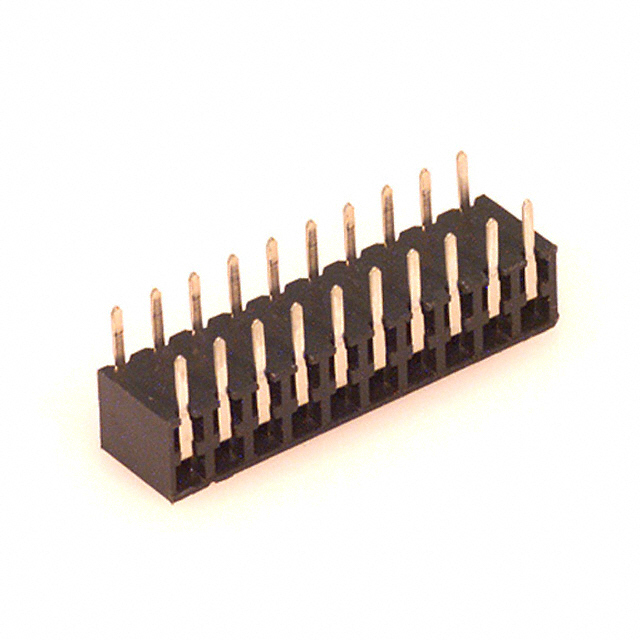

Molex 0872642052	Female Socket	15 µin	0.38 µm	Board to Board Cable	Automotive General Purpose Telecommunications	Receptacle	125 VAC	0.079 in	2 mm	105 ░C	-55 °C	20	2	Black	Square	2.54 µm	100 µin	Push-Pull	Tin	0.157 in	4 mm	All	Gold	2.54 mm	0.1 in	Solder	Through Hole Right Angle	0.079 in	2 mm

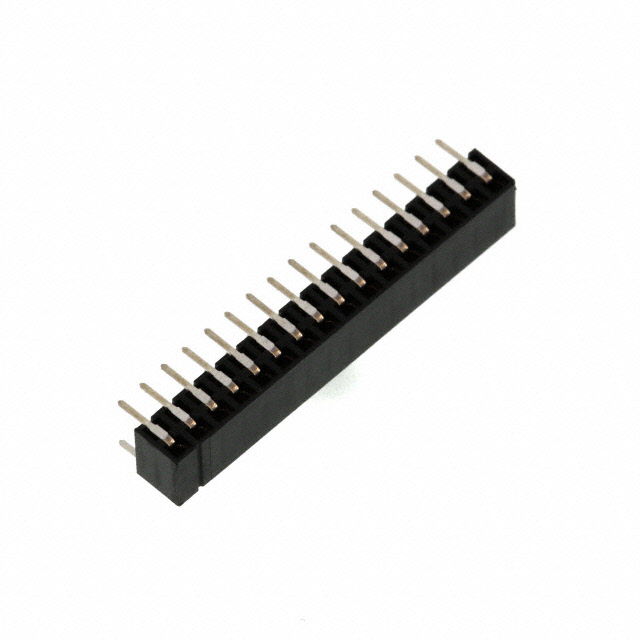

Molex 0872643252	Female Socket	15 µin	0.38 µm	Board to Board Cable	Automotive General Purpose Telecommunications	Receptacle	125 VAC	0.079 in	2 mm	105 ░C	-55 °C		2	Black	Square	2.54 µm	100 µin	Push-Pull	Tin	0.157 in	4 mm	All	Gold	2.54 mm	0.1 in	Solder	Through Hole Right Angle	0.079 in	2 mm

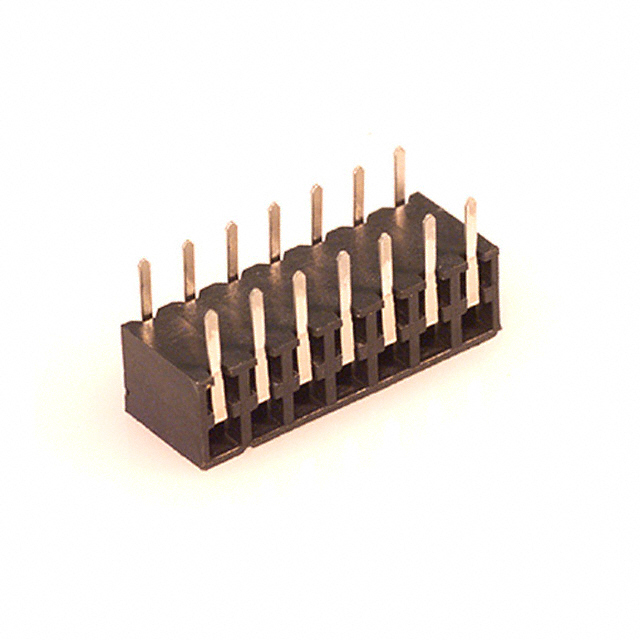

Molex 0872641452	Female Socket	15 µin	0.38 µm	Board to Board Cable	Automotive General Purpose Telecommunications	Receptacle	125 VAC	0.079 in	2 mm	105 ░C	-55 °C	14	2	Black	Square	2.54 µm	100 µin	Push-Pull	Tin	0.157 in	4 mm	All	Gold	2.54 mm	0.1 in	Solder	Through Hole Right Angle	0.079 in	2 mm
