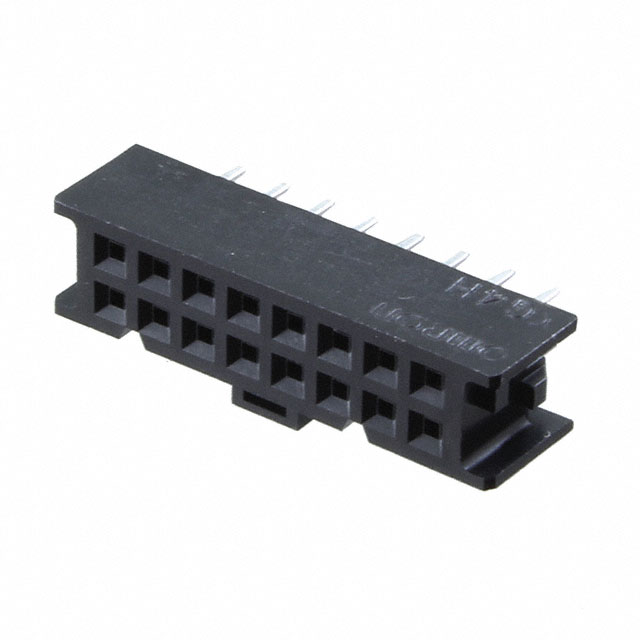

XG4H Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

CONN RCPT 64POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Material	Contact Shape	Contact Material	Mounting Type	Number of Positions Loaded	Insulation Color	Voltage Rating	Fastening Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Mated Stacking Heights	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Features	Contact Finish - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish - Post	Termination	Contact Length - Post	Contact Length - Post

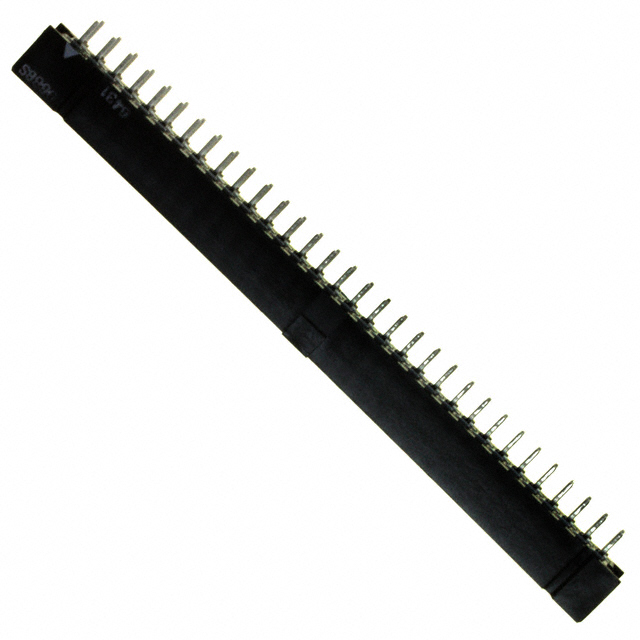

Omron Electronics Inc-EMC Div XG4H-6431	78.7 µin	2 µm	Polybutylene Terephthalate (PBT) Glass Filled	Square	Phosphor Bronze	Through Hole	All	Black	300 VAC	Latch Holder	3 A	0.1 in	2.54 mm	64	9.7 mm 10.1 mm	0.122 in	3.1 mm	Female Socket	Polarizing Key	Gold	0.283 in	7.19 mm	UL94 V-0	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	-55 C	105 ░C	2	Tin	Solder
Omron Electronics Inc-EMC Div XG4H-6471	78.7 µin	2 µm	Polybutylene Terephthalate (PBT) Glass Filled	Square	Phosphor Bronze	Through Hole	All	Black	300 VAC	Latch Holder	3 A	0.1 in	2.54 mm	64	9.7 mm 10.1 mm	0.122 in	3.1 mm	Female Socket	Polarizing Key	Gold	0.283 in	7.19 mm	UL94 V-0	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	-55 C	105 ░C	2	Tin	Solder
Omron Electronics Inc-EMC Div XG4H-1631	78.7 µin	2 µm	Polybutylene Terephthalate (PBT) Glass Filled	Square	Phosphor Bronze	Through Hole	All	Black	300 VAC	Latch Holder	3 A	0.1 in	2.54 mm	16	9.7 mm 10.1 mm	0.122 in	3.1 mm	Female Socket	Polarizing Key	Gold	0.283 in	7.19 mm	UL94 V-0	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	-55 C	105 ░C	2	Tin	Solder

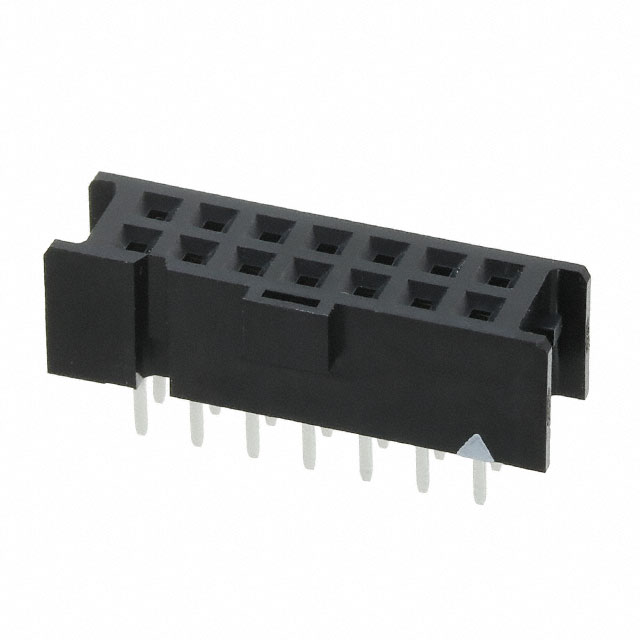

Omron Electronics Inc-EMC Div XG4H-1431	78.7 µin	2 µm	Polybutylene Terephthalate (PBT) Glass Filled	Square	Phosphor Bronze	Through Hole	All	Black	300 VAC	Latch Holder	3 A	0.1 in	2.54 mm	14	9.7 mm 10.1 mm	0.122 in	3.1 mm	Female Socket	Polarizing Key	Gold	0.283 in	7.19 mm	UL94 V-0	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	-55 C	105 ░C	2	Tin	Solder

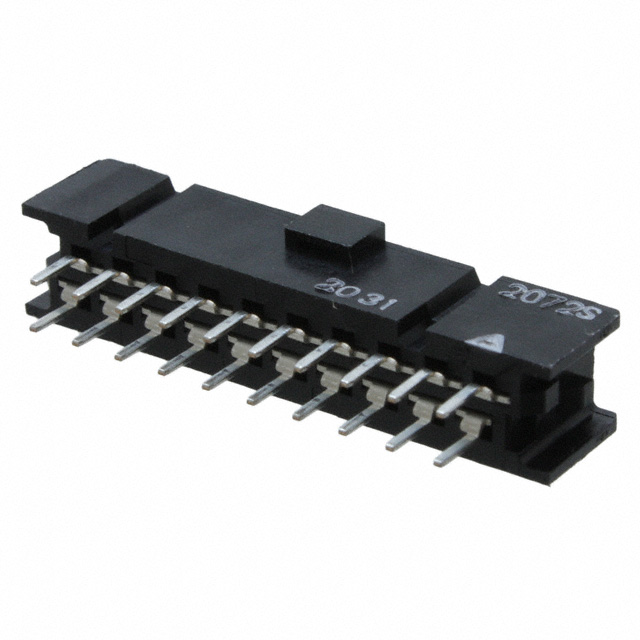

Omron Electronics Inc-EMC Div XG4H-2031	78.7 µin	2 µm	Polybutylene Terephthalate (PBT) Glass Filled	Square	Phosphor Bronze	Through Hole	All	Black	300 VAC	Latch Holder	3 A	0.1 in	2.54 mm	20	9.7 mm 10.1 mm	0.122 in	3.1 mm	Female Socket	Polarizing Key	Gold	0.283 in	7.19 mm	UL94 V-0	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	-55 C	105 ░C	2	Tin	Solder

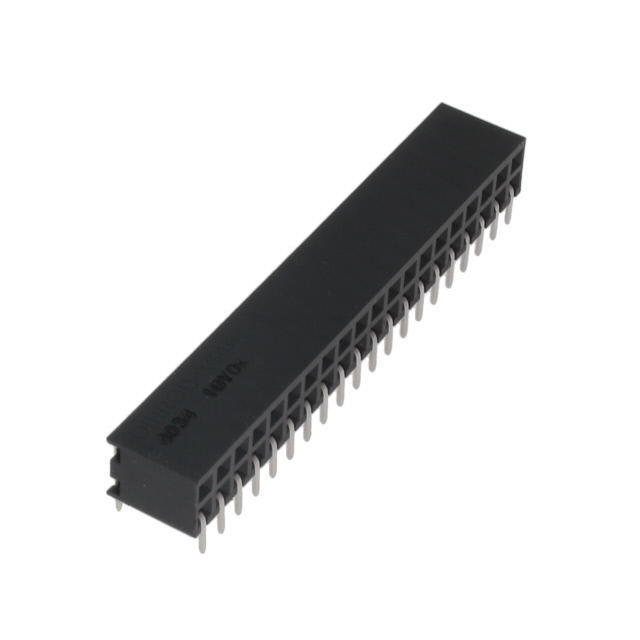

Omron Electronics Inc-EMC Div XG4H-4034	78.7 µin	2 µm	Polybutylene Terephthalate (PBT) Glass Filled	Square	Phosphor Bronze	Right Angle Through Hole	All	Black	300 VAC	Latch Holder	3 A	0.1 in	2.54 mm	40				Female Socket		Gold	0.246 in	6.25 mm	UL94 V-0	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	-55 C	105 ░C	2	Tin	Solder	0.115 in	2.92 mm
Omron Electronics Inc-EMC Div XG4H-3031	78.7 µin	2 µm	Polybutylene Terephthalate (PBT) Glass Filled	Square	Phosphor Bronze	Through Hole	All	Black	300 VAC	Latch Holder	3 A	0.1 in	2.54 mm	30	9.7 mm 10.1 mm	0.122 in	3.1 mm	Female Socket	Polarizing Key	Gold	0.283 in	7.19 mm	UL94 V-0	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	-55 C	105 ░C	2	Tin	Solder
