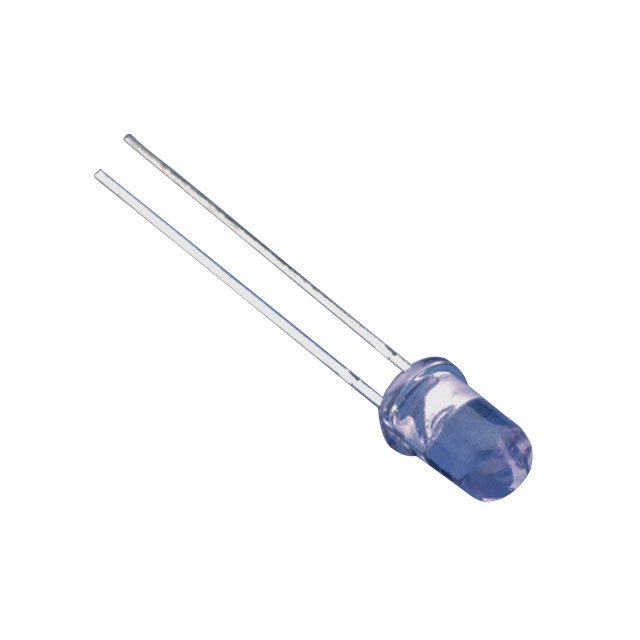

VTE1291 Series
Manufacturer: Excelitas Technologies
Beta
⌘K
IR LED DIODE CW-PULSD 3.3MW/CM2
| Part | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Radiant Intensity (Ie) Min @ If [Min] | Mounting Type | Voltage - Forward (Vf) (Typ) | Package / Case | Viewing Angle | Current - DC Forward (If) (Max) [Max] | Type | Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Excelitas Technologies | Top View | -40 °C | 100 °C | 32 mW/sr | Through Hole | 1.5 V | Radial | 24 ° | 100 mA | Infrared (IR) | 880 nm |
Excelitas Technologies | Top View | -40 °C | 100 °C | 65 mW/sr | Through Hole | 1.5 V | Radial | 24 ° | 100 mA | Infrared (IR) | 880 nm |
