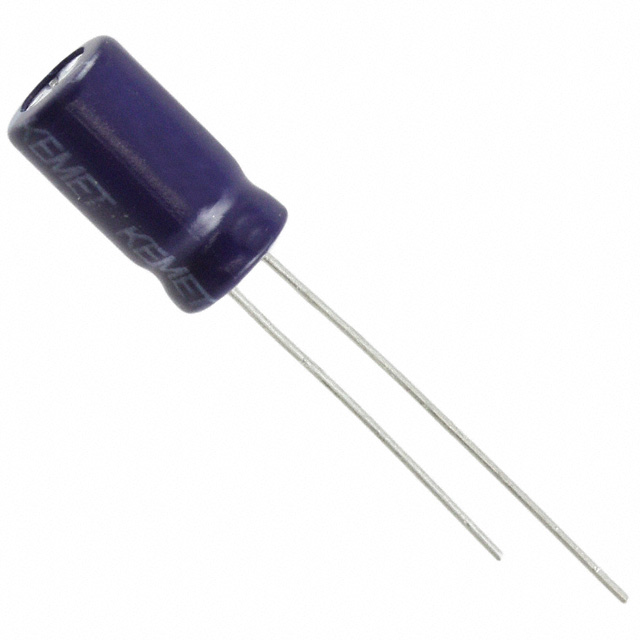

ESK106M Series

Manufacturer: KEMET

Catalog

CAP ALUM 10UF 20% 400V RADIAL TH

Part	Ripple Current @ Low Frequency	Voltage - Rated	Applications	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Polarization	Lifetime @ Temp.	Tolerance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]

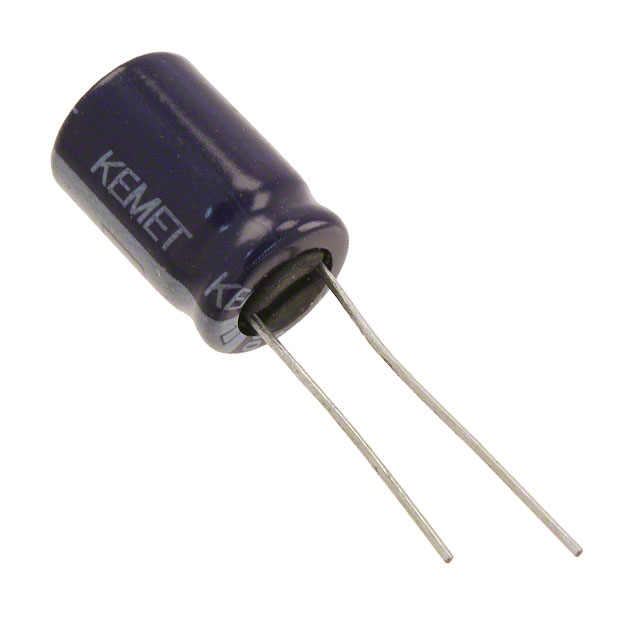

KEMET ESK106M400AH2EA	50 mA	400 V	General Purpose	10 µF	0.394 in	10 mm	Can Radial	0.197 "	5 mm	Through Hole	85 °C	-25 °C	0.669 "	17 mm	Polar	2000 Hrs	20 %
KEMET ESK106M350AH2AA	70 mA	350 V	General Purpose	10 µF	0.394 in	10 mm	Can Radial	0.197 "	5 mm	Through Hole	85 °C	-25 °C	0.669 "	17 mm	Polar	2000 Hrs	20 %	98 mA

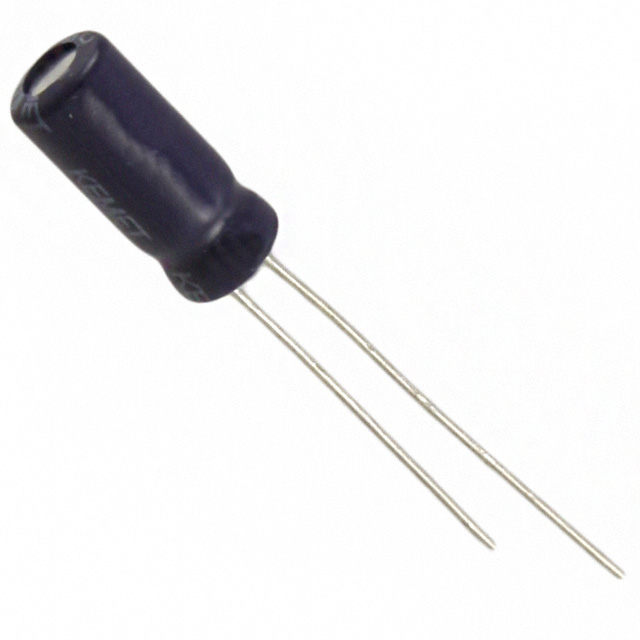

KEMET ESK106M010AC3AA	35 mA	10 V	General Purpose	10 µF	0.197 in	5 mm	Can Radial	0.079 in	2 mm	Through Hole	85 °C	-40 C		0.492 in	Polar	2000 Hrs	20 %	52.5 mA	12.5 mm
KEMET ESK106M050AC3DA	65 mA	50 VDC	General Purpose	10 µF	0.197 in	5 mm	Can Radial	0.079 in	2 mm	Through Hole	85 °C	-40 C		0.492 in	Polar	2000 Hrs	20 %	97.5 mA	12.5 mm
KEMET ESK106M063AC3AA	70 mA	63 V	General Purpose	10 µF	0.197 in	5 mm	Can Radial	0.079 in	2 mm	Through Hole	85 °C	-40 C		0.492 in	Polar	2000 Hrs	20 %	105 mA	12.5 mm
KEMET ESK106M063AC3FA	70 mA	63 V	General Purpose	10 µF	0.197 in	5 mm	Can Radial	0.098 in	2.5 mm	Through Hole	85 °C	-40 C		0.492 in	Polar	2000 Hrs	20 %	105 mA	12.5 mm
KEMET ESK106M100AE3EA	75 mA	100 V	General Purpose	10 µF	0.248 "	6.3 mm	Can Radial	0.098 in	2.5 mm	Through Hole	85 °C	-40 C		0.492 in	Polar	2000 Hrs	20 %	112.5 mA	12.5 mm
KEMET ESK106M016AC3KA	40 mA	16 V	General Purpose	10 µF	0.197 in	5 mm	Can Radial	0.079 in	2 mm	Through Hole	85 °C	-40 C		0.492 in	Polar	2000 Hrs	20 %	60 mA	12.5 mm
