VG.ECI Series

Catalog

GEARMOTOR 976 RPM 24V

Part	Gear Reduction Ratio	Voltage - Rated	RPM	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Motor Type	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Type	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Termination Style	Length - Shaft and Bearing	Length - Shaft and Bearing

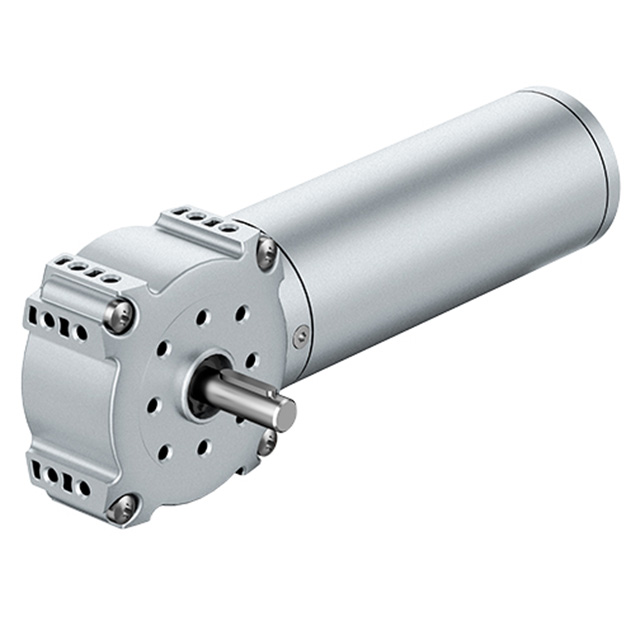

ebm-papst Inc. VG.ECI4240BK1.EC52.1.4	4.1	24 VDC	976 RPM	0.315 in	8 mm	0.984 in	25 mm	Brushless (BLDC)	40 °C	42 mm	Round	1.654 "	DC Motor	36 mm	1.417 in	127.8 oz-in	902 mNm

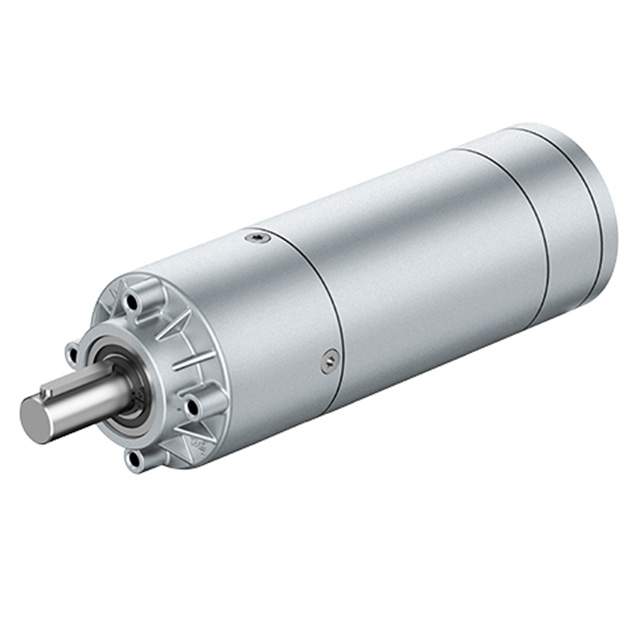

ebm-papst Inc. VG.ECI6340BK1.P63.1.5	5	24 VDC	800 RPM	0.591 in	15 mm	1.535 "	39 mm	Brushless (BLDC)	40 °C	63 mm	Round	2.48 in	DC Motor	52 mm	2.047 in	474.5 oz-in	3350 mNm	Wire Leads

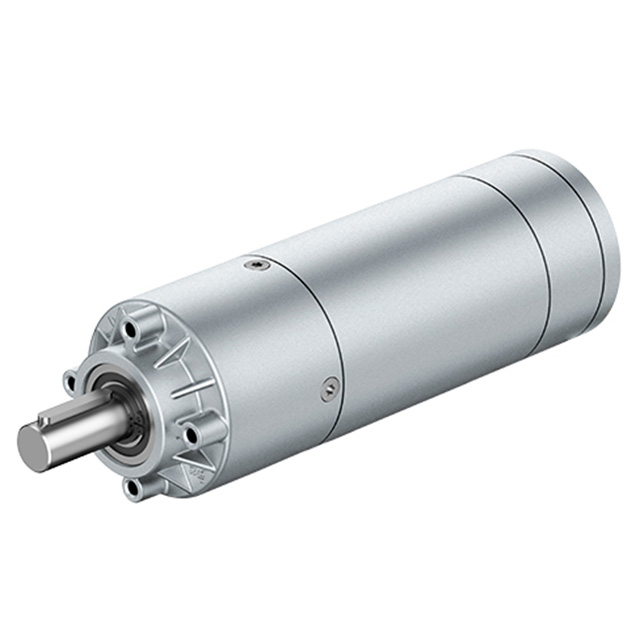

ebm-papst Inc. VG.ECI6360DK1.PP63.1.5	5	48 VDC	800 RPM	0.591 in	15 mm	1.535 "	39 mm	Brushless (BLDC)	40 °C	63 mm	Round	2.48 in	DC Motor	52 mm	2.047 in	623.3 oz-in	4400 mNm	Wire Leads

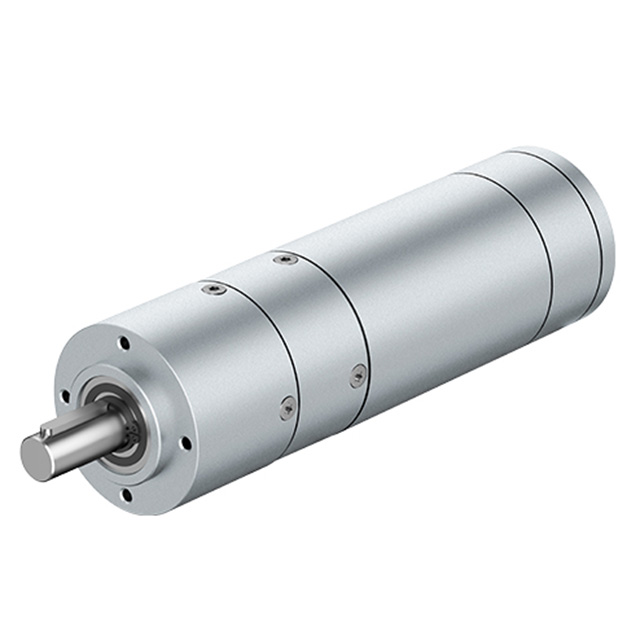

ebm-papst Inc. VG.ECI6360DK1.PP63.2.30	30	48 VDC	133 RPM	0.591 in	15 mm	1.535 "	39 mm	Brushless (BLDC)	40 °C	63 mm	Round	2.48 in	DC Motor	52 mm	2.047 in	3739 oz-in	26400 mNm	Wire Leads

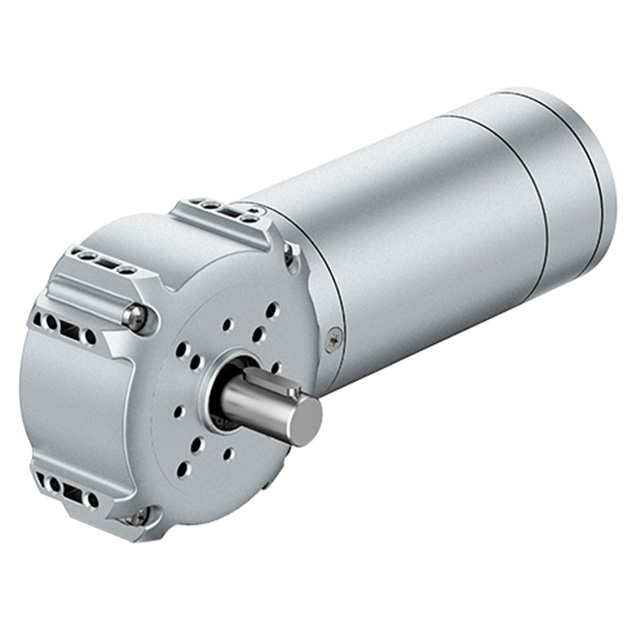

ebm-papst Inc. VG.ECI6340BK1.EC75.1.4	4.1	24 VDC	976 RPM	0.591 in	15 mm			Brushless (BLDC)	40 °C	63 mm	Round	2.48 in	DC Motor	52 mm	2.047 in	389.1 oz-in	2747 mNm	Wire Leads	1.181 in	30 mm

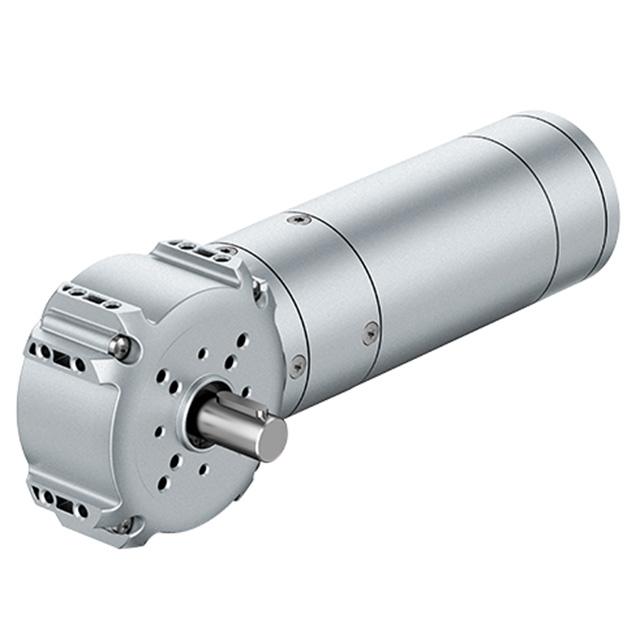

ebm-papst Inc. VG.ECI6340BK1.EC75.2.33	33.3	24 VDC	120 RPM	0.591 in	15 mm			Brushless (BLDC)	40 °C	63 mm	Round	2.48 in	DC Motor	52 mm	2.047 in	3160 oz-in	22311 mNm	Wire Leads	1.181 in	30 mm
