M40-320 Series

Catalog

CONNECTOR, HEADER, 20POS, 2ROW, 1MM

Part	Contact Finish - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Positions	Shrouding	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Insulation Material	Number of Rows [custom]	Number of Positions Loaded	Connector Type	Features	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Termination	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating

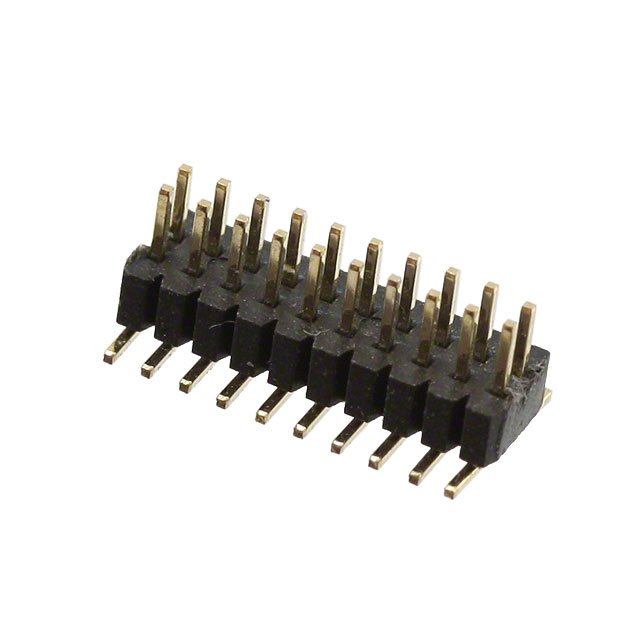

Harwin Inc. M40-3201045R	Gold	Push-Pull	1.8 mm	0.071 in	Brass	20	Unshrouded	1 mm	0.039 in	Square	0.059 in	1.5 mm	Flash	Glass Filled Nylon 6T Polyamide (PA6T)	2	All	Header	Board Guide Pick and Place	Black	0.039 in	1 mm	Solder	Surface Mount	Male Pin	-40 C	105 ░C	UL94 V-0

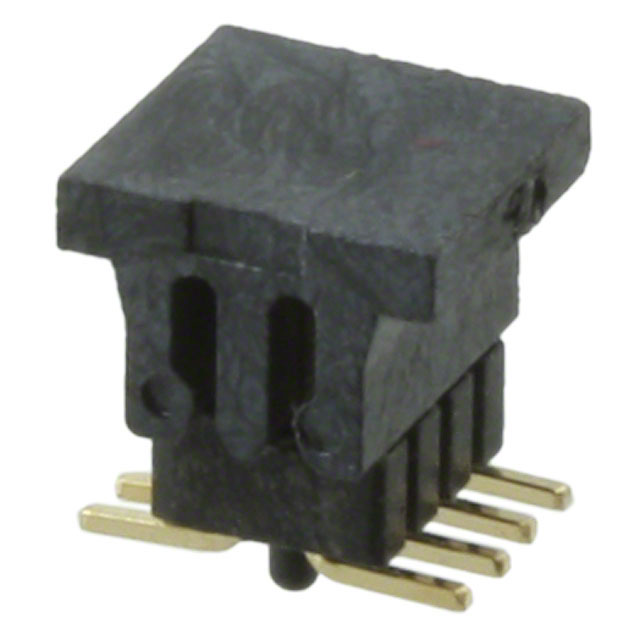

Harwin Inc. M40-3200445R	Gold	Push-Pull	1.8 mm	0.071 in	Brass	8	Unshrouded	1 mm	0.039 in	Square	0.059 in	1.5 mm	Flash	Glass Filled Nylon 6T Polyamide (PA6T)	2	All	Header	Board Guide Pick and Place	Black	0.039 in	1 mm	Solder	Surface Mount	Male Pin	-40 C	105 ░C	UL94 V-0
Harwin Inc. M40-3200345R	Gold	Push-Pull	1.8 mm	0.071 in	Brass	6	Unshrouded	1 mm	0.039 in	Square	0.059 in	1.5 mm	Flash	Glass Filled Nylon 6T Polyamide (PA6T)	2	All	Header	Board Guide Pick and Place	Black	0.039 in	1 mm	Solder	Surface Mount	Male Pin	-40 C	105 ░C	UL94 V-0

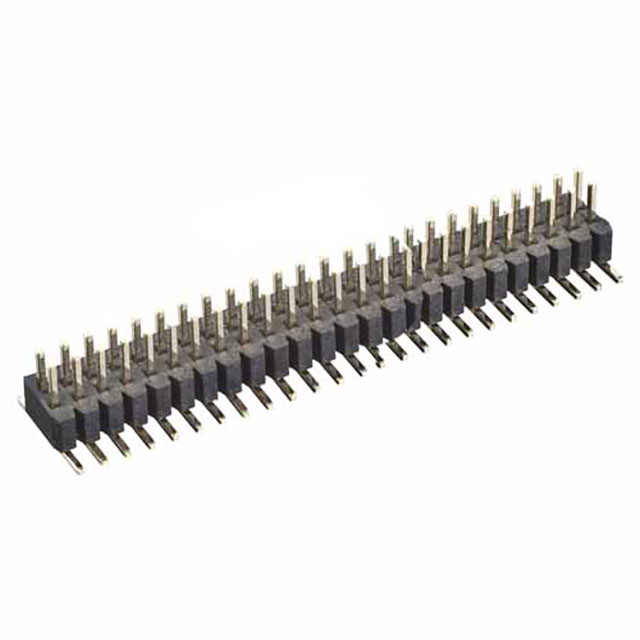

Harwin Inc. M40-3202545R	Gold	Push-Pull	1.8 mm	0.071 in	Brass	50	Unshrouded	1 mm	0.039 in	Square	0.059 in	1.5 mm	Flash	Glass Filled Nylon 6T Polyamide (PA6T)	2	All	Header	Board Guide Pick and Place	Black	0.039 in	1 mm	Solder	Surface Mount	Male Pin	-40 C	105 ░C	UL94 V-0
