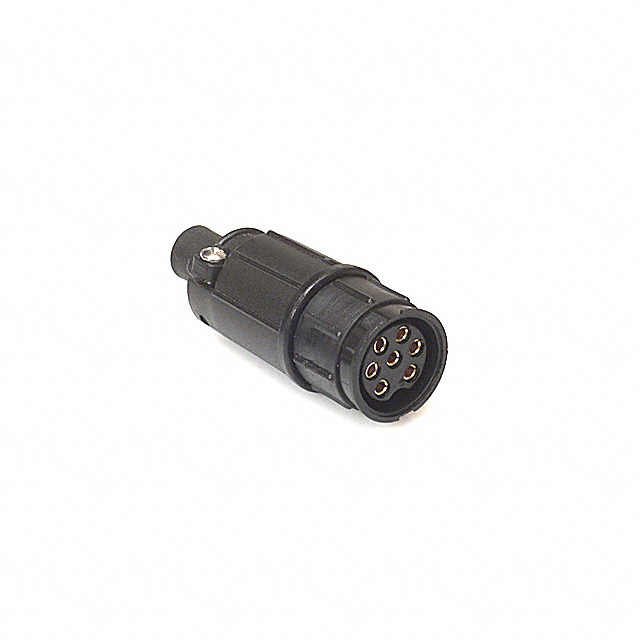

15182-7SG Series
Manufacturer: Conxall/Switchcraft
Beta
⌘K
CONN RCPT FMALE 7P GOLD SLDR CUP
| Part | Mounting Type | Contact Material | Voltage Rating | Features | Contact Finish - Mating | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Fastening Type | Orientation | Shielding | Backshell Material, Plating | Ingress Protection | Number of Positions | Connector Type | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conxall/Switchcraft | Free Hanging (In-Line) | Brass | 600 V | Backshell Cable Clamp | Gold | 0.26 in | 7.62 mm | 0.3 in | 6.6 mm | Bayonet Lock | Keyed | Unshielded | Nylon Polyamide (PA) | Weathertight | 7 | Receptacle Female Sockets | Plastic | -40 °C | 115 °C | Black | |||||||
Conxall/Switchcraft | Free Hanging (In-Line) | Brass | 600 V | Backshell Cable Clamp | Gold | Bayonet Lock | Keyed | Unshielded | Nylon Polyamide (PA) | Weathertight | 7 | Receptacle Female Sockets | Plastic | -40 °C | 115 °C | Black | 9.65 mm | 0.31 in 0.38 in | 7.87 mm | ||||||||
Conxall/Switchcraft | Free Hanging (In-Line) | Brass | 600 V | Backshell Cable Clamp | Gold | Bayonet Lock | Keyed | Unshielded | Nylon Polyamide (PA) | Weathertight | 7 | Receptacle Female Sockets | Plastic | -40 °C | 115 °C | Black | 0.21 in | 5.33 mm | 6.35 mm | 0.25 in |
