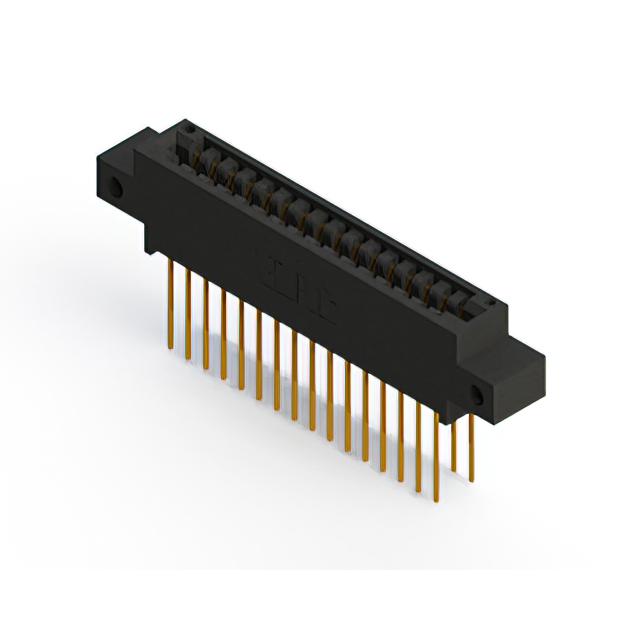

396-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 32POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Pitch | Pitch | Mounting Type | Card Type | Contact Finish | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Read Out | Termination | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Color | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Board Edge Straddle Mount | Non Specified - Dual Edge | Gold | 16 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Female | Dual | Solder | Card Extender | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Through Hole | Non Specified - Dual Edge | Gold | 16 | -40 C | 105 ░C | Female | Dual | Solder | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Through Hole | Non Specified - Dual Edge | Gold | 16 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | -40 C | 105 ░C | Female | Dual | Solder | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Right Angle Through Hole | Non Specified - Dual Edge | Gold | 16 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | Dual | Solder Wire Wrap | Card Guides | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Through Hole | Non Specified - Dual Edge | Gold | 16 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Female | Dual | Wire Wrap | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Through Hole | Non Specified - Dual Edge | Gold | 16 | M3 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | Dual | Solder | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Through Hole | Non Specified - Dual Edge | Gold | 16 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | Dual | Wire Wrap | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Through Hole | Non Specified - Dual Edge | Gold | 16 | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Female | Dual | Wire Wrap | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | Through Hole | Non Specified - Dual Edge | Gold | 16 | Flush Mount M3 Threaded Insert Top Opening | -40 C | 105 ░C | Female | Dual | Wire Wrap | 0.25 Ám | 10 Áin | 2 | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | Right Angle Through Hole | Non Specified - Single Edge | Gold | 32 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Female | Single | Solder Wire Wrap | 0.25 Ám | 10 Áin | Black | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 1 | 1 |
