1827159 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

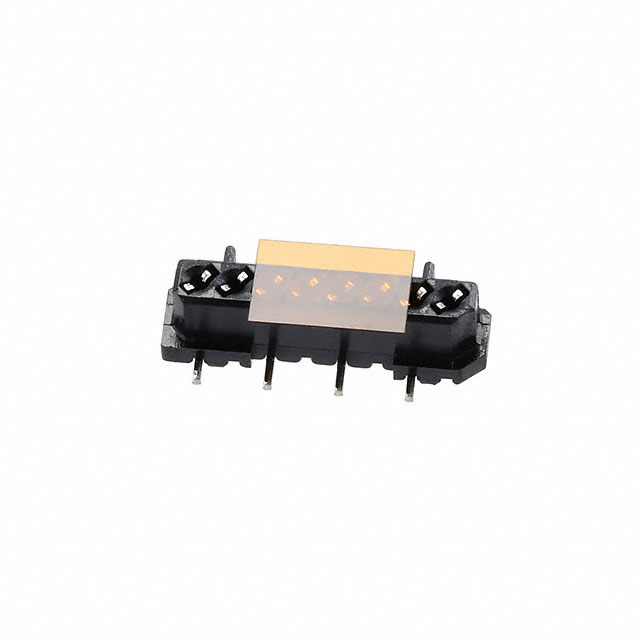

CONN RCPT 8POS 0.049 TIN SMD
| Part | Number of Positions | Mounting Type | Termination | Current Rating (Amps) | Insulation Material | Number of Rows | Voltage Rating | Contact Type | Number of Positions Loaded | Contact Material | Insulation Height | Insulation Height | Fastening Type | Pitch - Mating | Pitch - Mating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Connector Type | Contact Finish - Post | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 8 | Surface Mount | Solder | 0.5 A | Polyphenylene Sulfide (PPS) | 1 | 50 V | Forked | All | Phosphor Bronze | 0.134 in | 3.4 mm | Push-Pull | 1.25 mm | 0.049 in | Board Guide Pick and Place | -30 ░C | 105 ░C | UL94 V-0 | Receptacle | Tin | Circular |
