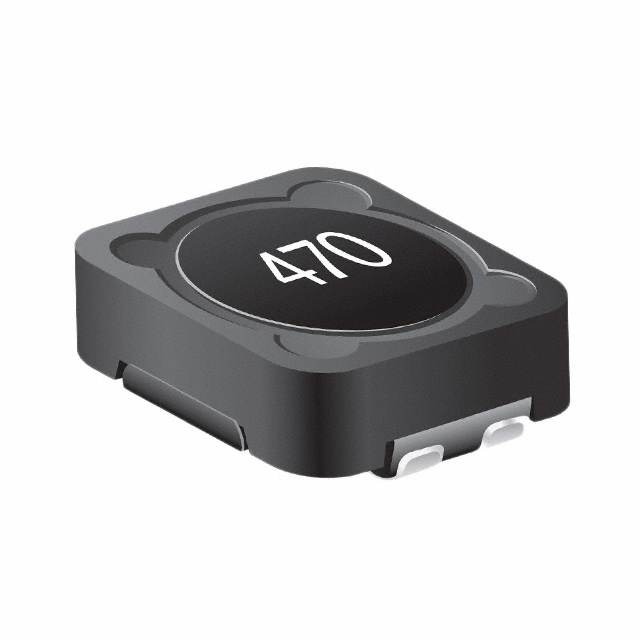

SRF0703A Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND7.6X7.6X3.4MM,2X82UH20%0.43A,SHDSMD /TAPE & REEL - 13" REEL
| Part | Current Rating - Series | Current Saturation - Series | Shielding | Current Rating - Parallel | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Coils | Height | Height | Mounting Type | Ratings | Tolerance | Package / Case | Current Saturation - Parallel | Inductance - Connected In Series | DC Resistance (DCR) - Series [Max] | Inductance - Connected In Parallel | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | DC Resistance (DCR) - Parallel [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 430 mA | 440 mA | Shielded | 860 mA | 0.299 " | 7.6 mm | 7.6 mm | 0.299 " | 2 | 0.142 in | 3.6 mm | Surface Mount | AEC-Q200 | 20 % | Nonstandard | 890 mA | 324.7 µH | 2.28 Ohm | 82 µH | 125 °C | -40 C | 610 mOhm | ||
 Bourns Inc. | 367 mA | 390 mA | Shielded | 730 mA | 0.299 " | 7.6 mm | 7.6 mm | 0.299 " | 2 | 0.142 in | 3.6 mm | Surface Mount | AEC-Q200 | 20 % | Nonstandard | 790 mA | 397.6 µH | 100 µH | 125 °C | -40 C | 715 mOhm | 2.64 Ohm | ||
Bourns Inc. | 289 mA | 320 mA | Shielded | 580 mA | 0.299 " | 7.6 mm | 7.6 mm | 0.299 " | 2 | 0.142 in | 3.6 mm | Surface Mount | AEC-Q200 | 20 % | Nonstandard | 650 mA | 608.2 µH | 150 µH | 125 °C | -40 C | 986 mOhm | 3.63 Ohm | ||
 Bourns Inc. | 444 mA | 480 mA | Shielded | 890 mA | 0.299 " | 7.6 mm | 7.6 mm | 0.299 " | 2 | 0.142 in | 3.6 mm | Surface Mount | AEC-Q200 | 20 % | Nonstandard | 960 mA | 289.3 µH | 68 µH | 125 °C | -40 C | 1.92 Ohm | 507 mOhm |
