16280-3P Series
Manufacturer: Conxall/Switchcraft
Beta
⌘K

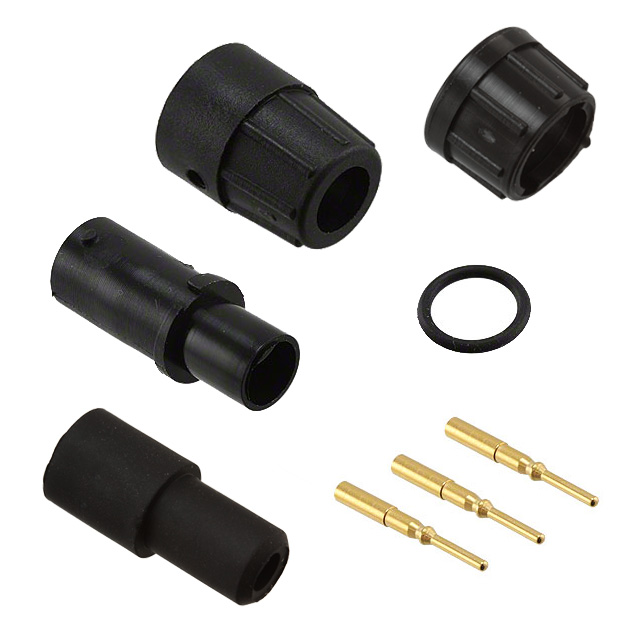

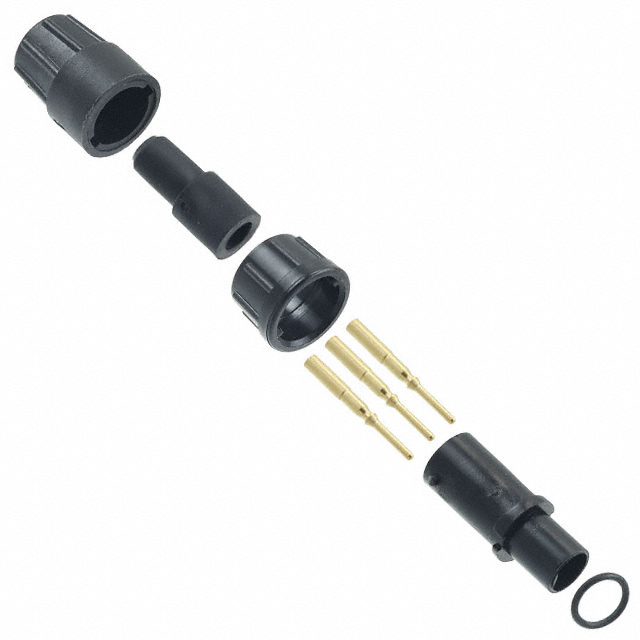

CONN PLUG MALE 3POS GOLD CRIMP
| Part | Color | Shielding | Applications | Mounting Type | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Primary Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Orientation | Connector Type | Material Flammability Rating | Features | Current Rating (Amps) | Voltage Rating | Fastening Type | Backshell Material, Plating | Contact Finish - Mating | Ingress Protection | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conxall/Switchcraft | Black | Unshielded | Data Industrial Instrumentation Medical | Free Hanging (In-Line) | 2.29 mm | 0.09 in 0.14 in | 3.56 mm | Plastic | Copper Alloy | 85 °C | -40 °C | Crimp | Keyed | Male Pins Plug | UL94 HB | Backshell | 7.5 A | 600 VAC | Bayonet Lock | Thermoplastic | Gold | IP67 - Dust Tight Waterproof | ||||||
 Conxall/Switchcraft | Black | Unshielded | Data Industrial Instrumentation Medical | Free Hanging (In-Line) | Plastic | Copper Alloy | 85 °C | -40 °C | Crimp | Keyed | Male Pins Plug | UL94 HB | Backshell | 7.5 A | 600 VAC | Bayonet Lock | Thermoplastic | Gold | IP67 - Dust Tight Waterproof | 0.15 in 0.17 in | 3.81 mm 4.32 mm | |||||||
Conxall/Switchcraft | Black | Unshielded | Data Industrial Instrumentation Medical | Free Hanging (In-Line) | Plastic | Copper Alloy | 85 °C | -40 °C | Crimp | Keyed | Male Pins Plug | UL94 HB | Backshell | 7.5 A | 600 VAC | Bayonet Lock | Thermoplastic | Gold | IP67 - Dust Tight Waterproof | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm |
