896-066 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 66POS 0.125

...

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Mounting Type	Contact Finish	Number of Positions/Bay/Row	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Termination	Flange Feature	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Rows [custom]	Gender	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 896-066-521-808	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Solder	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female
EDAC Inc. 896-066-520-804	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Solder		Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female	0.156 "	3.96 mm
EDAC Inc. 896-066-520-203	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Solder	Floating Bobbin Flush Mount	Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female	0.116 "	2.95 mm

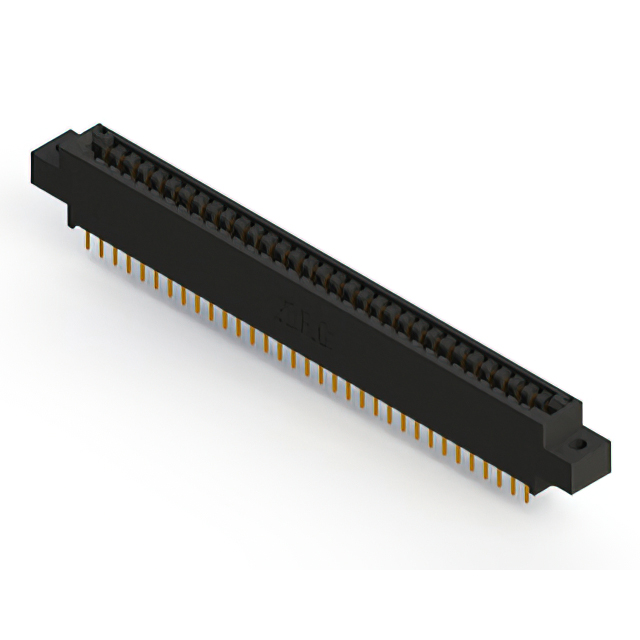

EDAC Inc. 896-066-521-802	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Solder		Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female	0.128 "	3.25 mm
EDAC Inc. 896-066-520-207	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Solder	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female
EDAC Inc. 896-066-540-207	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female
EDAC Inc. 896-066-540-202	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Wire Wrap	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female	0.128 "	3.25 mm
EDAC Inc. 896-066-522-807	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Solder	M3 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female
EDAC Inc. 896-066-521-812	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Solder	Side Mount Opening Unthreaded	Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female	0.128 "	3.25 mm
EDAC Inc. 896-066-500-804	2	Polyphenylene Sulfide (PPS)	Cantilever	Through Hole	Gold	33	Copper Alloy	0.25 Ám	10 Áin	Black	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Solder Eyelet(s)		Non Specified - Dual Edge	125 °C	-40 C	Dual	2	Female	0.156 "	3.96 mm
