XW4L Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
TERM BLK 10P SIDE ENT 2.54MM SMD
| Part | Housing Material | Mounting Type | Features | Voltage | Current | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Plating | Mating Orientation | Wire Termination | Color | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Number of Levels | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Liquid Crystal Polymer (LCP) | Surface Mount | Board Guide | 160 V | 6 A | 125 °C | -45 °C | Copper Alloy - Tin Plated | Horizontal with Board | Push-In Spring Screwless - Leg Spring | Black | 20 AWG | 26 AWG | 2.54 mm | 0.1 in | 1 | 10 |

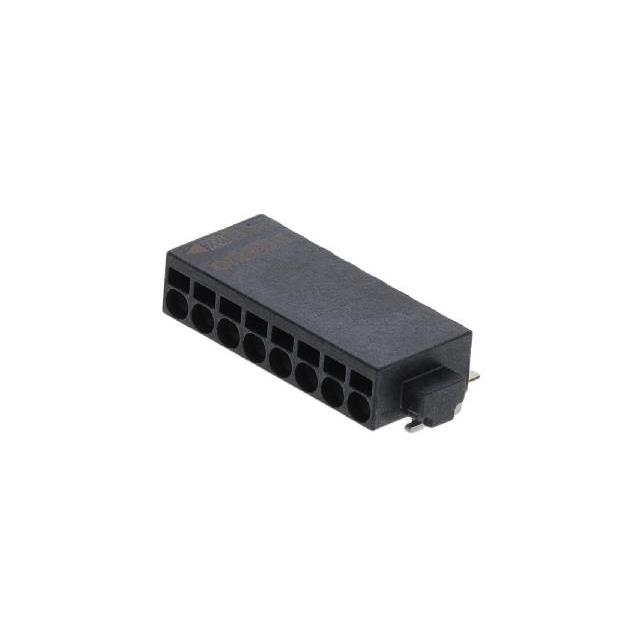

 Omron Electronics Inc-EMC Div | Liquid Crystal Polymer (LCP) | Surface Mount | Board Guide | 160 V | 6 A | 125 °C | -45 °C | Copper Alloy - Tin Plated | Horizontal with Board | Push-In Spring Screwless - Leg Spring | Black | 20 AWG | 26 AWG | 2.54 mm | 0.1 in | 1 | 8 |

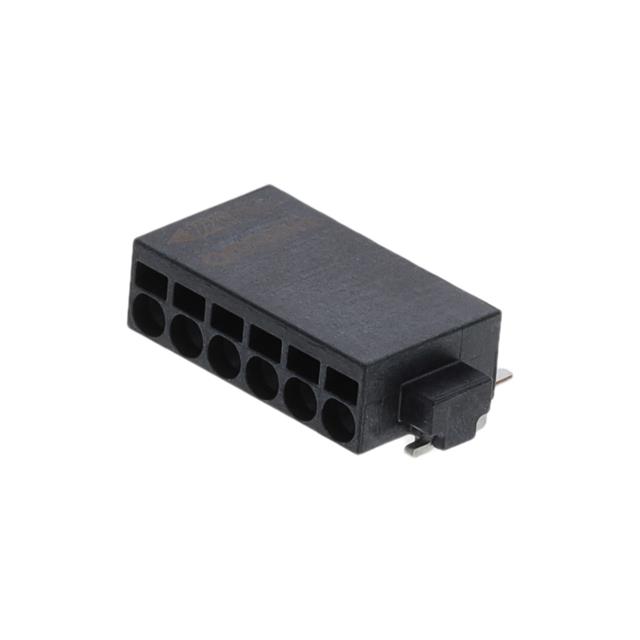

 Omron Electronics Inc-EMC Div | Liquid Crystal Polymer (LCP) | Surface Mount | Board Guide | 160 V | 6 A | 125 °C | -45 °C | Copper Alloy - Tin Plated | Horizontal with Board | Push-In Spring Screwless - Leg Spring | Black | 20 AWG | 26 AWG | 2.54 mm | 0.1 in | 1 | 6 |
 Omron Electronics Inc-EMC Div | Liquid Crystal Polymer (LCP) | Surface Mount | Board Guide | 160 V | 6 A | 125 °C | -45 °C | Copper Alloy - Tin Plated | Vertical with Board | Push-In Spring Screwless - Leg Spring | Black | 20 AWG | 26 AWG | 2.54 mm | 0.1 in | 1 | 8 |
