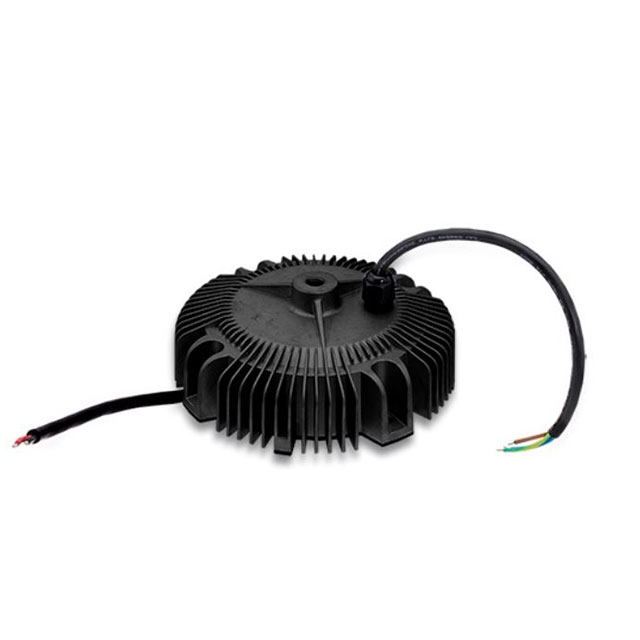

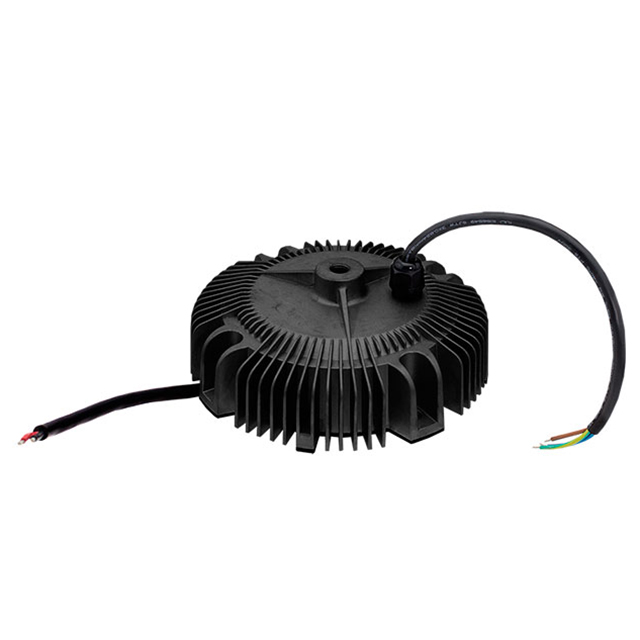

HBG-240 Series

Catalog

LED DVR CC/CV ACDC 21.6-36V 6.7A

Part	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Dimming	Approval Agency	Voltage - Output [Min]	Voltage - Output [Max]	Termination Style	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Topology	Features	Type	Efficiency	Voltage - Isolation	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Standard Number	Voltage - Output

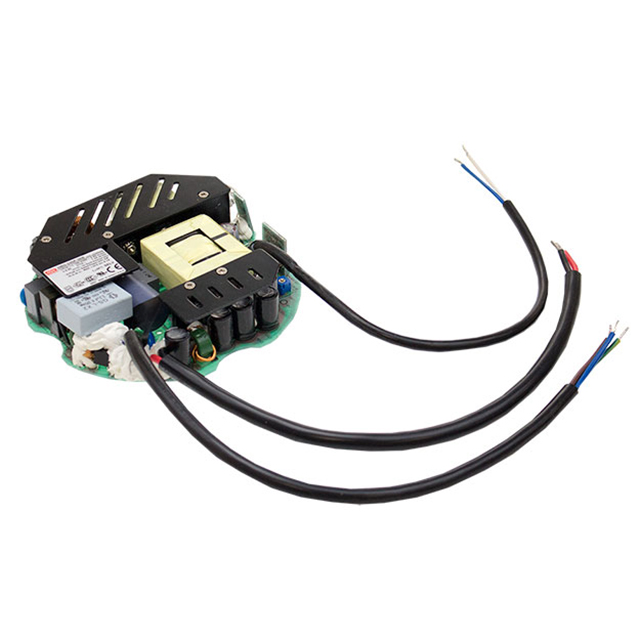

MEAN WELL USA Inc. HBG-240P-36B	Chassis Mount	1	305 VAC	Analog PWM	CB CCC CE cURus ENEC	21.6 V	36 V	Wire Leads	6.7 A	90 VAC	241 W	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	92.5 %	3750 VDC	144 mm	35 mm	5.67 in	1.38 in
MEAN WELL USA Inc. HBG-240-24	Chassis Mount	1	305 VAC		CB CCC CE cURus ENEC	14.4 V	24 V	Wire Leads	10 A	90 VAC	240 Watts	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	92.5 %	3750 VDC	191.5 mm	69 mm	7.54 in	2.72 in	IP67	-40 C	75 ░C
MEAN WELL USA Inc. HBG-240P-36A	Chassis Mount	1	305 VAC		CB CCC CE cURus ENEC	21.6 V	36 V	Wire Leads	6.7 A	90 VAC	241 W	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	92.5 %	3750 VDC	144 mm	35 mm	5.67 in	1.38 in
MEAN WELL USA Inc. HBG-240-48AB	Chassis Mount	1	305 VAC	Analog PWM	CB CCC CE cURus EAC ENEC			Wire Leads		90 VAC	240 Watts	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	93 %	3750 VDC	91.5 mm	69 mm	91.44 mm	2.72 in	IP65	-40 C	75 ░C	5 A	UL 8750	48 V
MEAN WELL USA Inc. HBG-240-48B	Chassis Mount	1	305 VAC	Analog PWM	CB CCC CE cURus ENEC	28.8 V	48 V	Wire Leads		90 VAC	240 Watts	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	93 %	3750 VDC	191.5 mm	69 mm	7.54 in	2.72 in	IP67	-40 C	75 ░C	5 A
MEAN WELL USA Inc. HBG-240-24B	Chassis Mount	1	305 VAC	Analog PWM	CB CCC CE cURus ENEC	14.4 V	24 V	Wire Leads	10 A	90 VAC	240 Watts	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	92.5 %	3750 VDC	191.5 mm	69 mm	7.54 in	2.72 in	IP67	-40 C	75 ░C
MEAN WELL USA Inc. HBG-240-60	Chassis Mount	1	305 VAC		CB CCC CE cURus ENEC	36 V	60 V	Wire Leads	4 A	90 VAC	240 Watts	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	93 %	3750 VDC	191.5 mm	69 mm	7.54 in	2.72 in	IP67	-40 C	75 ░C
MEAN WELL USA Inc. HBG-240P-48A	Chassis Mount	1	305 VAC		CB CCC CE cURus ENEC	28.8 V	48 V	Wire Leads		90 VAC	240 Watts	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	93 %	3750 VDC	144 mm	35 mm	5.67 in	1.38 in				5 A
MEAN WELL USA Inc. HBG-240-60DA	Chassis Mount	1	305 VAC	Analog PWM	CB CCC CE cURus EAC ENEC			Wire Leads	4 A	90 VAC	240 Watts	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	93.5 %	3750 VDC	91.5 mm	69 mm	91.44 mm	2.72 in	IP67	-40 C	75 ░C		UL 8750	60 V
MEAN WELL USA Inc. HBG-240-36	Chassis Mount	1	305 VAC		CB CCC CE cURus ENEC	21.6 V	36 V	Wire Leads	6.7 A	90 VAC	240 Watts	AC DC Converter	OCP OTP OVP SCP	Constant Current Voltage	92.5 %	3750 VDC	191.5 mm	69 mm	7.54 in	2.72 in	IP67	-40 C	75 ░C
