A-DS 09 Series

Catalog

CONN D-SUB PLUG 9POS VERT SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Voltage Rating	Contact Material	Dielectric Material	Number of Rows [custom]	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Features	Contact Finish Thickness	Connector Style	Current Rating (Amps)	Connector Type	Material Flammability Rating	Contact Type	Contact Finish	Number of Positions	Termination	Backset Spacing	Backset Spacing	Ingress Protection

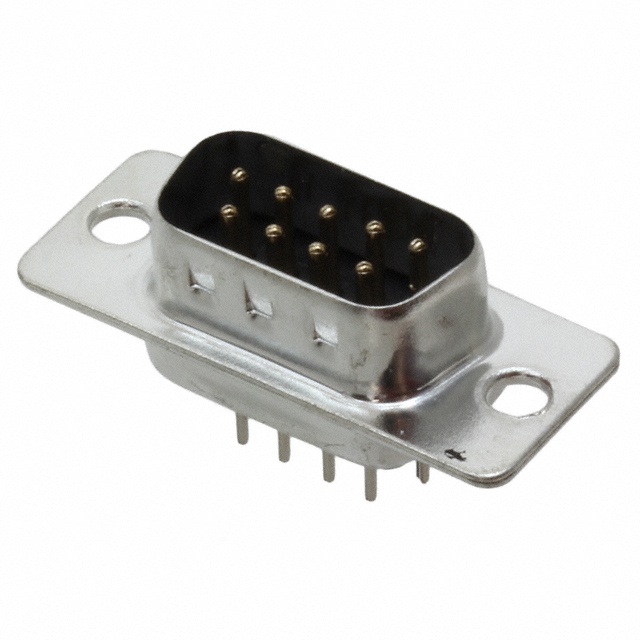

Assmann WSW Components A-DS 09 PP/Z	-20 ░C	105 ░C	Gray	250 V	Brass	Polybutylene Terephthalate (PBT) Glass Filled	2	Housing/Shell (Unthreaded)	1	DE E	Through Hole	Grounding Indents	Flash	D-Sub	3 A	Plug Male Pins	UL94 V-0	Signal	Gold	9	Solder

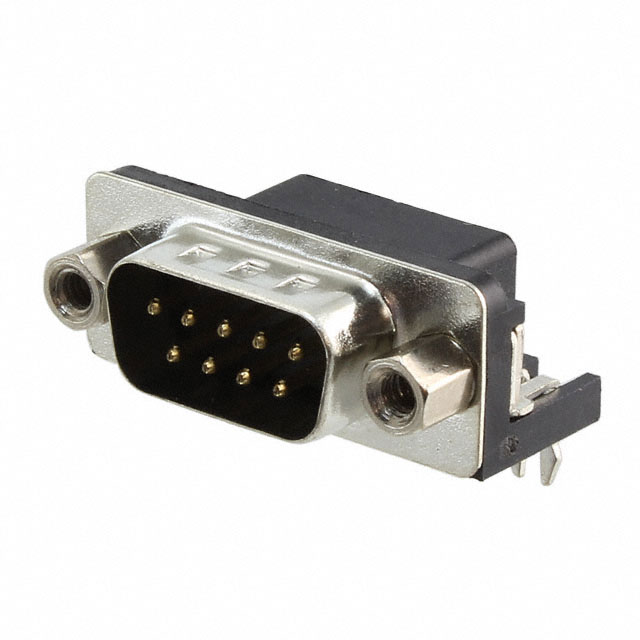

Assmann WSW Components A-DS 09 A/KG-T2S	-55 C	105 ░C	Black	250 V	Brass	Polybutylene Terephthalate (PBT) Glass Filled	2	4-40 Mating Side Female Screwlock	1	DE E	Right Angle Through Hole	Board Lock Grounding Indents	Flash	D-Sub	3 A	Plug Male Pins	UL94 V-0	Signal	Gold	9	Solder	0.319 in	8.1 mm

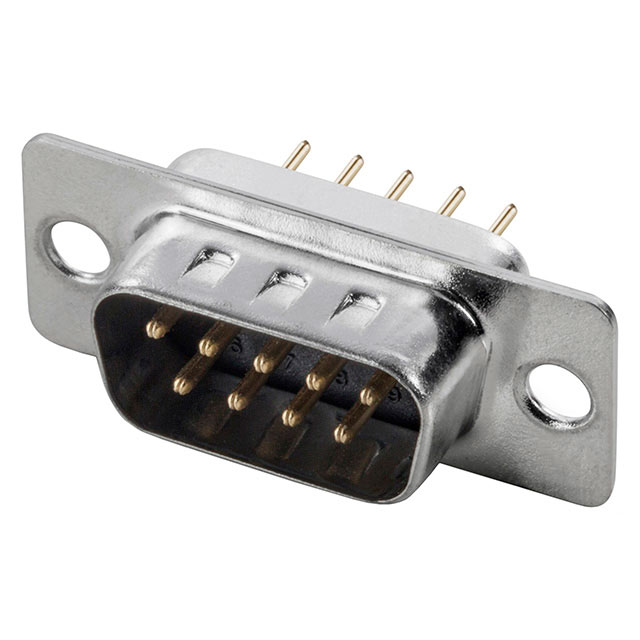

Assmann WSW Components A-DS 09 PP/Z-BK	-55 C	105 ░C	Black	250 VAC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	2	Housing/Shell (Unthreaded)	1	DE E	Through Hole	Grounding Indents	Flash	D-Sub	3 A	Plug Male Pins	UL94 V-0	Signal	Gold	9	Solder

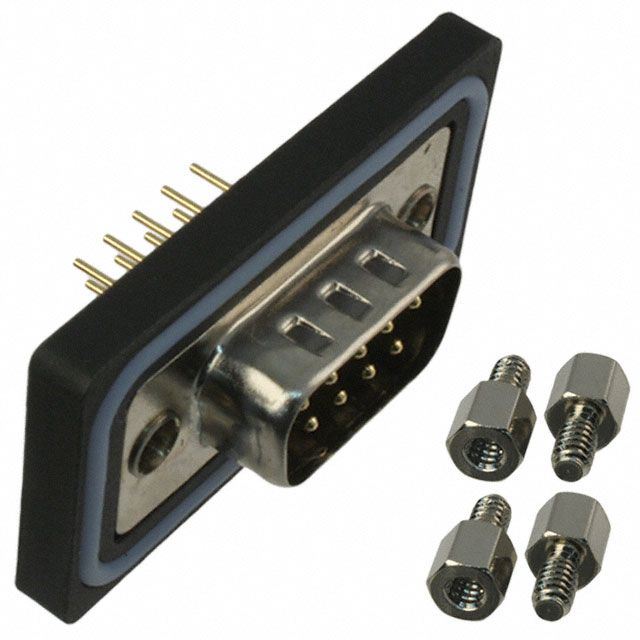

Assmann WSW Components A-DS 09 PP-WP			Black		Copper Alloy	Glass Filled Nylon Polyamide (PA)	2	Female Screwlock Mating Side	1	DE E	Panel Mount Through Hole	Grounding Indents		D-Sub		Plug Male Pins		Signal	Gold	9	Solder			IP67 - Dust Tight Waterproof
