RP185 Series

Catalog

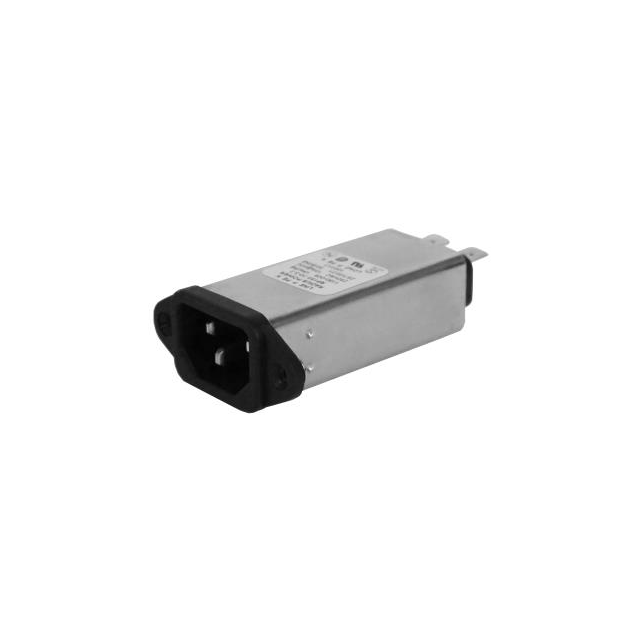

LINE FILTER 250VAC 10A CHASSIS

Part	Termination Style	Voltage - Rated AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Filter Type	Approval Agency	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Current
Astrodyne TDI RP185-10-.47-W	IEC 320-C14 Wire Leads	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	10 A
Astrodyne TDI RP185-1-0-W	IEC 320-C14 Wire Leads	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	1 A
Astrodyne TDI RP185-3-0-W	IEC 320-C14 Wire Leads	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	3 A
Astrodyne TDI RP185-10-4.7-QD	IEC 320-C14 Quick Connect	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	10 A
Astrodyne TDI RP185-6-4.7-W	IEC 320-C14 Wire Leads	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	6 A
Astrodyne TDI RP185-10-0-W	IEC 320-C14 Wire Leads	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	10 A
Astrodyne TDI RP185-15-0-QD	IEC 320-C14 Quick Connect	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	15 A
Astrodyne TDI RP185-3-1-QD	IEC 320-C14 Quick Connect	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	3 A
Astrodyne TDI RP185-3-0-QD	IEC 320-C14 Quick Connect	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	3 A
Astrodyne TDI RP185-3-1-W	IEC 320-C14 Wire Leads	250 V	Chassis Mount	100 °C	-25 °C	General Purpose	Single Phase	CE CSA cURus ENEC	60 Hz	50 Hz	Single Stage	3 A
