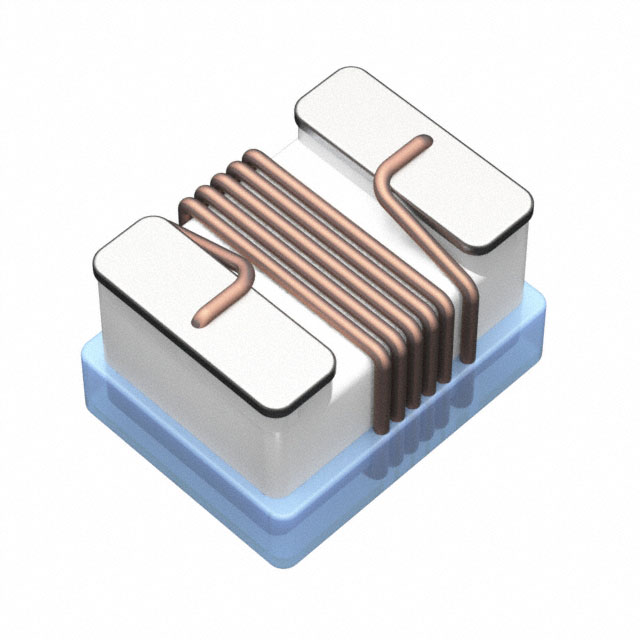

0805CS Series

Manufacturer: Delta Electronics/Components

Catalog

Catalog

FIXED IND 820NH 180MA 2.35OHM SM

...

Part	Supplier Device Package	Frequency - Self Resonant	Q @ Freq	Tolerance	Package / Case	Material - Core	Type	Inductance	Shielding	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance Frequency - Test	Height - Seated (Max)	Height - Seated (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]	Q @ Freq [custom]
Delta Electronics/Components 0805CS-821EJTS	0805	200 MHz	23 50 MHz	5 %	0805	Ceramic	Drum Core Wirewound	820 nH	Unshielded	2.35 Ohm	0.071 in	1.8 mm	2.29 mm	0.09 in	25 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	0.18 A
Delta Electronics/Components 0805CS-270EJTS	0805	2.5 GHz		5 %	0805	Ceramic	Drum Core Wirewound	27 nH	Unshielded	250 mOhm	0.071 in	1.8 mm	2.29 mm	0.09 in	250 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	0.5 A	55	500 MHz
Delta Electronics/Components 0805CS-101EJTS	0805	1.2 GHz	65 500 MHz	5 %	0805	Ceramic	Drum Core Wirewound	100 nH	Unshielded		0.071 in	1.8 mm	2.29 mm	0.09 in	150 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	400 mA			460 mOhm
Delta Electronics/Components 0805CS-102EGTS	0805	100 MHz		2 %	0805	Ceramic	Drum Core Wirewound	1 µH	Unshielded	2.5 Ohm	0.071 in	1.8 mm	2.29 mm	0.09 in	25 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	0.17 A	20	50 MHz
Delta Electronics/Components 0805CS-270EKTS	0805	2.5 GHz		10 %	0805	Ceramic	Drum Core Wirewound	27 nH	Unshielded	250 mOhm	0.071 in	1.8 mm	2.29 mm	0.09 in	250 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	0.5 A	55	500 MHz
Delta Electronics/Components 0805CS-680EKTS	0805	1.45 GHz		10 %	0805	Ceramic	Drum Core Wirewound	68 nH	Unshielded	380 mOhm	0.071 in	1.8 mm	2.29 mm	0.09 in	200 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	0.5 A	60	500 MHz
Delta Electronics/Components 0805CS-101EGTS	0805	1.2 GHz	65 500 MHz	2 %	0805	Ceramic	Drum Core Wirewound	100 nH	Unshielded		0.071 in	1.8 mm	2.29 mm	0.09 in	150 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	400 mA			460 mOhm
Delta Electronics/Components 0805CS-270EGTS	0805	2.5 GHz		2 %	0805	Ceramic	Drum Core Wirewound	27 nH	Unshielded	250 mOhm	0.071 in	1.8 mm	2.29 mm	0.09 in	250 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	0.5 A	55	500 MHz
Delta Electronics/Components 0805CS-150EKTS	0805	3.4 GHz		10 %	0805	Ceramic	Drum Core Wirewound	15 nH	Unshielded	170 mOhm	0.071 in	1.8 mm	2.29 mm	0.09 in	250 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	600 mA	50			500 MHz
Delta Electronics/Components 0805CS-820EGTS	0805	1.3 GHz	65 500 MHz	2 %	0805	Ceramic	Drum Core Wirewound	82 nH	Unshielded	420 mOhm	0.071 in	1.8 mm	2.29 mm	0.09 in	150 MHz	1.55 mm	0.061 in	Surface Mount	125 °C	-40 C	400 mA
