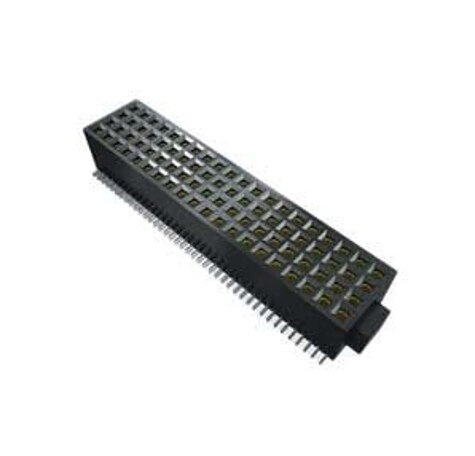

ROLC Series
Board to Board & Mezzanine Connectors ".050"" FOURRAY Quad Row Socket Strip\/
Manufacturer: Samtec Inc.
Catalog
Board to Board & Mezzanine Connectors ".050"" FOURRAY Quad Row Socket Strip\/
Beta
⌘K
Board to Board & Mezzanine Connectors ".050"" FOURRAY Quad Row Socket Strip\/
Board to Board & Mezzanine Connectors ".050"" FOURRAY Quad Row Socket Strip\/
Board to Board & Mezzanine Connectors ".050"" FOURRAY Quad Row Socket Strip\/
| Part | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Insulation Color | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Connector Type | Contact Finish - Post | Contact Shape | Contact Material | Number of Positions | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | All | 30 Áin | 0.76 Ám | Female Socket | Black | 4.45 mm | 0.175 in | 0.05 in | 1.27 mm | -55 °C | 125 °C | Surface Mount | Solder | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | Push-Pull | Receptacle | Tin | Square | Beryllium Copper | 180 | Gold | |
Samtec Inc. | All | 30 Áin | 0.76 Ám | Female Socket | Black | 4.45 mm | 0.175 in | 0.05 in | 1.27 mm | -55 °C | 125 °C | Surface Mount | Solder | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | Push-Pull | Receptacle | Tin | Square | Beryllium Copper | 80 | Gold | Board Lock Pick and Place |
