LMZ12008 Series

Catalog

8A SIMPLE SWITCHER® POWER MODULE WITH 20V MAXIMUM INPUT VOLTAGE

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Applications	Features	Efficiency	Mounting Type	Current - Output (Max) [Max]	Number of Outputs	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Utilized IC / Part	Main Purpose	Board Type	Frequency - Switching	Regulator Topology	Supplied Contents	Voltage - Output	Outputs and Type	Outputs and Type	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]
Texas Instruments LMZ12008TZ/NOPB	0.8 V	6 V	ITE (Commercial)	UVLO	92 %	Surface Mount	8 A	1	Non-Isolated PoL Module	15 mm	0.23 "	15 mm	0.59 in	5.9 mm	0.59 in	125 °C	-40 °C	TO-PMOD-11 Power Module	20 V	6 V

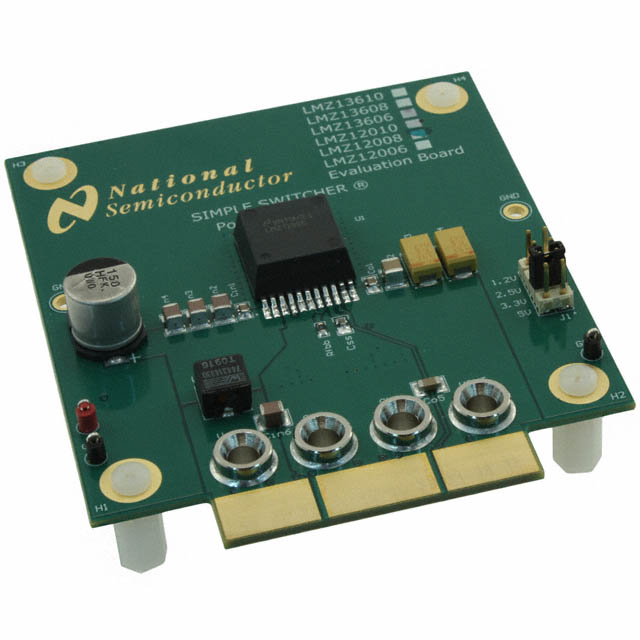

Texas Instruments LMZ12008EVAL/NOPB																					LMZ12008	DC/DC Step Down	Fully Populated	350 kHz	Buck	Board(s)	1.2 V 2.5 V 3.3 V 5 V	Non-Isolated	1	8 A	20 V	6 V
