103414 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

NUT PANEL

Part	Accessory Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Finish - Mating	Contact Finish - Post	Number of Positions	Shrouding	Insulation Color	Fastening Type	Contact Type	Style	Contact Length - Post	Contact Length - Post	Termination	Contact Shape	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Rows	Overall Contact Length	Overall Contact Length [x]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Material	Mounting Type
TE Connectivity AMP Connectors 103414-58	Nut

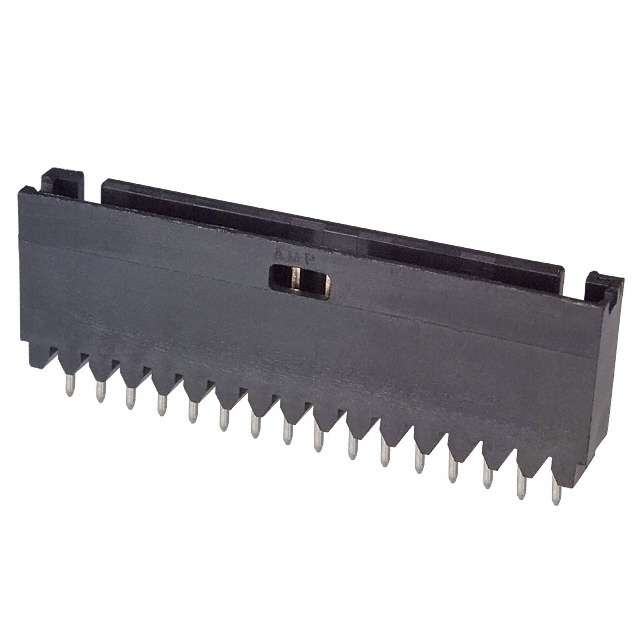

TE Connectivity AMP Connectors 1-103414-4		2.54 µm	100 µin	Copper Alloy	Gold	Tin-Lead	16	Shrouded - 4 Wall	Black	Push-Pull	Male Pin	Board to Board Cable	0.13 "	3.3 mm	Solder	Square	All	0.549 in	13.94 mm	1	14.96 mm	0.589 in	Header	0.76 Ám	30 Áin	0.24 in	6.1 mm	UL94 V-0	105 ░C	-65 ░C	3 A	0.1 "	2.54 mm	Thermoplastic	Through Hole
TE Connectivity AMP Connectors 7-103414-2		2.54 µm	100 µin	Copper Alloy	Gold	Tin	24	Shrouded - 4 Wall	Black	Push-Pull	Male Pin	Board to Board Cable	0.13 "	3.3 mm	Solder	Square	All	0.549 in	13.94 mm	1	14.96 mm	0.589 in	Header	0.76 Ám	30 Áin	0.24 in	6.1 mm	UL94 V-0	105 ░C	-65 ░C	3 A	0.1 "	2.54 mm	Thermoplastic	Through Hole
TE Connectivity AMP Connectors 103414-7		2.54 µm	100 µin	Copper Alloy	Gold	Tin-Lead	9	Shrouded - 4 Wall	Black	Push-Pull	Male Pin	Board to Board Cable	0.13 "	3.3 mm	Solder	Square	All	0.549 in	13.94 mm	1	14.96 mm	0.589 in	Header	0.76 Ám	30 Áin	0.24 in	6.1 mm	UL94 V-0	105 ░C	-65 ░C	3 A	0.1 "	2.54 mm	Thermoplastic	Through Hole
TE Connectivity AMP Connectors 2-103414-0		2.54 µm	100 µin	Copper Alloy	Gold	Tin-Lead	22	Shrouded - 4 Wall	Black	Push-Pull	Male Pin	Board to Board Cable	0.13 "	3.3 mm	Solder	Square	All	0.549 in	13.94 mm	1	14.96 mm	0.589 in	Header	0.76 Ám	30 Áin	0.24 in	6.1 mm	UL94 V-0	105 ░C	-65 ░C	3 A	0.1 "	2.54 mm	Thermoplastic	Through Hole
TE Connectivity AMP Connectors 103414-107
TE Connectivity AMP Connectors 6-103414-6		2.54 µm	100 µin	Copper Alloy	Gold	Tin	18	Shrouded - 4 Wall	Black	Push-Pull	Male Pin	Board to Board Cable	0.13 "	3.3 mm	Solder	Square	All	0.549 in	13.94 mm	1	14.96 mm	0.589 in	Header	0.76 Ám	30 Áin	0.24 in	6.1 mm	UL94 V-0	105 ░C	-65 ░C	3 A	0.1 "	2.54 mm	Thermoplastic	Through Hole
