TPS54550 Series
Manufacturer: Texas Instruments
Beta
⌘K

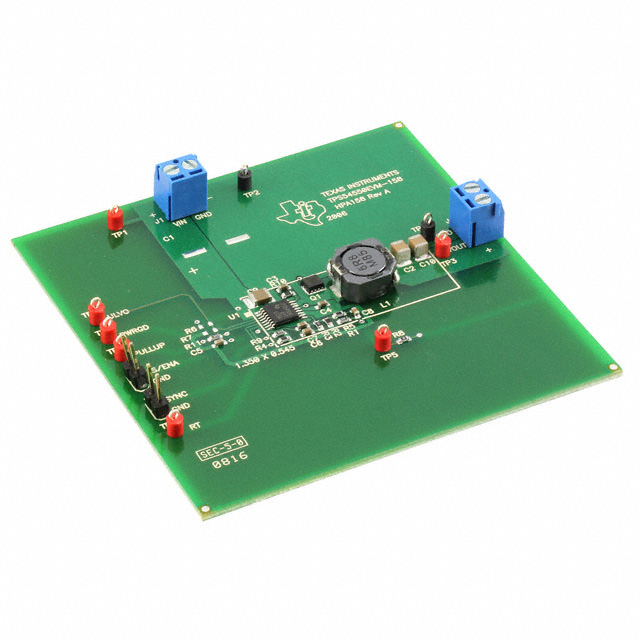

TPS54550 DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 3.3V OUTPUT EVALUATION BOARD
| Part | Regulator Topology | Frequency - Switching | Voltage - Output | Main Purpose | Supplied Contents | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Board Type | Current - Output | Outputs and Type | Outputs and Type | Function | Package / Case | Package / Case | Voltage - Input (Min) [Min] | Output Type | Voltage - Input (Max) [Max] | Topology | Synchronous Rectifier | Voltage - Output (Max) [Max] | Supplier Device Package | Number of Outputs | Voltage - Output (Min/Fixed) | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Buck | 700 kHz | 3.3 V | DC/DC Step Down | Board(s) | 6 V | 17 V | TPS54550 | Fully Populated | 5 A | Non-Isolated | 1 | ||||||||||||||||
Texas Instruments | 6 A | Step-Down | 16-PowerTSSOP | 0.173 in 4.4 mm Width | 4.5 V | Adjustable | 20 V | Buck | 17.2 V | 16-HTSSOP | 1 | 0.891 V | -40 °C | 125 ¯C | Positive | Surface Mount | ||||||||||||
 Texas Instruments | 6 A | Step-Down | 16-PowerTSSOP | 0.173 in 4.4 mm Width | 4.5 V | Adjustable | 20 V | Buck | 17.2 V | 16-HTSSOP | 1 | 0.891 V | -40 °C | 125 ¯C | Positive | Surface Mount | ||||||||||||
Texas Instruments | 6 A | Step-Down | 16-PowerTSSOP | 0.173 in 4.4 mm Width | 4.5 V | Adjustable | 20 V | Buck | 17.2 V | 16-HTSSOP | 1 | 0.891 V | -40 °C | 125 ¯C | Positive | Surface Mount |
