89757 Series
Manufacturer: Belden Inc.
Beta
⌘K

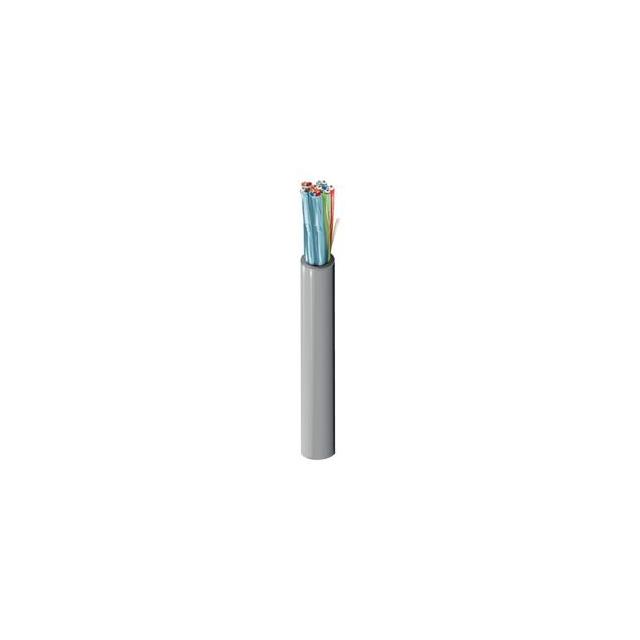

MULTI-PAIR 14CON 24AWG GRY
| Part | Shield Material | Shield Coverage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Material | Ratings | Wire Gauge | Jacket Color | Length | Length | Number of Conductors | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Drain Wire | 0.014 in | 0.356 mm | Copper Tinned | Foil | 7 | 32 AWG | 300 VDC | -40 C | 150 °C | 9.17 mm | 0.361 in | Multi-Pair | Plenum Polyvinylidene Fluoride (PVDF) | UL Style CMP | 24 AWG | Gray | 304.8 m | 1000 ft | 14 | Foam Fluorinated Ethylene-Propylene (FFEP) |
