10082202 Series

Catalog

CONN HEADER R/A 6POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Current Rating (Amps)	Connector Type	Material Flammability Rating	Contact Shape	Number of Positions Loaded	Insulation Height	Insulation Height	Features	Pitch - Mating	Pitch - Mating	Insulation Color	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Fastening Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Type	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Contact Finish - Mating	Contact Finish - Post	Shrouding
Amphenol ICC (FCI) 10082202-101A06LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "	Pick and Place	0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	0.76 Ám	30 Áin	0.23 in	5.84 mm	Male Pin	6	2.5 mm	0.098 in	2	Gold GXT™	Tin	Unshrouded
Amphenol ICC (FCI) 10082202-101-10LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "		0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	0.76 Ám	30 Áin	0.23 in	5.84 mm	Male Pin	10	2.5 mm	0.098 in	2	Gold GXT™	Tin	Unshrouded
Amphenol ICC (FCI) 10082202-101-14LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "		0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	0.76 Ám	30 Áin	0.23 in	5.84 mm	Male Pin	14	2.5 mm	0.098 in	2	Gold GXT™	Tin	Unshrouded
Amphenol ICC (FCI) 10082202-101-20LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "		0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	0.76 Ám	30 Áin	0.23 in	5.84 mm	Male Pin	20	2.5 mm	0.098 in	2	Gold GXT™	Tin	Unshrouded

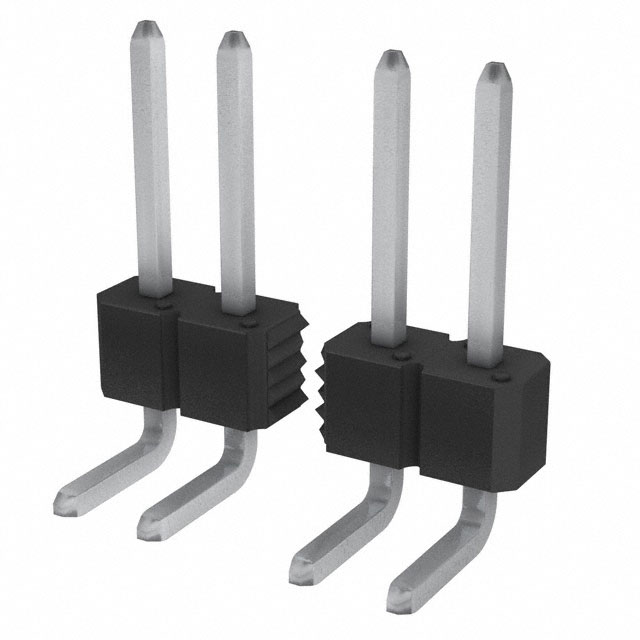

Amphenol ICC (FCI) 10082202-404-26LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "		0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	2 µm	78.7 µin	0.266 in	6.75 mm	Male Pin	26	3 mm	0.118 in	2		Tin	Unshrouded

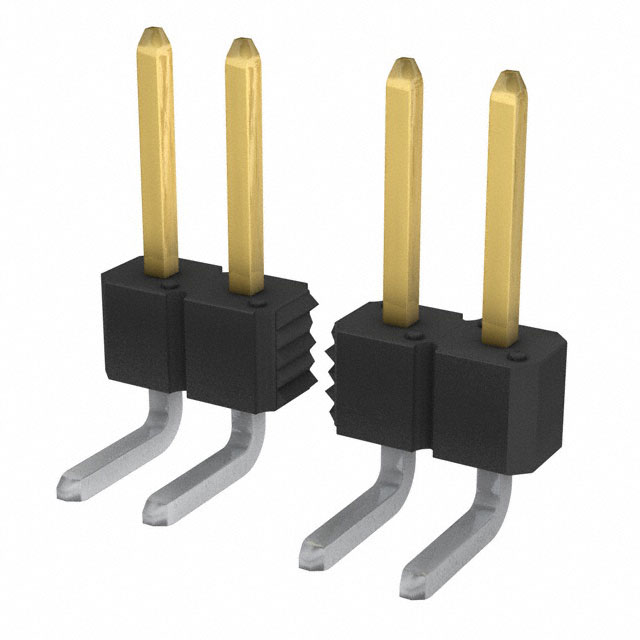

Amphenol ICC (FCI) 10082202-103-10LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "		0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	0.76 Ám	30 Áin	0.23 in	5.84 mm	Male Pin	10	3 mm	0.118 in	2	Gold GXT™	Tin	Unshrouded
Amphenol ICC (FCI) 10082202-103A20LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "	Pick and Place	0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	0.76 Ám	30 Áin	0.23 in	5.84 mm	Male Pin	20	3 mm	0.118 in	2	Gold GXT™	Tin	Unshrouded
Amphenol ICC (FCI) 10082202-103-12LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "		0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	0.76 Ám	30 Áin	0.23 in	5.84 mm	Male Pin	12	3 mm	0.118 in	2	Gold GXT™	Tin	Unshrouded
Amphenol ICC (FCI) 10082202-803-50LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "		0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	0.38 µm	15 µin	0.23 in	5.84 mm	Male Pin	50	3 mm	0.118 in	2	Gold	Tin	Unshrouded

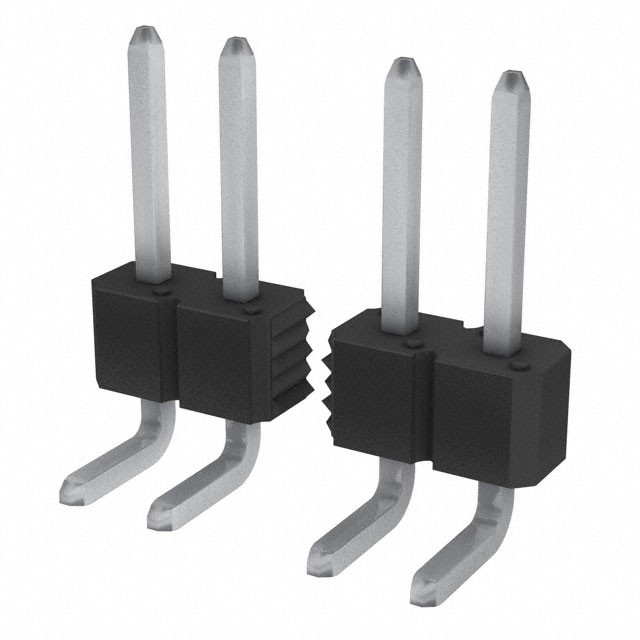

Amphenol ICC (FCI) 10082202-401-06LF	78.7 µin	2 µm	3 A	Header Breakaway	UL94 V-0	Square	All	4.83 mm	0.19 "		0.1 "	2.54 mm	Black	Solder	Right Angle Through Hole	130 °C	-65 ░C	Thermoplastic	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	2 µm	78.7 µin	0.23 in	5.84 mm	Male Pin	6	2.5 mm	0.098 in	2		Tin	Unshrouded
