170535 Series
Manufacturer: Molex
Beta
⌘K

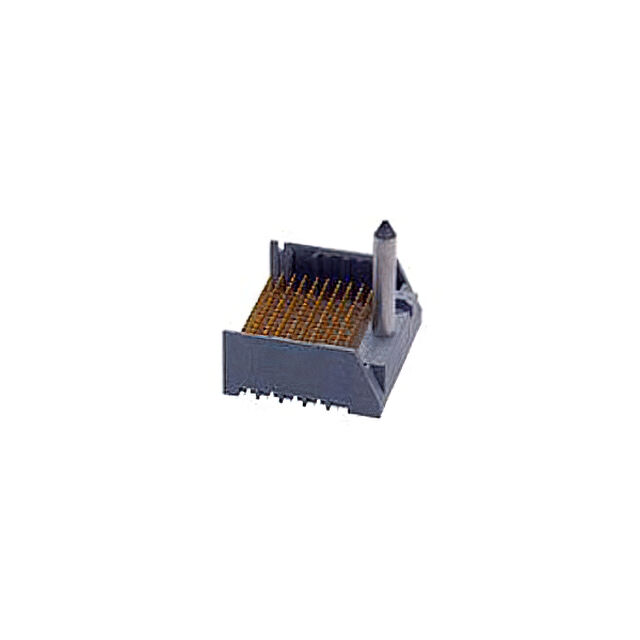

IMPACT 85 OHM PLUS 6 PAIR VERTICAL BACKPLANE HEADER, RIGHT GUIDED, OPEN ENDWALL, 10 COLUMNS, 180 CIRCUITS, PIN LENGTH 4.90MM, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD FREE
| Part | Current Rating (Amps) | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Columns | Connector Usage | Mounting Type | Contact Finish | Number of Rows [custom] | Features | Color | Pitch | Pitch | Connector Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 75 mA | 29.9 VAC/DC | -55 C | 85 °C | UL94 V-0 | 10 | Backplane | Through Hole | Gold | 18 | Guide Pin | Black | 1.9 mm | 0.075 in | Header Male Pins | Press-Fit | 30 Áin | 0.76 Ám | All | 180 |
