6504FE Series
Manufacturer: Belden Inc.
Beta
⌘K

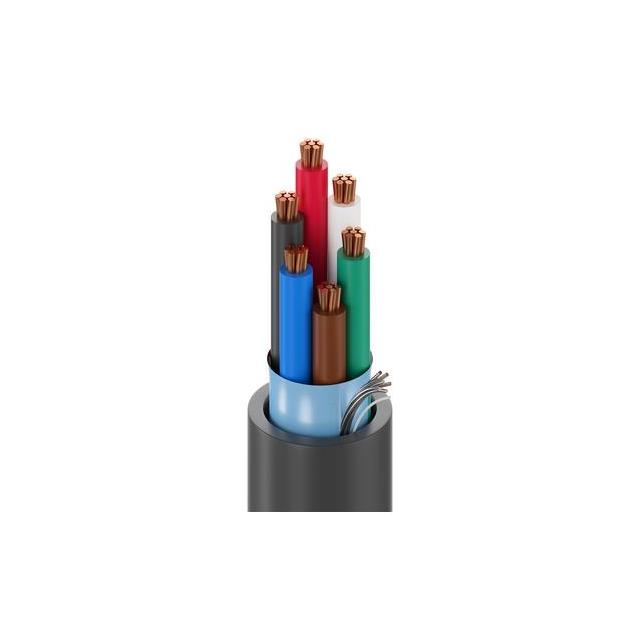

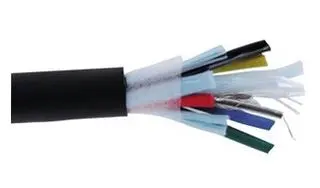

CABLE 6COND 22AWG YLW SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Material | Number of Conductors | Length | Length | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Voltage | Features | Shield Type | Conductor Material | Usage | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 0.175 in | 4.45 mm | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 6 | 304.8 m | 1000 ft | Yellow | 30 AWG | 7 | 22 AWG | Multi-Conductor | 75 ░C | 0 °C | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC | Drain Wire Rip Cord | Foil | Copper Bare | Alarm Security Sound | UL Style CMP |
Belden Inc. | Aluminum | 100 % | 0.175 in | 4.45 mm | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 6 | 304.8 m | 1000 ft | Orange | 30 AWG | 7 | 22 AWG | Multi-Conductor | 75 ░C | 0 °C | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC | Drain Wire Rip Cord | Foil | Copper Bare | Alarm Security Sound | UL Style CMP |
 Belden Inc. | Aluminum | 100 % | 0.175 in | 4.45 mm | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 6 | 152.4 m | 500 ft | Natural | 30 AWG | 7 | 22 AWG | Multi-Conductor | 75 ░C | 0 °C | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC | Drain Wire Rip Cord | Foil | Copper Bare | Alarm Security Sound | UL Style CMP |
Belden Inc. | Aluminum | 100 % | 0.175 in | 4.45 mm | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 6 | 76.2 m | 250 ft | Natural | 30 AWG | 7 | 22 AWG | Multi-Conductor | 75 ░C | 0 °C | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC | Drain Wire Rip Cord | Foil | Copper Bare | Alarm Security Sound | UL Style CMP |
Belden Inc. | Aluminum | 100 % | 0.175 in | 4.45 mm | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 6 | 304.8 m | 1000 ft | Violet | 30 AWG | 7 | 22 AWG | Multi-Conductor | 75 ░C | 0 °C | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC | Drain Wire Rip Cord | Foil | Copper Bare | Alarm Security Sound | UL Style CMP |
