C8PPS-1 Series

Catalog

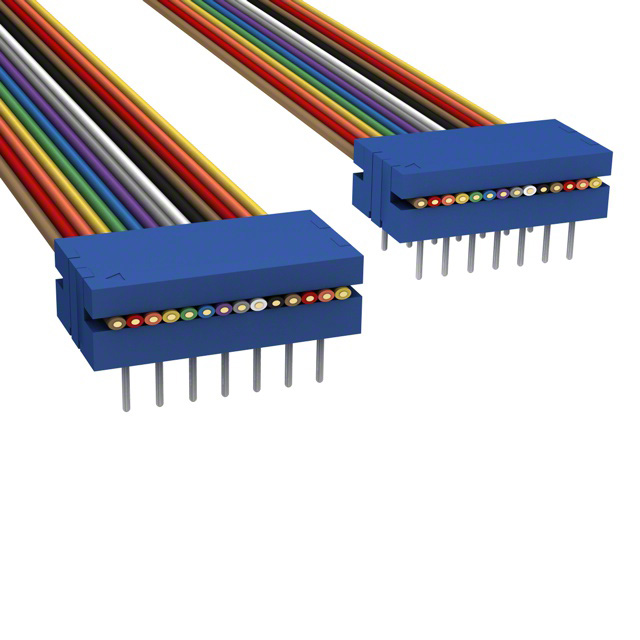

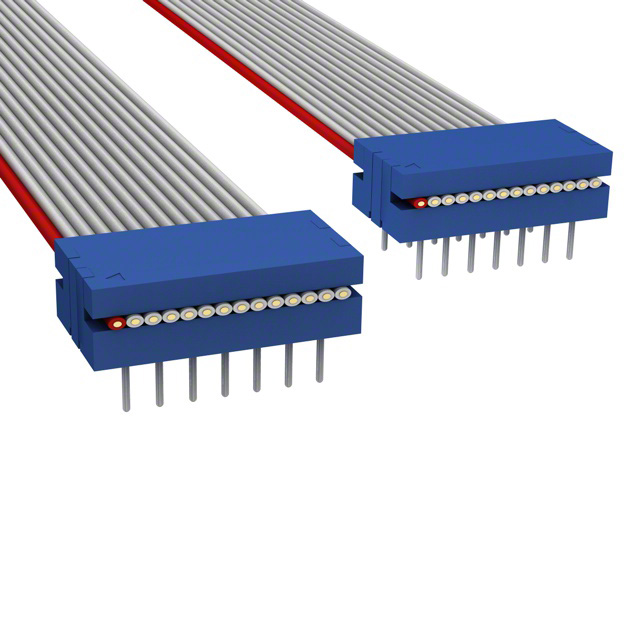

DIP CABLE - CDP16S/AE16G/CDP16S

Part	Usage	Number of Rows [custom]	Contact Finish	Pitch - Connector	Pitch - Connector	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Connector Type	Number of Positions	Color	Length [x]	Length [x]
CW Industries C8PPS-1606G	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	152.4 mm	0.5 '	6 "	DIP to DIP Reversed	16
CW Industries C8PPS-1418M	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin				DIP to DIP Reversed	14	Multiple Ribbon	457.2 mm	1.5 ft
CW Industries C8PPS-1436G	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	91.44 cm	3 ft		DIP to DIP Reversed	14
CW Industries C8PPS-1618M	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin				DIP to DIP Reversed	16	Multiple Ribbon	457.2 mm	1.5 ft
CW Industries C8PPS-1436M	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	91.44 cm	3 ft		DIP to DIP Reversed	14	Multiple Ribbon
CW Industries C8PPS-1406G	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	152.4 mm	0.5 '	6 "	DIP to DIP Reversed	14
CW Industries C8PPS-1406M	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	152.4 mm	0.5 '	6 "	DIP to DIP Reversed	14	Multiple Ribbon
CW Industries C8PPS-1606M	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	152.4 mm	0.5 '	6 "	DIP to DIP Reversed	16	Multiple Ribbon
CW Industries C8PPS-1618G	Board In Socket (0.3")	2	Tin	0.1 in	2.54 mm	Unshielded	0.05 in	1.27 mm	IDC	2.54 µm	100 µin				DIP to DIP Reversed	16		457.2 mm	1.5 ft
