R14101 Series

Catalog

BNC / STRAIGHT PLUG CLAMP TYPE C

Part	Voltage Rating	Body Material	Dielectric Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Mating Cycles	Housing Color	Cable Group	Cable Group	Connector Type	Mounting Type	Shield Termination	Center Contact Material	Contact Termination	Connector Style	Impedance	Fastening Type	Number of Ports	Frequency - Max [Max]
Radiall USA, Inc. R141011000W	500 V	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Gold	500	Silver	RG-59	62	Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	4 GHz
Radiall USA, Inc. R141012000W	500 V	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-55 C	155 C	Gold	500	Silver	RG-59	62	Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	1.5 GHz

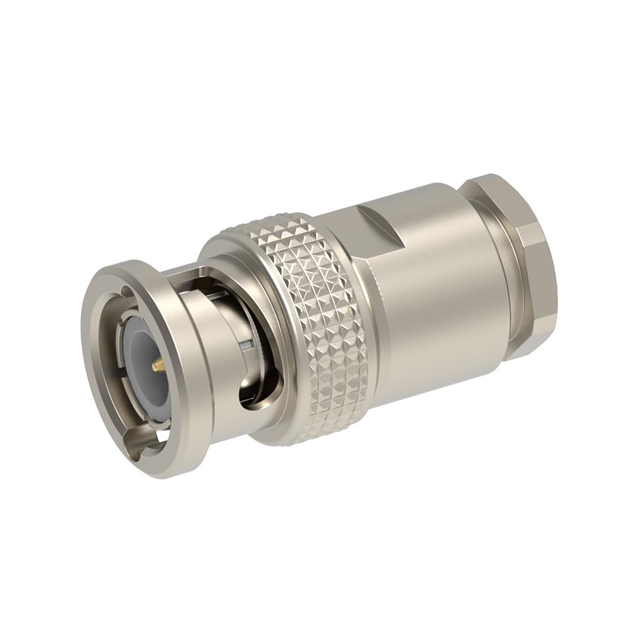

Radiall USA, Inc. R141011000	500 V	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Gold	500	Silver	RG-59	62	Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	4 GHz

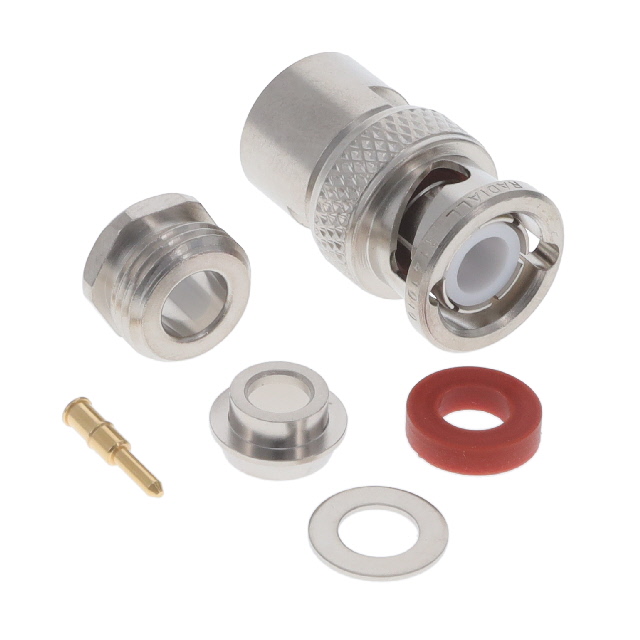

Radiall USA, Inc. R141010000	500 V	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Gold	500	Silver	141 142 223 400 RG-58		Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	4 GHz
Radiall USA, Inc. R141018000W	500 V	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Gold	500	Silver	214 225 393 RG-213		Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	4 GHz

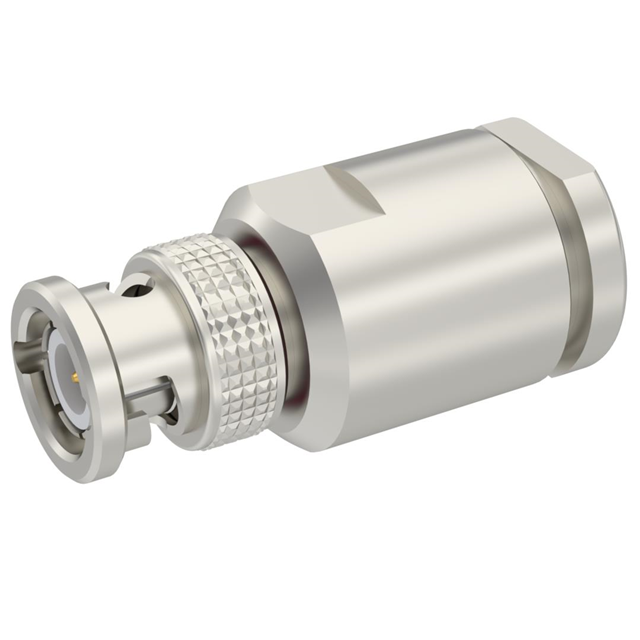

Radiall USA, Inc. R141018000	500 V	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Gold	500	Silver	214 225 393 RG-213		Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	4 GHz
Radiall USA, Inc. R141013000W		Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Gold	500	Silver	RG-59	62	Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	4 GHz
Radiall USA, Inc. R141013000		Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Gold	500	Silver	RG-59	62	Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	4 GHz
Radiall USA, Inc. R141010000W	500 V	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Gold	500	Silver	141 142 223 400 RG-58		Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	4 GHz
Radiall USA, Inc. R141012000	500 V	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-55 C	155 C	Gold	500	Silver	RG-59	62	Plug Male Pin	Free Hanging (In-Line)	Clamp	Brass	Solder	BNC	50 Ohms	Bayonet Lock	1	1.5 GHz
