TPS65132S Series

Split-Rail, Single Inductor Dual Output Converter with Positive and Negative Outputs

Catalog

Split-Rail, Single Inductor Dual Output Converter with Positive and Negative Outputs

Part	Supplier Device Package	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Voltage - Output	Voltage - Output [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Regulator Topology	Frequency - Switching	Board Type	Voltage - Output	Supplied Contents	Current - Output	Utilized IC / Part	Main Purpose	Outputs and Type	Outputs and Type
Texas Instruments TPS65132B2YFFR	15-DSBGA	Converter TFT LCD	85 °C	-40 °C	Surface Mount	2	±4V	6 VDC	2.5 V	5.5 V	15-UFBGA DSBGA
Texas Instruments TPS65132L0YFFR	15-DSBGA	Converter TFT LCD	85 °C	-40 °C	Surface Mount	2	±4V	6 VDC	2.5 V	5.5 V	15-UFBGA DSBGA
Texas Instruments TPS65132A0YFFR	15-DSBGA	Converter TFT LCD	85 °C	-40 °C	Surface Mount	2	±4V	6 VDC	2.5 V	5.5 V	15-UFBGA DSBGA

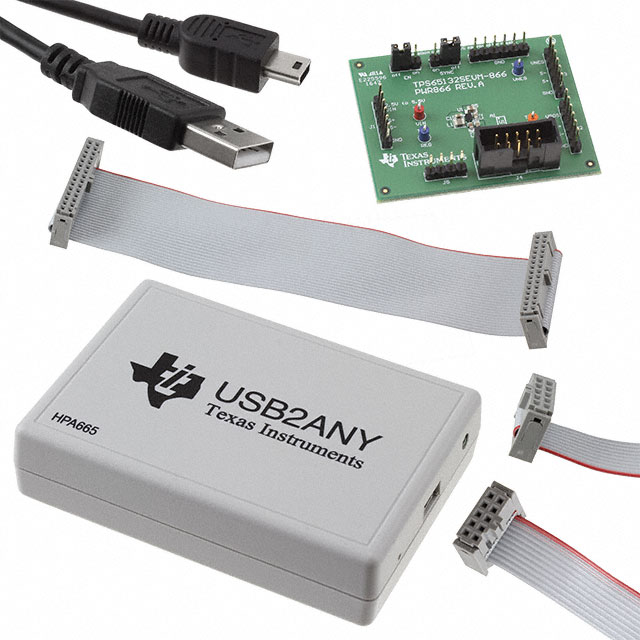

Texas Instruments TPS65132SEVM-866									2.5 V	5.5 V		Buck	1.6 MHz	Fully Populated	5.4 V	Board(s)	40 mA	TPS65132	Special Purpose DC/DC LCD Supply	2	Non-Isolated
Texas Instruments TPS65132BYFFR	15-DSBGA	Converter TFT LCD	85 °C	-40 °C	Surface Mount	2	±4V	6 VDC	2.5 V	5.5 V	15-UFBGA DSBGA

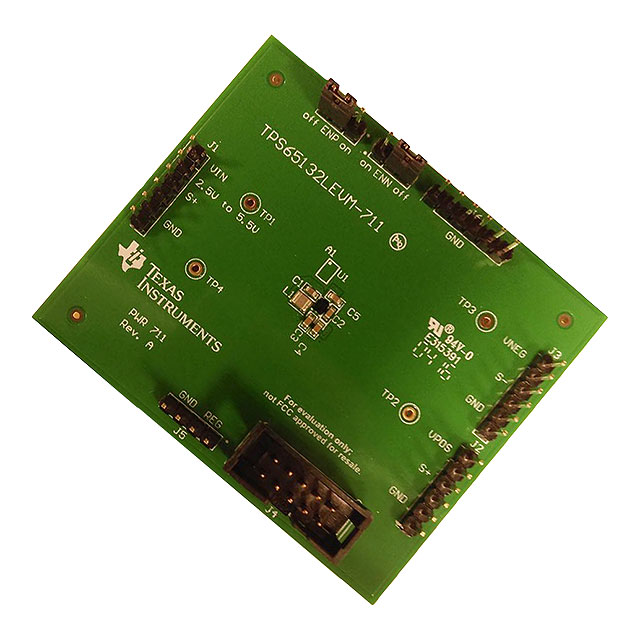

Texas Instruments TPS65132LEVM-711									2.5 V	5.5 V		Buck	1.6 MHz	Fully Populated	5.4 V	Board(s)	40 mA	TPS65132	Special Purpose DC/DC LCD Supply	2	Non-Isolated
Texas Instruments TPS65132T6YFFR	15-DSBGA	Converter TFT LCD	85 °C	-40 °C	Surface Mount	2	±4V	6 VDC	2.5 V	5.5 V	15-UFBGA DSBGA
Texas Instruments TPS65132AYFFR	15-DSBGA	Converter TFT LCD	85 °C	-40 °C	Surface Mount	2	±4V	6 VDC	2.5 V	5.5 V	15-UFBGA DSBGA
Texas Instruments TPS65132LYFFR	15-DSBGA	Converter TFT LCD	85 °C	-40 °C	Surface Mount	2	±4V	6 VDC	2.5 V	5.5 V	15-UFBGA DSBGA

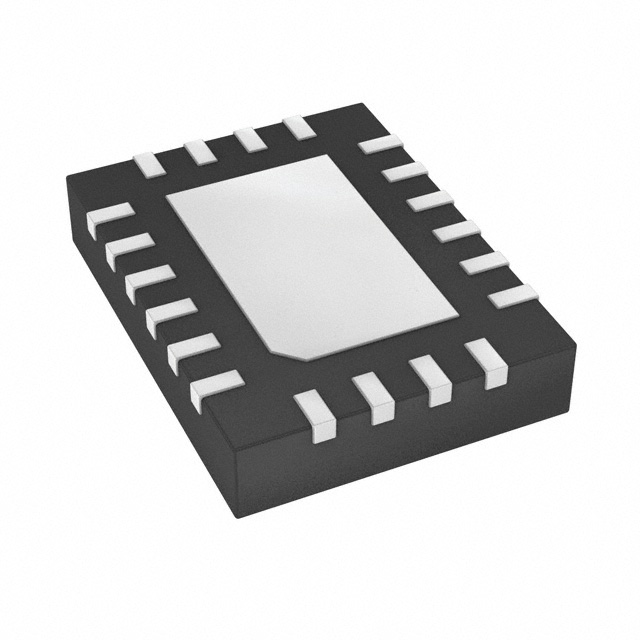

Texas Instruments TPS65132WRVCR		Converter TFT LCD	85 °C	-40 °C	Surface Mount	2	±4V	6 VDC	2.5 V	5.5 V	20-WFQFN Exposed Pad

Catalog

Split-Rail, Single Inductor Dual Output Converter with Positive and Negative Outputs

Key Features

• Input Voltage Range: 2.5 V to 5.5 VVPOSBoost Converter: 4 V to 6 V (0.1-V step)VNEGInverting Buck-Boost Converter: –6 V to –4 V (0.1-V step)Maximum Output Current: 80 mA or 150 mAOutstanding Combined Efficiency> 85% at IOUT> 10 mA> 90% at IOUT> 40 mAExcellent PerformanceOutstanding Transient Response1% Output Voltage Accuracy over Full Temperature RangeI2C InterfaceProgrammable Power-Up / -Down Sequencing OptionsFlexible Output Voltage ProgrammingProgrammable Active Output Discharge> 1000x Programmable Non-Volatile MemoryUnder-Voltage Lock-Out and Thermal ProtectionTwo Package Options15-Ball CSP Package20-Pins QFN PackageInput Voltage Range: 2.5 V to 5.5 VVPOSBoost Converter: 4 V to 6 V (0.1-V step)VNEGInverting Buck-Boost Converter: –6 V to –4 V (0.1-V step)Maximum Output Current: 80 mA or 150 mAOutstanding Combined Efficiency> 85% at IOUT> 10 mA> 90% at IOUT> 40 mAExcellent PerformanceOutstanding Transient Response1% Output Voltage Accuracy over Full Temperature RangeI2C InterfaceProgrammable Power-Up / -Down Sequencing OptionsFlexible Output Voltage ProgrammingProgrammable Active Output Discharge> 1000x Programmable Non-Volatile MemoryUnder-Voltage Lock-Out and Thermal ProtectionTwo Package Options15-Ball CSP Package20-Pins QFN Package

Description

The TPS65132 family is designed to supply positive/negative driven applications. The device uses a single inductor scheme for both outputs to provide the user smallest solution size, a small bill-of-material as well as high efficiency. The devices offer best line and load regulation at low noise. With its input voltage range of 2.5 V to 5.5 V, it is optimized for products powered by single-cell batteries (Li-Ion, Ni-Li, Li-Polymer) and fixed 3.3-V and 5-V rails. The TPS656132 family provides 80 mA and 150 mA output current options with programmability to 40 mA. There are both CSP and QFN package options available. The TPS65132 family is designed to supply positive/negative driven applications. The device uses a single inductor scheme for both outputs to provide the user smallest solution size, a small bill-of-material as well as high efficiency. The devices offer best line and load regulation at low noise. With its input voltage range of 2.5 V to 5.5 V, it is optimized for products powered by single-cell batteries (Li-Ion, Ni-Li, Li-Polymer) and fixed 3.3-V and 5-V rails. The TPS656132 family provides 80 mA and 150 mA output current options with programmability to 40 mA. There are both CSP and QFN package options available.
