R11216 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

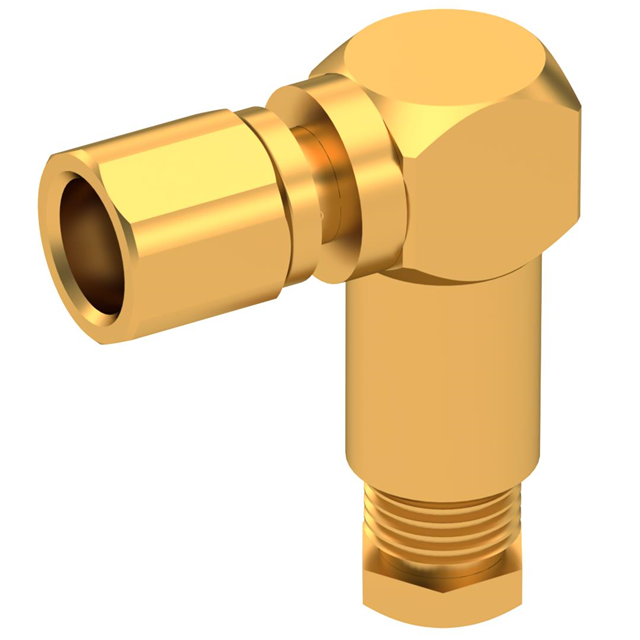

SMC / RIGHT ANGLE PLUG CLAMP TYP
| Part | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Mating Cycles | Dielectric Material | Body Material | Mounting Type | Connector Type | Impedance | Contact Termination | Connector Style | Cable Group | Cable Group | Number of Ports | Center Contact Material | Housing Color | Shield Termination | Fastening Type | Frequency - Max [Max] | Insertion Loss | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | 100 °C | -55 C | 250 V | 500 | Polytetrafluoroethylene (PTFE) | Brass | Free Hanging (In-Line) Right Angle | Female Socket Plug | 50 Ohms | Solder | SMC | 196 | RG-178 | 1 | Beryllium Copper | Gold | Clamp | Threaded | 10 GHz | ||
 Radiall USA, Inc. | Gold | Gold | 100 °C | -55 C | 335 V | 500 | Polytetrafluoroethylene (PTFE) | Brass | Free Hanging (In-Line) Right Angle | Female Socket Plug | 50 Ohms | Solder | SMC | RG-174 RG-179 RG-316 | 1 | Beryllium Copper | Gold | Clamp | Threaded | 10 GHz | 0.5 dB | 1 Connector 1 Ferrule |
