DYL060 Series

Catalog

AC/DC CONVERTER 5V +/-12V 60W

Part	Current - Output 2	Features	Mounting Type	Current - Output 3	Voltage - Output 1	Current - Output 1	Applications	Power (Watts)	Type	Number of Outputs	Voltage - Output 3	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Voltage - Output 4	Current - Output 4
Tri-Mag, LLC DYL060-1	3 A	Universal Input	Chassis Mount	300 mA	5 V	3 A	ITE (Commercial)	60 W	Open Frame	3	-12 V	264 VAC	90 VAC	12 V	30 mm	3 "	127 mm	5 "	76.2 mm	1.18 in	70 °C
Tri-Mag, LLC DYL060-8	500 mA	Universal Input	Chassis Mount		15 V	3.8 A	ITE (Commercial)	60 W	Open Frame	2		264 VAC	90 VAC	5 V	30 mm	3 "	127 mm	5 "	76.2 mm	1.18 in	70 °C
Tri-Mag, LLC DYL060-9	500 mA	Universal Input	Chassis Mount		24 V	2.4 A	ITE (Commercial)	60 W	Open Frame	2		264 VAC	90 VAC	5 V	30 mm	3 "	127 mm	5 "	76.2 mm	1.18 in	70 °C
Tri-Mag, LLC DYL060-14		Universal Input	Chassis Mount		48 V	1.25 A	ITE (Commercial)	60 W	Open Frame	1		264 VAC	90 VAC		30 mm	3 "	127 mm	5 "	76.2 mm	1.18 in	70 °C

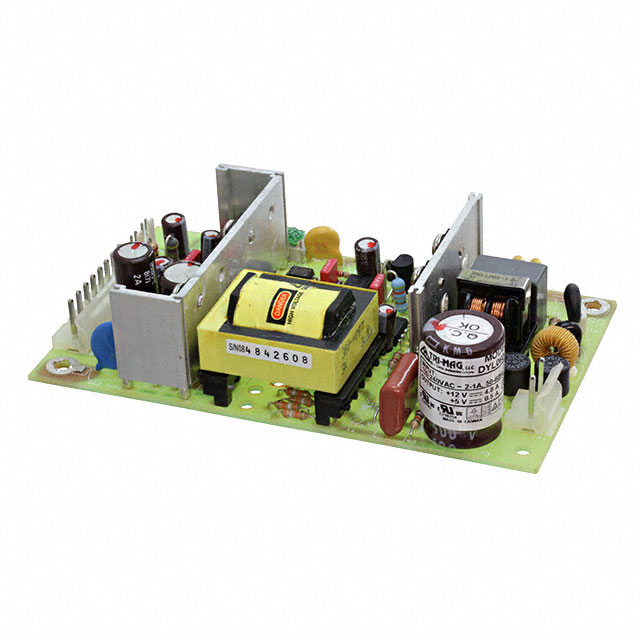

Tri-Mag, LLC DYL060-7	500 mA	Universal Input	Chassis Mount		12 V	4.8 A	ITE (Commercial)	60 W	Open Frame	2		264 VAC	90 VAC	5 V	30 mm	3 "	127 mm	5 "	76.2 mm	1.18 in	70 °C
Tri-Mag, LLC DYL060-3	3.5 A	Universal Input	Chassis Mount		5 V	3 A	ITE (Commercial)	60 W	Open Frame	2		264 VAC	90 VAC	12 V	30 mm	3 "	127 mm	5 "	76.2 mm	1.18 in	70 °C
Tri-Mag, LLC DYL060-9-1		Universal Input	Chassis Mount		24 V	2.7 A	ITE (Commercial)	60 W	Open Frame	1		264 VAC	90 VAC		30 mm	3 "	127 mm	5 "	76.2 mm	1.18 in	70 °C
Tri-Mag, LLC DYL060-01-1	3 A	Universal Input	Chassis Mount	300 mA	5 V	3 A	ITE (Commercial)	60 W	Open Frame	4	-12 V	264 VAC	90 VAC	12 V	30 mm	3 "	127 mm	5 "	76.2 mm	1.18 in	70 °C	-5 V	300 mA
