TPS8268120 Series

1.6-A, HIGH-EFFICIENCY MicroSiP™ STEP-DOWN CONVERTER Module

Catalog

1.6-A, HIGH-EFFICIENCY MicroSiP™ STEP-DOWN CONVERTER Module

Part	Voltage - Input (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Output 1	Efficiency	Mounting Type	Supplier Device Package	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type

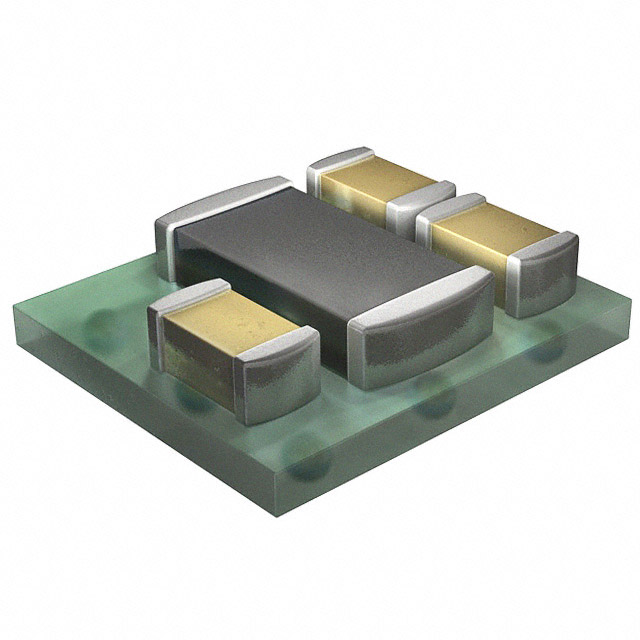

Texas Instruments TPS8268120SIPR	5.5 V	ITE (Commercial)	2.5 V	0.09 "	2.3 mm	2.9 mm	0.04 in	0.11 in	1 mm	1	1.2 V	90 %	Surface Mount	9-USIP	1.6 A	OCP OTP Remote On/Off UVLO	85 °C	-40 °C	9-SMD Module	Non-Isolated PoL Module
Texas Instruments TPS8268120SIPT	5.5 V	ITE (Commercial)	2.5 V	0.09 "	2.3 mm	2.9 mm	0.04 in	0.11 in	1 mm	1	1.2 V	90 %	Surface Mount	9-USIP	1.6 A	OCP OTP Remote On/Off UVLO	85 °C	-40 °C	9-SMD Module	Non-Isolated PoL Module

Catalog

1.6-A, HIGH-EFFICIENCY MicroSiP™ STEP-DOWN CONVERTER Module

Key Features

• Wide VINRange From 2.5V to 5.5VTotal Solution Size < 6.7 mm2Sub 1-mm Profile Solution±1.5% DC Voltage AccuracyUp to 1600-mA Load CurrentUp to 90% EfficiencyFixed Output Voltage:TPS8268180: 1.80VTPS8268150: 1.50VTPS8268120: 1.20VTPS8268105: 1.05VTPS8268090: 0.90VLow EMI by Spread Spectrum PWM FrequencyDitheringBest in ClassLoad and Line Transient ResponseInternal Soft StartCurrent Overload and Thermal Shutdown ProtectionWide VINRange From 2.5V to 5.5VTotal Solution Size < 6.7 mm2Sub 1-mm Profile Solution±1.5% DC Voltage AccuracyUp to 1600-mA Load CurrentUp to 90% EfficiencyFixed Output Voltage:TPS8268180: 1.80VTPS8268150: 1.50VTPS8268120: 1.20VTPS8268105: 1.05VTPS8268090: 0.90VLow EMI by Spread Spectrum PWM FrequencyDitheringBest in ClassLoad and Line Transient ResponseInternal Soft StartCurrent Overload and Thermal Shutdown Protection

Description

The TPS8268x device is a complete DC/DC step-down power supply optimized for small solution size. Included in the package are the switching regulator, inductor and input/output capacitors. Integration of all passive components enables a tiny solution size of only 6.7mm2. The TPS8268x is based on a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications in which high load currents in a very small solution size and height are required. The TPS8268x is optimized for high efficiency and low output voltage ripple and supports up to 1600-mA load current. With an input voltage range of 2.5-V to 5.5-V, the device supports applications powered by Li-Ion batteries as well as 5-V and 3.3-V rails. The TPS8268x operates at a 5.5-MHz switching frequency with spread spectrum capability. For noise-sensitive applications, this provides a lower noise regulated output, as well as low noise at the input. The device supports a fixed output voltage, requiring no external feedback network. These features, combined with high PSRR and AC load regulation performance, make this device suitable to replace a linear regulator to obtain better power conversion efficiency with the same size. The TPS8268x is packaged in a compact (2.3mm × 2.9mm) and low profile BGA package suitable for automated assembly by standard surface mount equipment. The TPS8268x device is a complete DC/DC step-down power supply optimized for small solution size. Included in the package are the switching regulator, inductor and input/output capacitors. Integration of all passive components enables a tiny solution size of only 6.7mm2. The TPS8268x is based on a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications in which high load currents in a very small solution size and height are required. The TPS8268x is optimized for high efficiency and low output voltage ripple and supports up to 1600-mA load current. With an input voltage range of 2.5-V to 5.5-V, the device supports applications powered by Li-Ion batteries as well as 5-V and 3.3-V rails. The TPS8268x operates at a 5.5-MHz switching frequency with spread spectrum capability. For noise-sensitive applications, this provides a lower noise regulated output, as well as low noise at the input. The device supports a fixed output voltage, requiring no external feedback network. These features, combined with high PSRR and AC load regulation performance, make this device suitable to replace a linear regulator to obtain better power conversion efficiency with the same size. The TPS8268x is packaged in a compact (2.3mm × 2.9mm) and low profile BGA package suitable for automated assembly by standard surface mount equipment.
