0929-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

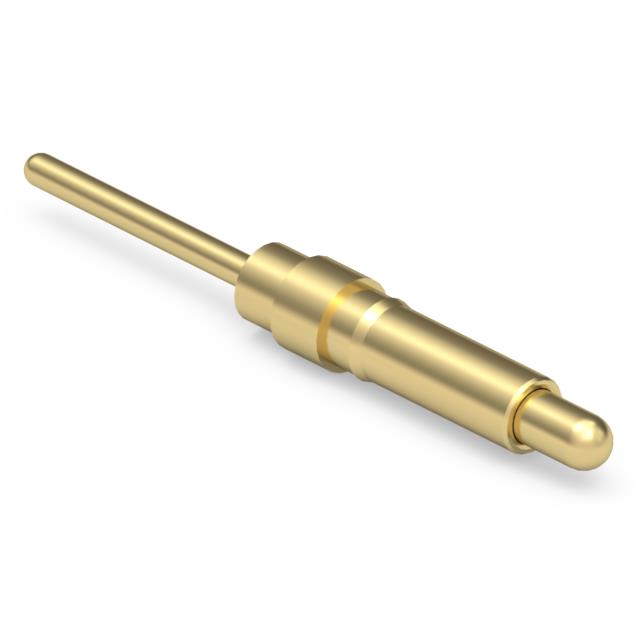

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mating Cycles | Current Rating (Amps) | Pad Layout Dimension | Pad Layout Dimension | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Minimum Working Height | Minimum Working Height | Operating Force - Mid Compression | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 1000000 | 5.2 A | 0.072 in | 1.83 mm | 0.042 in | 1.07 mm | Gold | 0.34 in | 8.64 mm | Through Hole | 0.285 in | 7.24 mm | 60 gf | 10 gf | 0.313 in | 7.94 mm | Brass Alloy |
