ACFL-6212 Series

Catalog

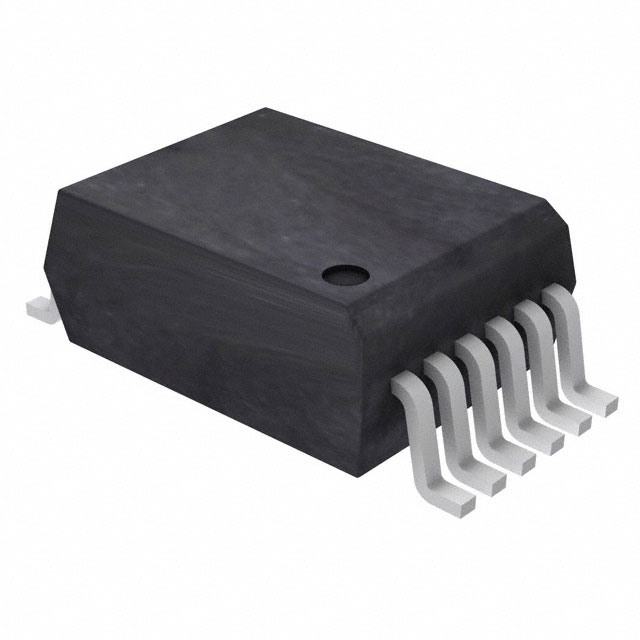

OPTOISO 5KV 2CH PSH PULL SO12

Part	Package / Case	Data Rate	Number of Channels	Inputs - Side 1/Side 2	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Rise / Fall Time (Typ)	Output Type	Common Mode Transient Immunity (Min) [Min]	Propagation Delay tpLH / tpHL (Max) [Max]	Voltage - Forward (Vf) (Typ)	Qualification	Current - Output / Channel	Current - DC Forward (If) (Max) [Max]	Input Type
Broadcom Limited ACFL-6212T-560E	12-BSOP (0.295" 7.50mm Width)	15 Mbps	2	1	12-SO	5.5 V	3 V	Automotive	125 °C	-40 C	Surface Mount	10 ns	Push-Pull Totem Pole	25 kV/µs	100 ns	1.5 V	AEC-Q100	10 mA	20 mA	DC
Broadcom Limited ACFL-6212T-500E	12-BSOP (0.295" 7.50mm Width)	15 Mbps	2	1	12-SO	5.5 V	3 V	Automotive	125 °C	-40 C	Surface Mount	10 ns	Push-Pull Totem Pole	15 kV/µs	100 ns	1.5 V	AEC-Q100	10 mA	20 mA	DC
Broadcom Limited ACFL-6212U-060E	12-BSOP (0.295" 7.50mm Width)		2	1	12-SO	5.5 V	3 V		125 °C	-40 C	Surface Mount	10 ns	Push-Pull Totem Pole	25 kV/µs	100 ns	1.5 V		10 mA	20 mA	DC
Broadcom Limited ACFL-6212U-500E	12-BSOP (0.295" 7.50mm Width)		2	1	12-SO	5.5 V	3 V		125 °C	-40 C	Surface Mount	10 ns	Push-Pull Totem Pole	25 kV/µs	100 ns	1.5 V		10 mA	20 mA	DC
