76302WS Series
Manufacturer: Belden Inc.
Beta
⌘K

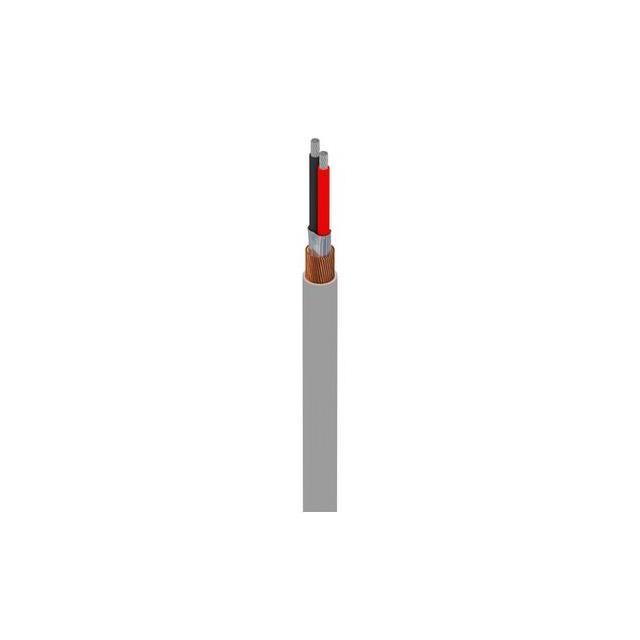

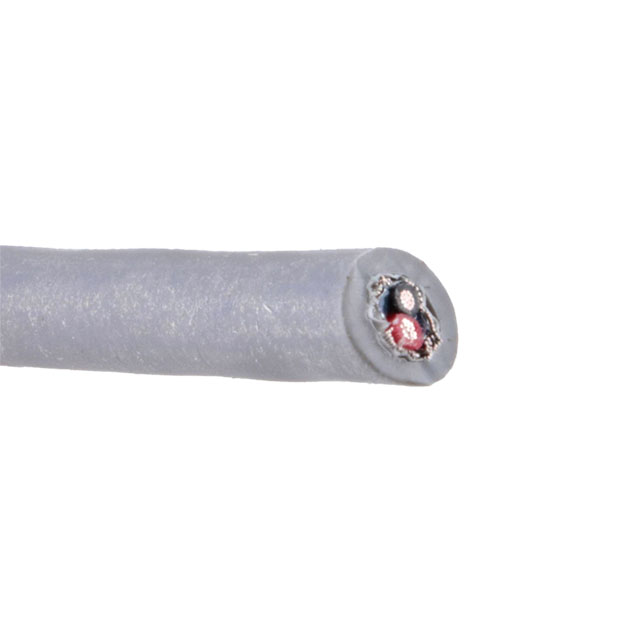

CABLE 2COND 22AWG CHRM SHD FEET
| Part | Spool Size [x] | Spool Size [x] | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Wire Gauge | Voltage | Features | Length | Number of Conductors | Shield Type | Jacket (Insulation) Material | Jacket Color | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 304.8 m | 1000 ft | Aluminum Copper Tinned | 90 % 100 % | 1.016 mm | 0.04 in | Multi-Conductor | Copper Tinned | 34 AWG | 19 | 5.28 mm | 0.208 " | Poly-Vinyl Chloride (PVC) | 22 AWG | 300 VDC | Oil Resistant | Enter Number of Feet in Order Quantity | 2 | Foil Spiral | Poly-Vinyl Chloride (PVC) | Chrome | ||||
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 1.016 mm | 0.04 in | Multi-Conductor | Copper Tinned | 34 AWG | 19 | 5.28 mm | 0.208 " | Poly-Vinyl Chloride (PVC) | 22 AWG | 300 VDC | Oil Resistant | 2 | Foil Spiral | Poly-Vinyl Chloride (PVC) | Chrome | 100 ft | 30.5 m | |||||
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 1.016 mm | 0.04 in | Multi-Conductor | Copper Tinned | 34 AWG | 19 | 5.28 mm | 0.208 " | Poly-Vinyl Chloride (PVC) | 22 AWG | 300 VDC | Oil Resistant | 2 | Foil Spiral | Poly-Vinyl Chloride (PVC) | Chrome | 152.4 m | 500 ft |
