8302 Series
Manufacturer: Belden Inc.
Beta
⌘K

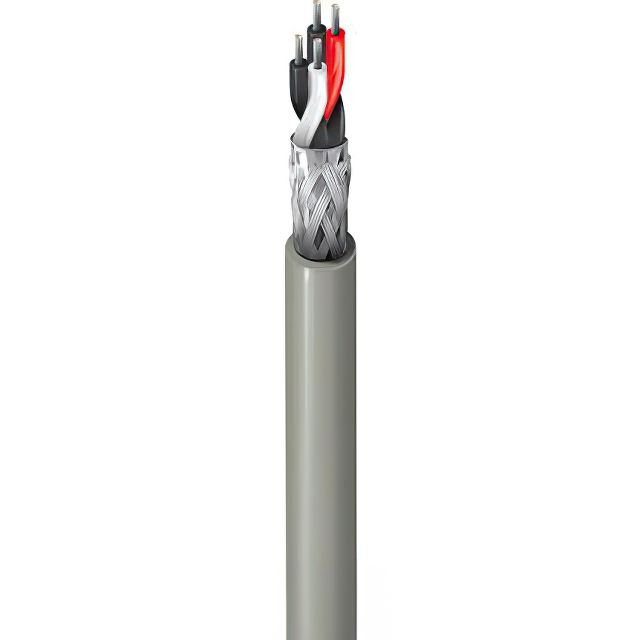

MULTI-PAIR 4COND 22AWG
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Ratings | Wire Gauge | Number of Conductors | Shield Type | Voltage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Length | Length | Usage | Conductor Insulation | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -30 ░C | 0.035 in | 0.889 mm | Chrome | UL Style 2464 | 22 AWG | 4 | Braid Foil | 300 VDC | Poly-Vinyl Chloride (PVC) | 0.28 in | 7.11 mm | Copper Tinned | 304.8 m | 1000 ft | Computer | Poly-Vinyl Chloride (PVC) | Multi-Pair | 30 AWG | 7 | ||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -30 ░C | 0.035 in | 0.889 mm | Chrome | UL Style 2464 | 22 AWG | 4 | Braid Foil | Poly-Vinyl Chloride (PVC) | 0.28 in | 7.11 mm | Copper Tinned | Computer | Poly-Vinyl Chloride (PVC) | Multi-Pair | 30 AWG | 7 | 100 ft | 30.5 m |
