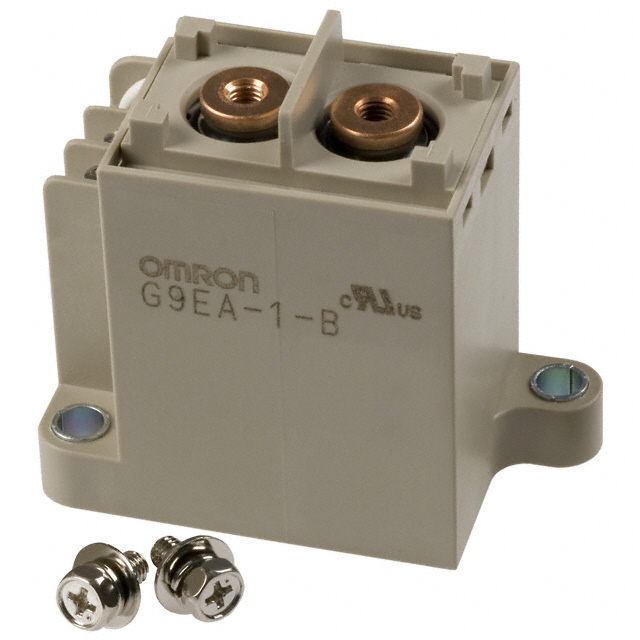

G9EA-1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 48V
| Part | Must Release Voltage | Coil Current | Seal Rating | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Must Operate Voltage | Coil Voltage | Relay Type | Contact Rating (Current) | Contact Form | Operate Time | Load - Max Switching | Release Time | Termination Style | Mounting Type | Coil Resistance | Coil Type | Load - Max Switching [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 3.84 VDC | 102 mA | Sealed - Fully | 400 VDC | -40 °C | 70 °C | 36 VDC | 48 VDC | General Purpose | 30 A | SPST-NO (1 Form A) | 50 ms | 12000 W | 30 ms | Screw Terminal | Chassis Mount | 469 Ohms | Non Latching | |
 Omron Electronics Inc-EMC Div | 3.84 VDC | 102 mA | Sealed - Fully | 400 VDC | -40 °C | 70 °C | 36 VDC | 48 VDC | General Purpose | 30 A | SPST-NO (1 Form A) | 50 ms | 30 ms | Wire Leads | Chassis Mount | 469 Ohms | Non Latching | ||
Omron Electronics Inc-EMC Div | 0.96 VDC | 417 mA | Sealed - Fully | 400 VDC | -40 °C | 70 °C | 9 VDC | 12 VDC | General Purpose | 30 A | SPST-NO (1 Form A) | 50 ms | 12000 W | 30 ms | Screw Terminal | Chassis Mount | 28.8 Ohms | Non Latching | |
 Omron Electronics Inc-EMC Div | 8 VDC | 53.6 mA | Sealed - Fully | 400 VDC | -40 °C | 70 °C | 75 VDC | 100 VDC | General Purpose | 100 A | SPST-NO (1 Form A) | 50 ms | 40000 W | 30 ms | Wire Leads | Chassis Mount | 1.86 kOhms | Non Latching | |
Omron Electronics Inc-EMC Div | 0.96 VDC | 417 mA | Sealed - Fully | 400 VDC | -40 °C | 70 °C | 9 VDC | 12 VDC | General Purpose | 60 A | SPST-NO (1 Form A) | 50 ms | 30 ms | Screw Terminal | Chassis Mount | 28.8 Ohms | Non Latching | 24000 W | |
 Omron Electronics Inc-EMC Div | 0.96 VDC | 417 mA | Sealed - Fully | 400 VDC | -40 °C | 70 °C | 9 VDC | 12 VDC | General Purpose | 30 A | SPST-NO (1 Form A) | 50 ms | 12000 W | 30 ms | Wire Leads | Chassis Mount | 28.8 Ohms | Non Latching | |
Omron Electronics Inc-EMC Div | 0.96 VDC | 417 mA | Sealed - Fully | 400 VDC | -40 °C | 70 °C | 9 VDC | 12 VDC | General Purpose | 100 A | SPST-NO (1 Form A) | 50 ms | 40000 W | 30 ms | Wire Leads | Chassis Mount | 28.8 Ohms | Non Latching | |
Omron Electronics Inc-EMC Div | 3.84 VDC | 102 mA | Sealed - Fully | 400 VDC | -40 °C | 70 °C | 36 VDC | 48 VDC | General Purpose | 100 A | SPST-NO (1 Form A) | 50 ms | 40000 W | 30 ms | Wire Leads | Chassis Mount | 469 Ohms | Non Latching |
