2102351 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN RCPT MALE 8POS SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Number of Positions | Shell Material | Shell Finish | Connector Type | Current Rating (Amps) | Contact Material | Mounting Feature | Primary Material | Color | Orientation | Applications | Shielding | Termination | Voltage Rating | Ingress Protection | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

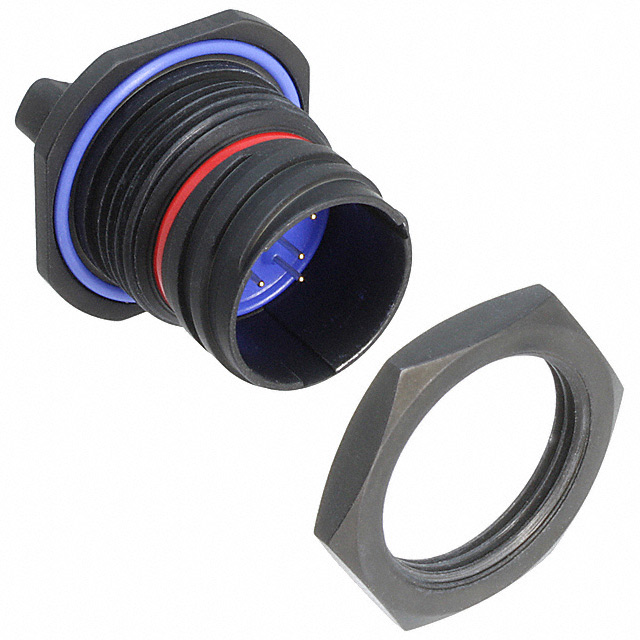

 TE Connectivity Aerospace, Defense and Marine | 170 °C | -65 ░C | Thermoplastic | 8 | Aluminum | Black Zinc Nickel | Male Pins Receptacle | 5 A | Beryllium Copper | Bulkhead - Front Side Nut | Metal | Black | B | Aviation Marine Military | Shielded | Solder | 500 VAC | IP67 - Dust Tight Waterproof | 8 |

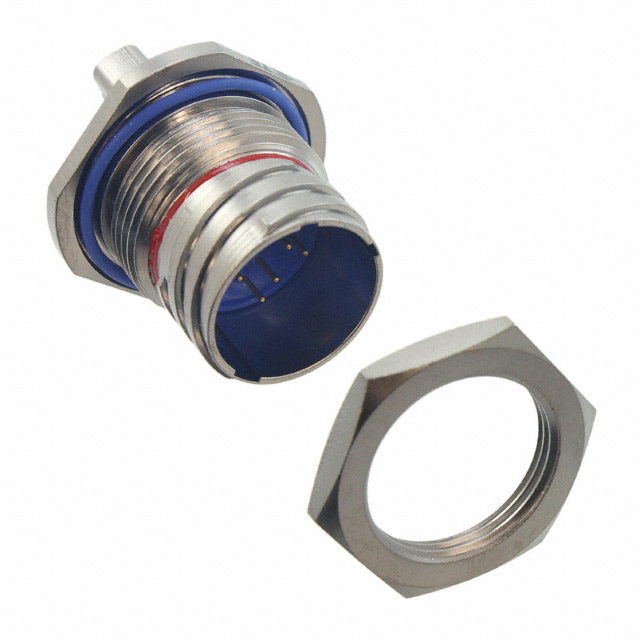

 TE Connectivity Aerospace, Defense and Marine | 170 °C | -65 ░C | Thermoplastic | 8 | Aluminum | Nickel | Male Pins Receptacle | 5 A | Beryllium Copper | Bulkhead - Front Side Nut | Metal | Silver | N | Aviation Marine Military | Shielded | Solder | 500 VAC | IP67 - Dust Tight Waterproof | 8 |
