Tl0 Series Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Actuator Type	Mounting Type	Current Rating (Amps)	Voltage Rating - DC	Circuit	Switch Function	Electrical Life	Voltage Rating - AC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
LITTELFUSE 12TL4A2	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT	On-Mom	150000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	-55 C	150 °C
LITTELFUSE 11TL4A4	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT	On-Mom	150000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	-55 C	150 °C

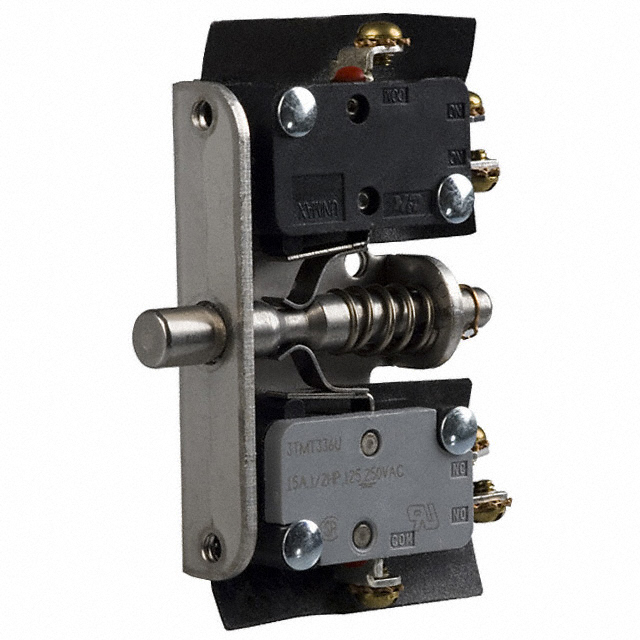

LITTELFUSE 23TL604	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT x 2	On-Mom	150000 Cycles	125 V	Screw Terminal	-55 C	150 °C
LITTELFUSE 11TL604	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT	On-Mom	150000 Cycles	125 V	Screw Terminal	-55 C	150 °C
LITTELFUSE 23TL4A4	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT x 2	On-Mom	150000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	-55 C	150 °C

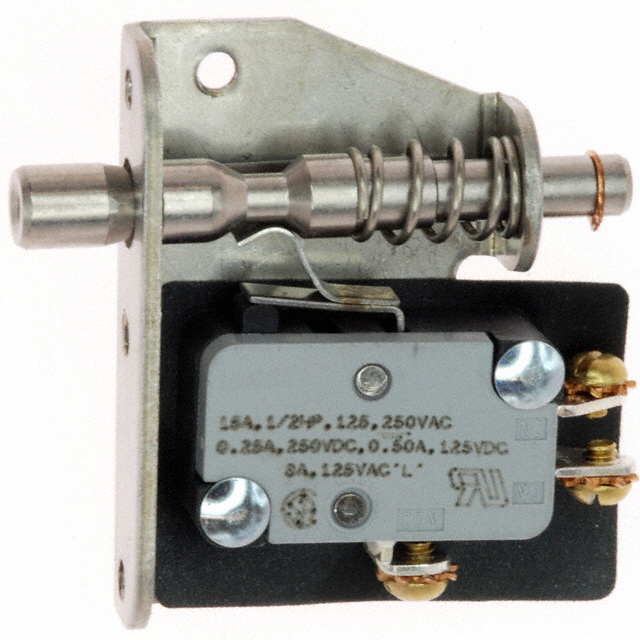

LITTELFUSE 12TL604	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT	On-Mom	150000 Cycles	125 V	Screw Terminal	-55 C	150 °C
LITTELFUSE 11TL4A2	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT	On-Mom	150000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	-55 C	150 °C
LITTELFUSE 23TL602	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT x 2	On-Mom	150000 Cycles	125 V	Screw Terminal	-55 C	150 °C

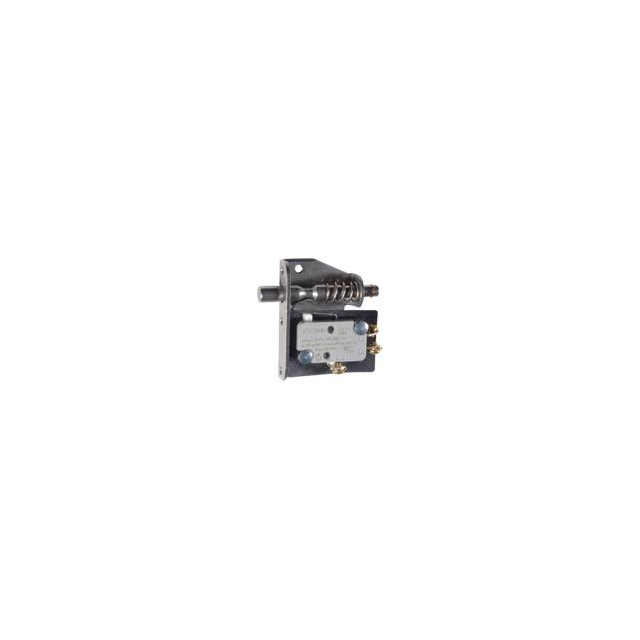

LITTELFUSE 12TL404	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT	On-Mom	150000 Cycles	125 V	Quick Connect	-55 C	150 °C
LITTELFUSE 12TL402	Push-Pull Plunger	Chassis Mount	15 A 500 mA	125 VDC	SPDT	On-Mom	150000 Cycles	125 V	Quick Connect	-55 C	150 °C
