R87F Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

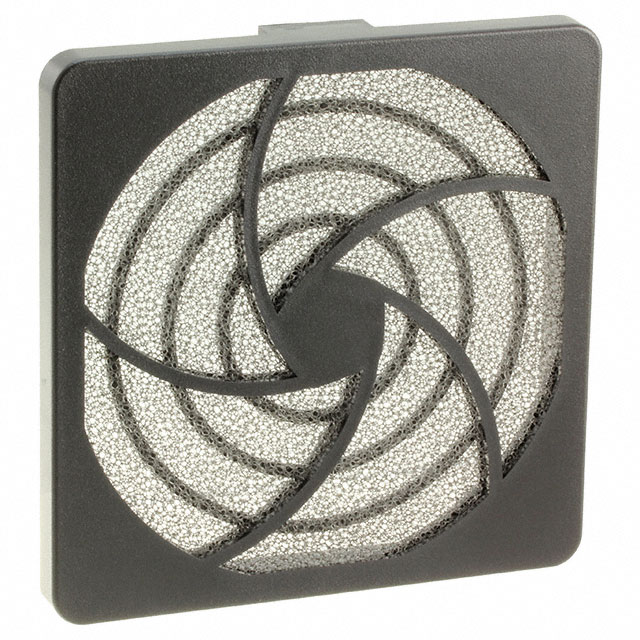

FAN FILTER FOR 80X80MM PLASTIC
| Part | Material | Fan Accessory Type | For Use With/Related Products | Features | Fits Fan Size | Weight | Weight | Operating Temperature [Min] [custom] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Operating Temperature [Max] [custom] | Voltage - Rated | Noise | Approval Agency | Material - Blade | Width [y] | RPM | Air Flow | Air Flow | Static Pressure | Static Pressure | Bearing Type | Material - Frame | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Current Rating (Amps) | Fan Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Plastic | Filter/Screen | R87F/R87T Series | Filters | 80 mm | ||||||||||||||||||||||||
Omron Electronics Inc-EMC Div | Metal | Finger Guard | R87F/R87T Series | 80 mm | |||||||||||||||||||||||||
 Omron Electronics Inc-EMC Div | 0.772 lb | 350.17 g | -30 °C | -22 °F | 70 °C | 158 °F | 200 VAC | 39 dB(A) | CSA UL | Polycarbonate (PC) | 25 mm | 2400 RPM | 2.2 mł/min | 78.5 CFM | 44.1 Pa | 0.177 in H2O | Ball | Aluminum | 120 mm | 120 mm | 14 Watts | 78 mA | Tubeaxial | 2 Terminals | |||||
Omron Electronics Inc-EMC Div | 115 VAC | 43 dB | CSA UL | 3250 RPM | 0.899 mł/min | 32.1 CFM | Ball | 8 W | 97 mA | Tubeaxial | |||||||||||||||||||
 Omron Electronics Inc-EMC Div | -30 °C | -22 °F | 70 °C | 158 °F | 115 VAC | 42 dB | CSA UL | Polycarbonate (PC) | 38 mm | 2750 RPM | 3.1 m³/min | 110.7 CFM | 93.1 Pa | 0.374 in H2O | Ball | Aluminum | 120 mm | 120 mm | 15 W | 0.18 A | Tubeaxial | 2 Terminals | |||||||
Omron Electronics Inc-EMC Div | -30 °C | -22 °F | 70 °C | 158 °F | 100 VAC | 42 dB | CSA UL | Polycarbonate (PC) | 38 mm | 2750 RPM | 3.1 m³/min | 110.7 CFM | 93.1 Pa | 0.374 in H2O | Ball | Aluminum | 120 mm | 120 mm | 15 W | 0.22 A | Tubeaxial | 2 Terminals | |||||||

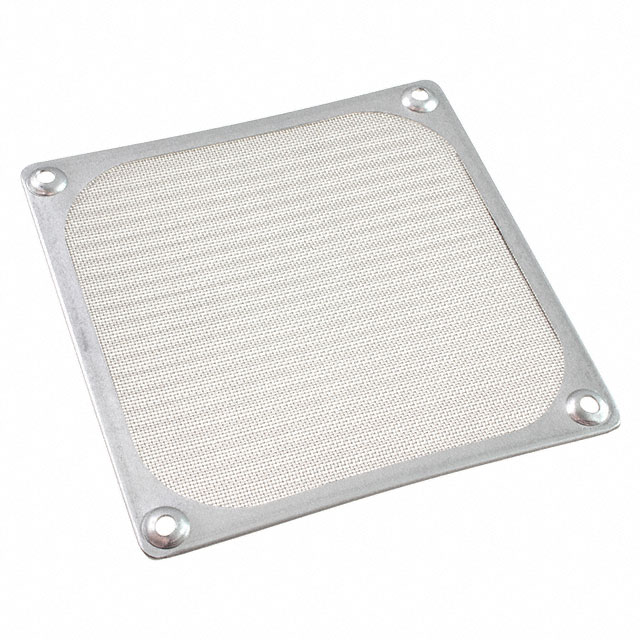

 Omron Electronics Inc-EMC Div | Aluminum | Filter/Screen | R87F/R87T Series | Filters | 120 mm | ||||||||||||||||||||||||
Omron Electronics Inc-EMC Div | 0.772 lb | 350.17 g | -30 °C | -22 °F | 70 °C | 158 °F | 200 VAC | 32 dB | CSA UL | Polycarbonate (PC) | 25 mm | 1700 RPM | 1.5 m³/min | 53.5 CFM | 19.6 Pa | 0.079 in H2O | Ball | Aluminum | 120 mm | 120 mm | 12 W | 0.055 A | Tubeaxial | 2 Terminals | |||||
Omron Electronics Inc-EMC Div | -30 °C | -22 °F | 70 °C | 158 °F | 200 VAC | 42 dB | CSA UL | Polycarbonate (PC) | 38 mm | 2750 RPM | 3.1 m³/min | 110.7 CFM | 93.1 Pa | 0.374 in H2O | Ball | Aluminum | 120 mm | 120 mm | 15 W | 100 mA | Tubeaxial | 2 Terminals | |||||||
 Omron Electronics Inc-EMC Div | -30 °C | -22 °F | 70 °C | 158 °F | 100 VAC | 36 dB | CSA UL | Polycarbonate (PC) | 25 mm | 1 m³/min | 35.7 CFM | 68.6 Pa | 0.275 in H2O | Ball | Aluminum | 11 W | Tubeaxial | 2 Terminals |
