LMZ12001EXT Series

1A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Catalog

1A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Part	Current - Output (Max) [Max]	Features	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Supplier Device Package	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Type	Control Features	Regulator Topology	Frequency - Switching [Max]	Main Purpose	Utilized IC / Part	Voltage - Output	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]
Texas Instruments LMZ12001TZE-ADJ/NOPB	1 A	UVLO	20 V	Surface Mount	125 °C	-40 °C	0.8 V	6 V	TO-PMOD-7 Power Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	92 %	TO-PMOD-7	4.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	Active High Enable
Texas Instruments LMZ12001EXTTZE/NOPB	1 A	UVLO	20 V	Surface Mount	125 °C	-55 °C	0.8 V	6 V	TO-PMOD-7 Power Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	92 %	TO-PMOD-7	4.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	Active High Enable

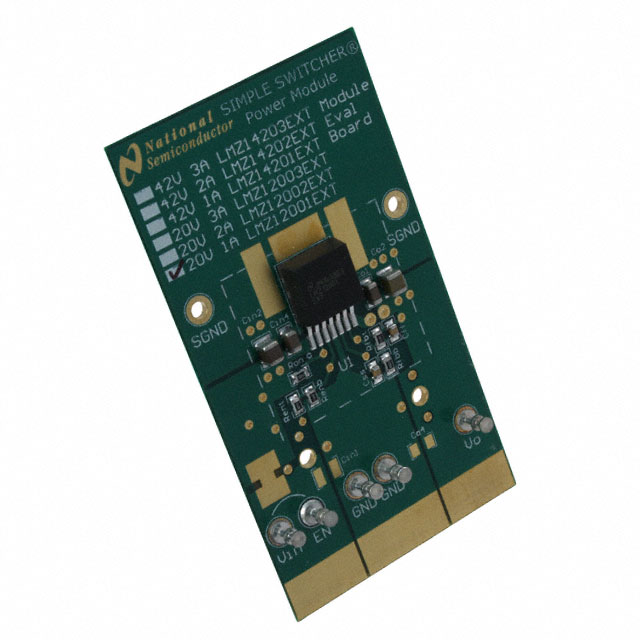

Texas Instruments LMZ12001EXTEVAL/NOPB																							Buck	1 MHz	DC/DC Step Down	LMZ12001EXT	1.8 V	Board(s)	Non-Isolated	1	Fully Populated	1 A	4.5 V	20 V
Texas Instruments LMZ12001EVAL/NOPB																							Buck	1 MHz	DC/DC Step Down	LMZ12001	1.8 V	Board(s)	Non-Isolated	1	Fully Populated	1 A	4.5 V	20 V
Texas Instruments LMZ12001EXTTZX/NOPB	1 A	UVLO	20 V	Surface Mount	125 °C	-55 °C	0.8 V	6 V	TO-PMOD-7 Power Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	92 %	TO-PMOD-7	4.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	Active High Enable
Texas Instruments LMZ12001EXTTZ/NOPB	1 A	UVLO	20 V	Surface Mount	125 °C	-55 °C	0.8 V	6 V	TO-PMOD-7 Power Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	92 %	TO-PMOD-7	4.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	Active High Enable

Catalog

1A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Key Features

• Junction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Startup Sequencing Using External Soft-Start Capacitor and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingFast Transient Response for FPGAs and ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT (42-V Maximum 3A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)Fully WEBENCH®Power Designer EnabledPerformance BenefitsLow Radiated Emissions / High RadiatedImmunityPasses Vibration Standard MIL-STD-883Method 2007.2 Condition A JESD22–B103BCondition 1Passes Drop standard MIL-STD-883 Method2002.3 Condition B JESD22–B110 Condition BElectrical Specifications6-W Maximum Total Power OutputUp to 1-A Output CurrentInput Voltage Range 4.5 V to 20 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%Junction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Startup Sequencing Using External Soft-Start Capacitor and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingFast Transient Response for FPGAs and ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT (42-V Maximum 3A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)Fully WEBENCH®Power Designer EnabledPerformance BenefitsLow Radiated Emissions / High RadiatedImmunityPasses Vibration Standard MIL-STD-883Method 2007.2 Condition A JESD22–B103BCondition 1Passes Drop standard MIL-STD-883 Method2002.3 Condition B JESD22–B110 Condition BElectrical Specifications6-W Maximum Total Power OutputUp to 1-A Output CurrentInput Voltage Range 4.5 V to 20 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%

Description

The LMZ12001EXT SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 1-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12001EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ12001EXT can accept an input voltage rail between 4.5 V and 20 V, and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ12001EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ12001EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz. The LMZ12001EXT SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 1-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12001EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ12001EXT can accept an input voltage rail between 4.5 V and 20 V, and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ12001EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ12001EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz.
