VLMU52 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K
LED UV 700MA SMD
| Part | Orientation | Wavelength | Voltage - Forward (Vf) (Typ) | Viewing Angle | Current - DC Forward (If) (Max) [Max] | Mounting Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Radiant Intensity (Ie) Min @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|

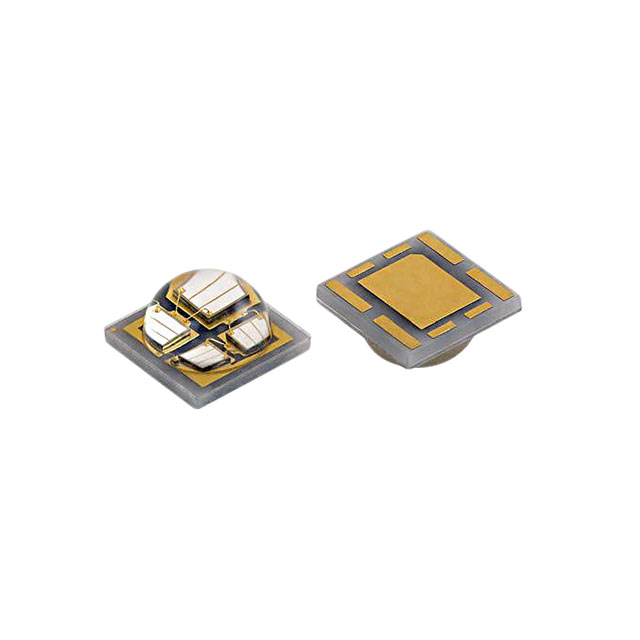

 Vishay Semiconductor Opto Division | Top View | 395 nm | 14.5 V | 140 ° | 700 mA | Surface Mount | Ultraviolet (UV) | 85 C | -40 ¯C | 4-SMD No Lead Exposed Pad | |

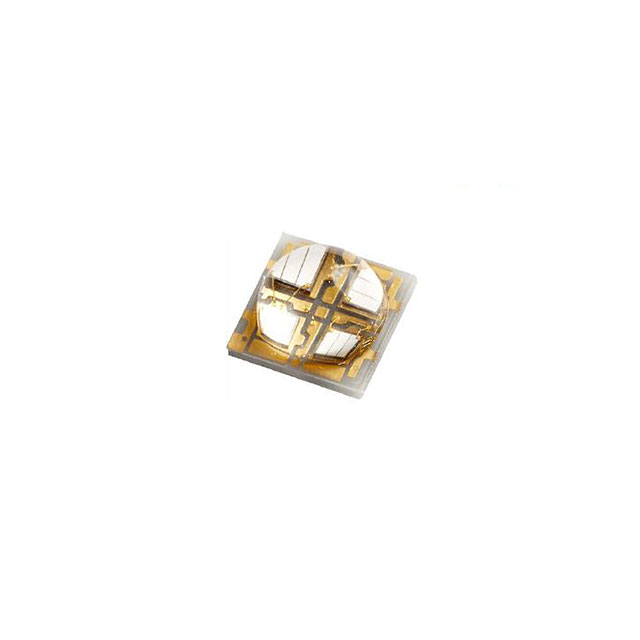

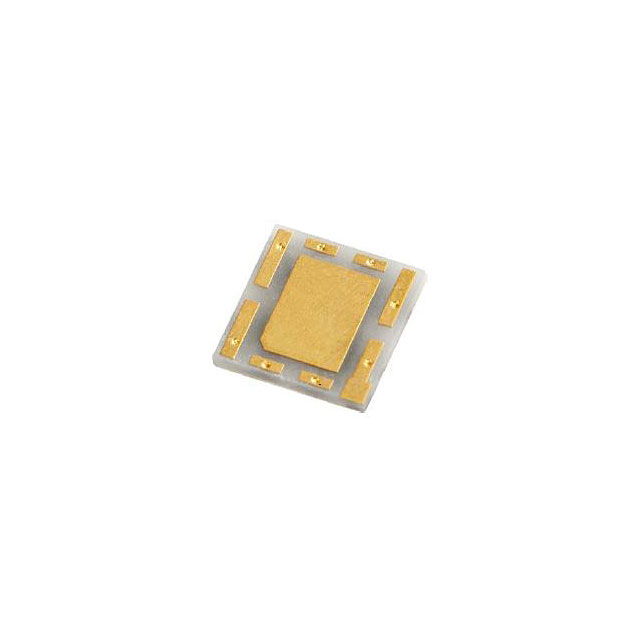

 Vishay Semiconductor Opto Division | Top View | 385 nm | 14.5 V | 140 ° | 700 mA | Surface Mount | Ultraviolet (UV) | 85 C | -40 ¯C | 4-SMD No Lead Exposed Pad | 513 mW/sr |
Vishay Semiconductor Opto Division | Top View | 405 nm | 14.5 V | 140 ° | 700 mA | Surface Mount | Ultraviolet (UV) | 85 C | -40 ¯C | 4-SMD No Lead Exposed Pad |
